Standard vs PA+LNA

A standard board transmits at about 0 dBm with a PCB antenna and suits short indoor links. A PA+LNA board adds a power amplifier and low-noise amplifier (roughly +20 dBm on the best ones) for many times the range, at the cost of much higher transmit current.

Antenna Type

PCB trace antennas are compact and free. SMA connectors let you fit a proper 2.4GHz whip or a directional antenna and move it away from metal enclosures. IPEX (u.FL) sits in between for compact builds.

Clean 3.3V Power

The number one cause of “it doesn’t work” is a weak supply. The radio needs 1.9V to 3.6V with low ripple. A breakout adapter with an onboard regulator, or a decoupling capacitor right at the pins, fixes most failed links.

Shielding

Unshielded PA+LNA boards can pick up noise from nearby digital circuits and sometimes self-oscillate. A metal RF shield, as on the E01-ML01DP5, makes a real difference next to motors, ESCs and switching regulators.

Form Factor & Pinout

Most boards use the classic 2×4 pin header, which is not breadboard friendly. Adapters convert it to a single row. If you want zero wiring, a board with the radio built in (like the RF-Nano) is the cleanest option.

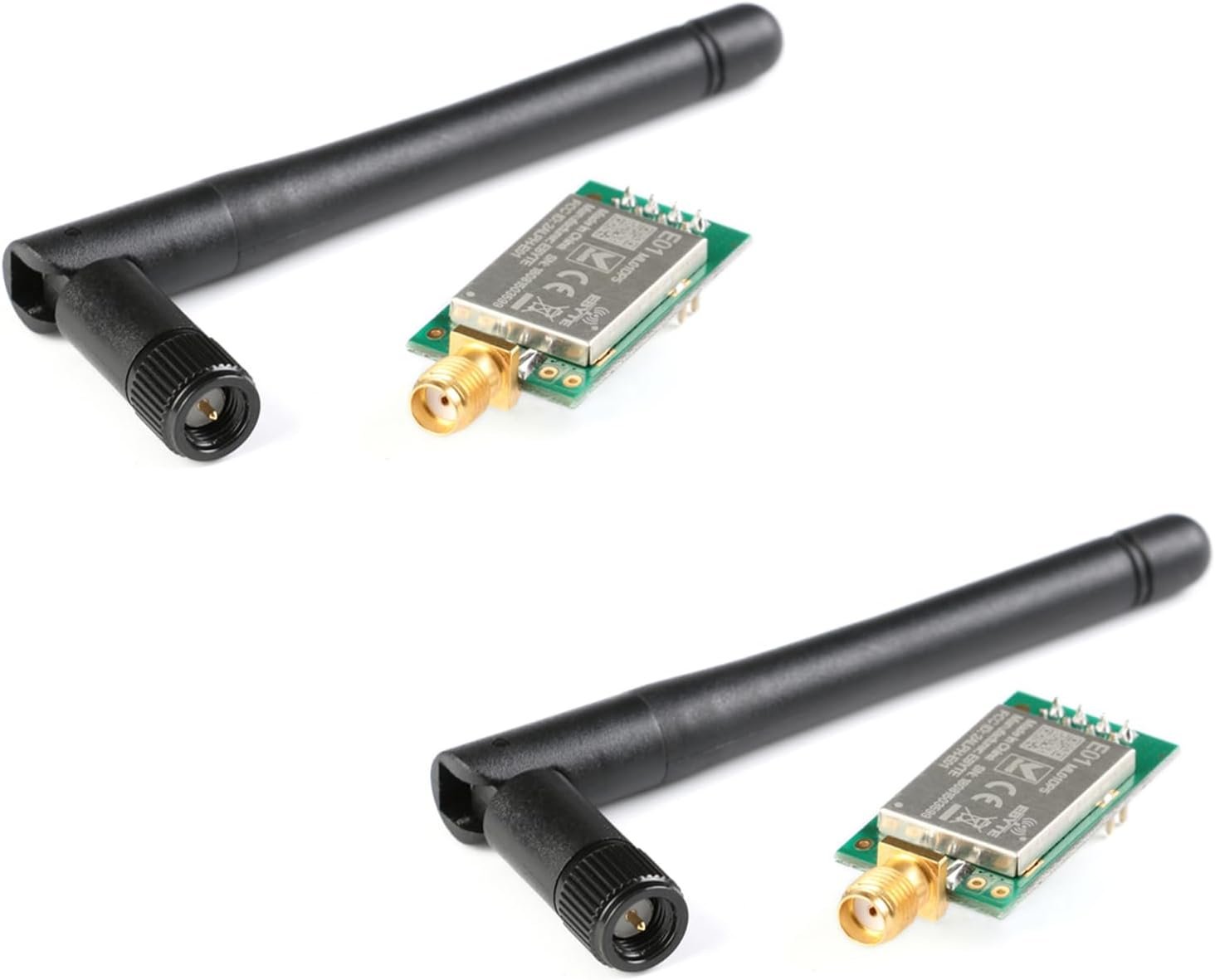

The E01-ML01DP5 is the Ebyte-designed industrial take on the PA+LNA module, sold on Amazon here by EC Buying. It is rated at 20 dBm (100 mW) output, and crucially it puts the RF section under a metal shield, which reduces interference from nearby digital circuits and makes performance more consistent from unit to unit. It has an SMA-K connector, four mounting holes and the standard nRF24 SPI pinout, so existing RF24 code runs unchanged. Choose it for drones, rovers and outdoor telemetry where motors and ESCs create a noisy environment. Note the listing’s “25 km ideal” line is marketing; plan around the ~2 km line-of-sight figure in its title, and less in practice.

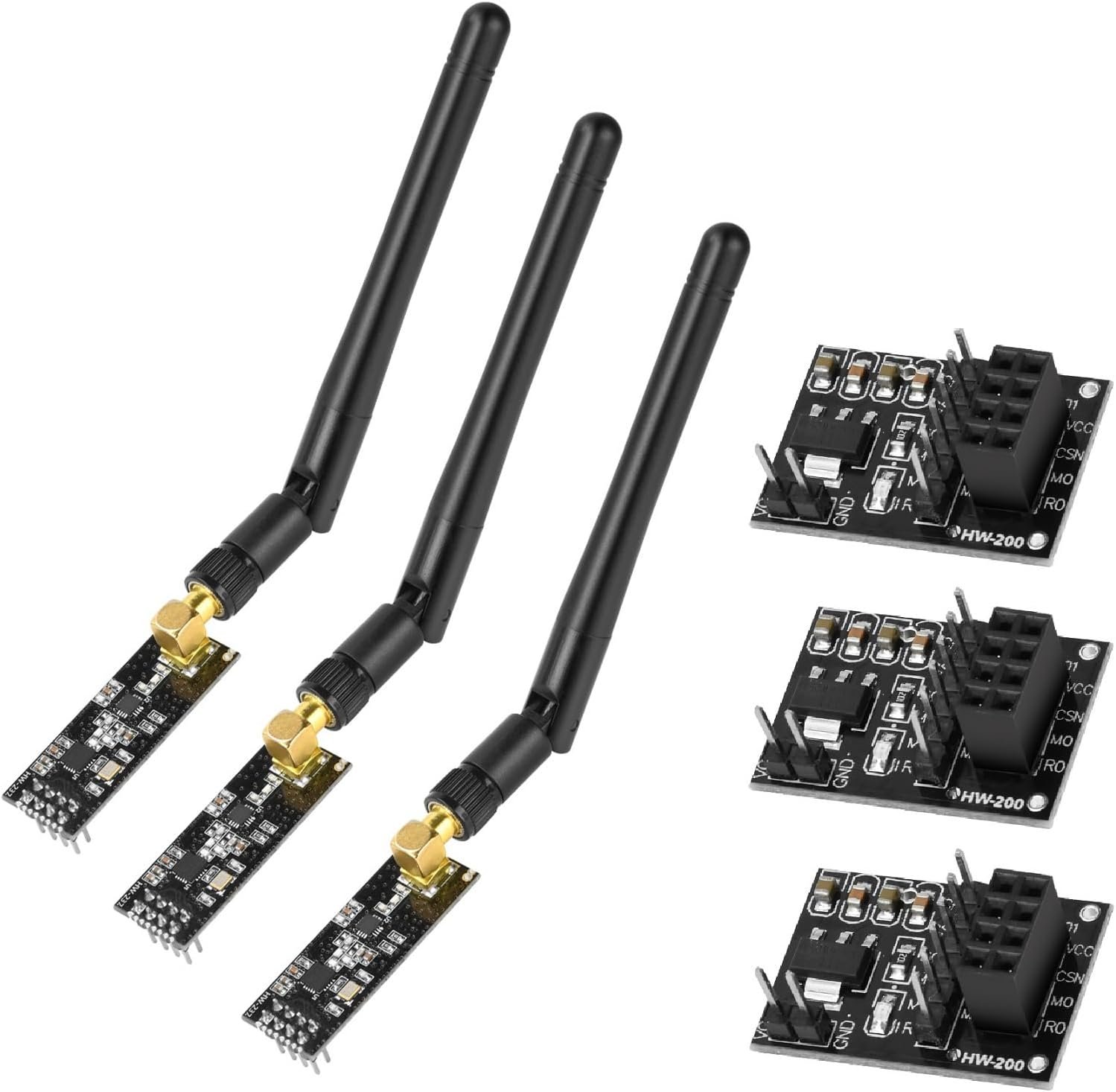

The Aideepen bundle solves the two biggest NRF24L01 headaches in one box. Each of the three PA+LNA modules comes with an 8-pin socket breakout adapter carrying an AMS1117-3.3 regulator, so you feed it the Arduino’s 5V pin and the adapter delivers clean 3.3V to the radio. The adapter also turns the awkward 2×4 header into a single row of pins with a power LED. For anyone who has fought a PA+LNA module that works on USB but fails on transmit, this is the fix built in.

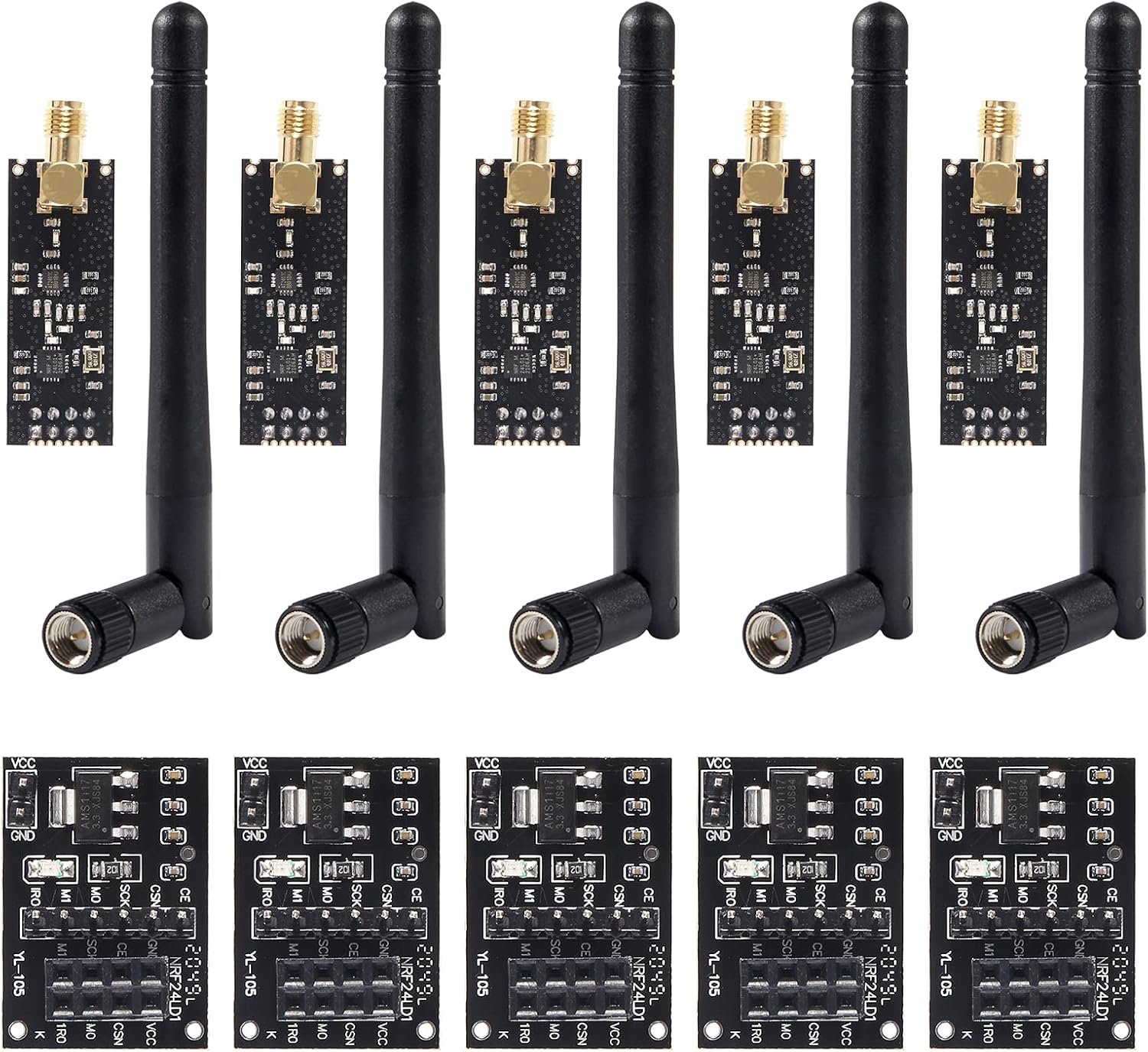

A single nRF24L01+ receiver can listen on six pipes at once, and the RF24Network and RF24Mesh libraries build tree and mesh topologies on top of that. The UMLIFE kit gives you five PA+LNA radios and five regulated breakout adapters, which is exactly what you need for a hub plus four outdoor sensor nodes, a multi-room home-automation setup or a small classroom lab. You get the same long-range hardware as the Aideepen bundle, just in a larger quantity that keeps every node identical.

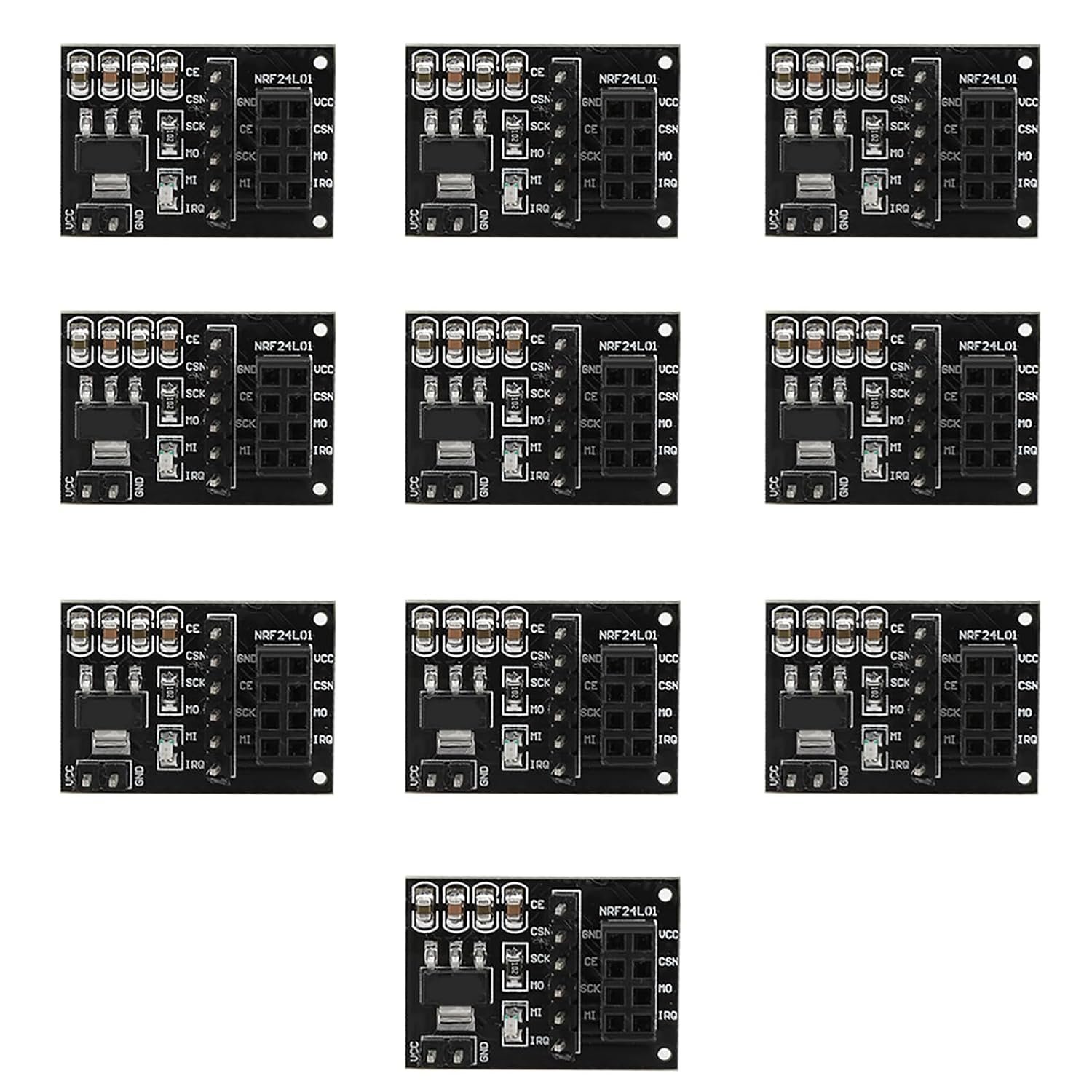

Already own a drawer of NRF24L01 modules? The ASHATA socket adapter 10-pack is the cheapest way to make them all reliable. Plug any standard or PA+LNA board into the 8-pin socket, power the adapter from 5V, and it supplies regulated 3.3V to the radio while breaking the SPI lines (CE, CSN, SCK, MOSI, MISO, IRQ) out to a single row. Ten adapters means every node in your workshop can have one. It is a simple board with no radio of its own, so you still need the modules separately.

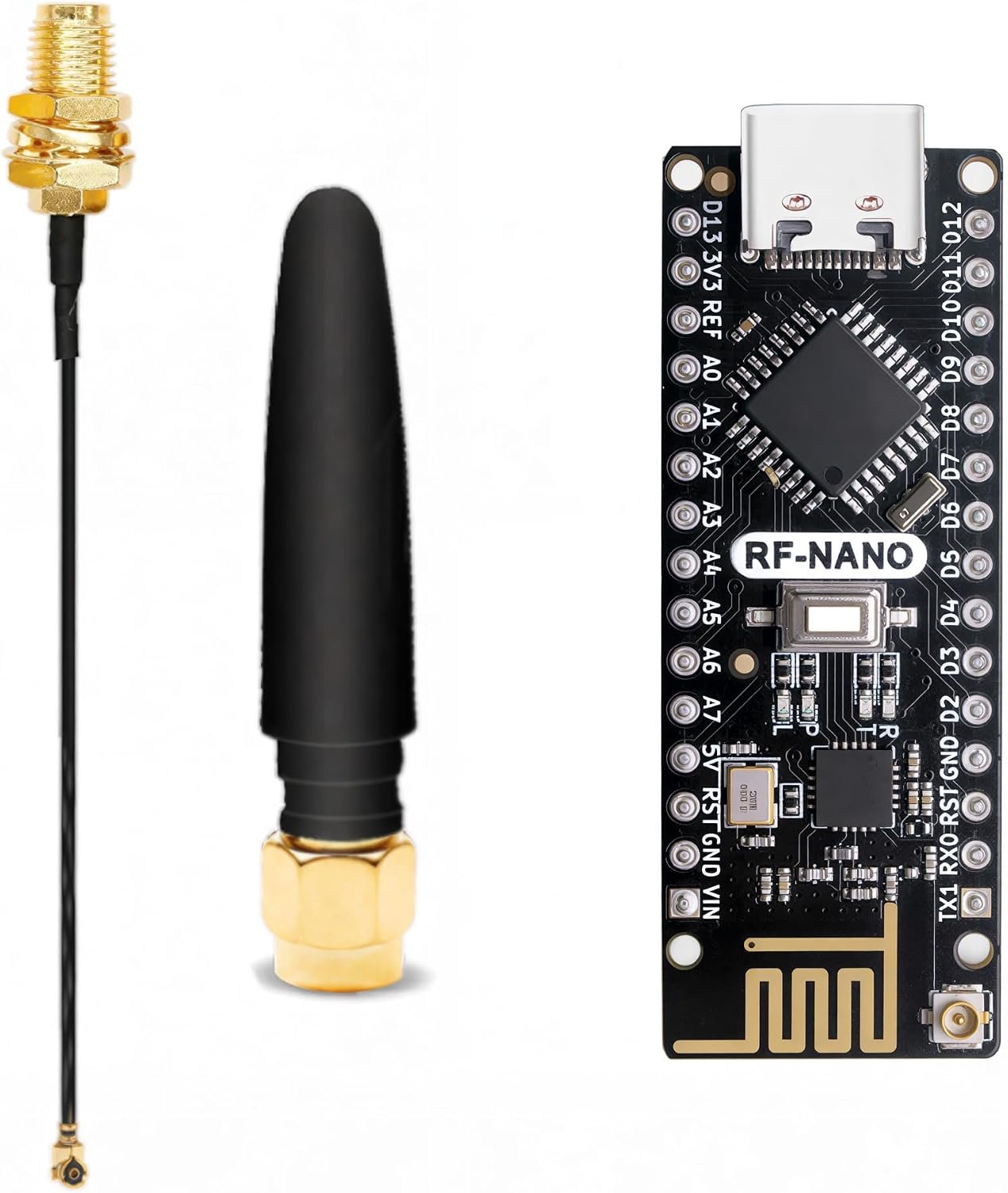

The RF-Nano puts an nRF24L01+ radio directly on an Arduino Nano-footprint board with an ATmega328PB and a USB-C port. There are no jumper wires, no separate regulator and no loose SPI connections, which removes the most common failure points in one go. This kit ships with a 3dBi external antenna on an IPEX connector (the board defaults to IPEX; switching to the onboard antenna means moving a 0Ω resistor). The seller quotes modest ranges of about 11 ft on the onboard antenna and about 100 ft with the external one, so treat it as a compact short-to-medium range node. It is a newer listing with only a handful of reviews so far.

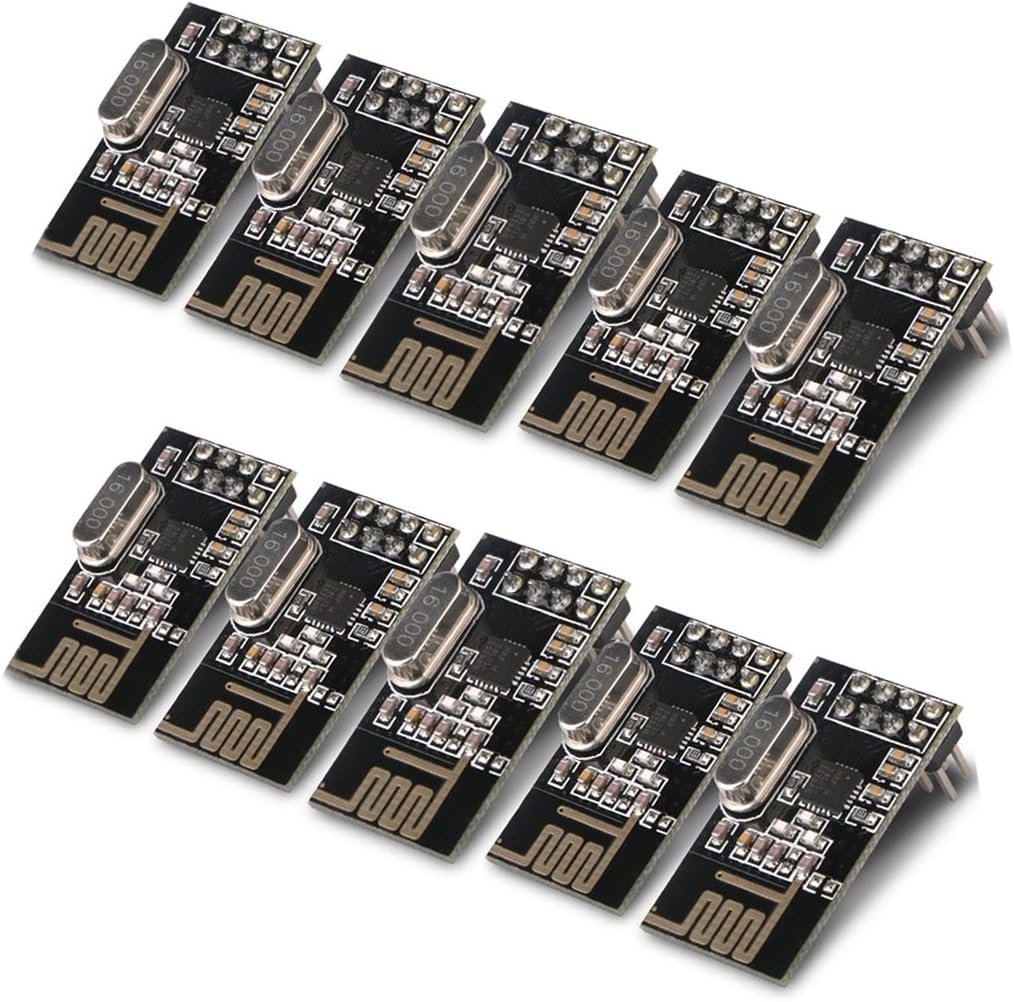

For classrooms, workshops or anyone deploying lots of short-range nodes, the MakerFocus 10-pack is the bulk buy with the longest track record. It is the same compact 15×29mm PCB-antenna nRF24L01+ board as our Best Value pick, just in a larger quantity and backed by one of the biggest review counts among NRF24L01 listings on Amazon. It works with Arduino and Raspberry Pi through the standard RF24 library, and ten modules let a whole class pair up or let you scatter sensor nodes around a house.

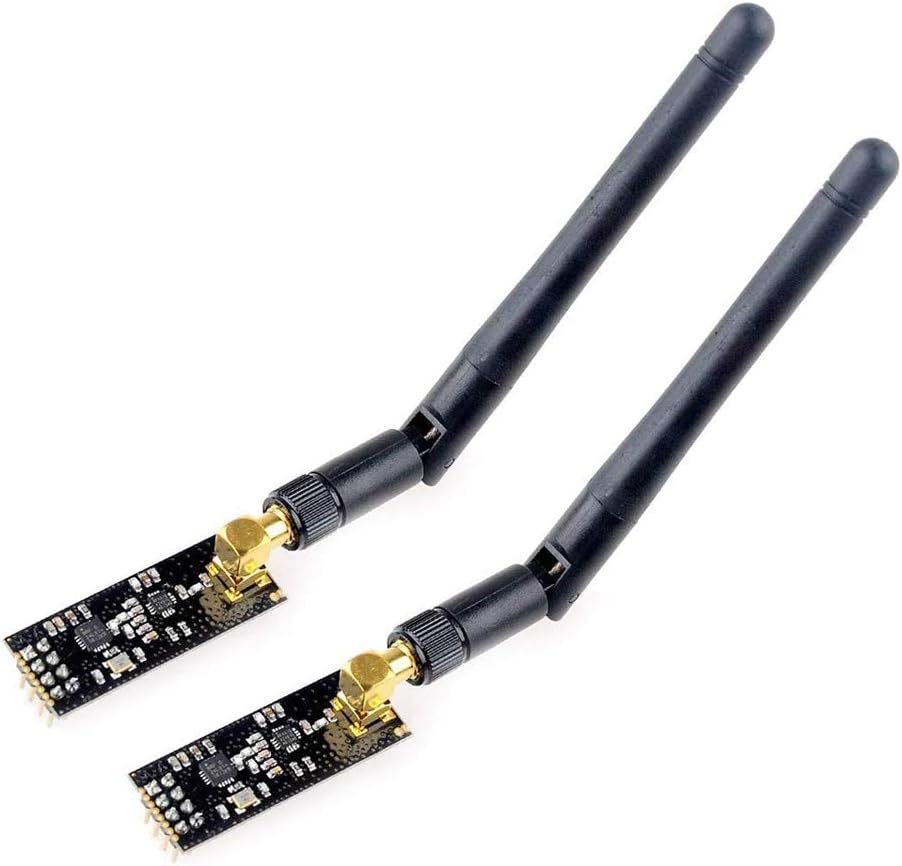

Need range across a yard or field?

Get the HiLetgo NRF24L01+PA+LNA with its SMA antenna, and run it at 250kbps for maximum distance.

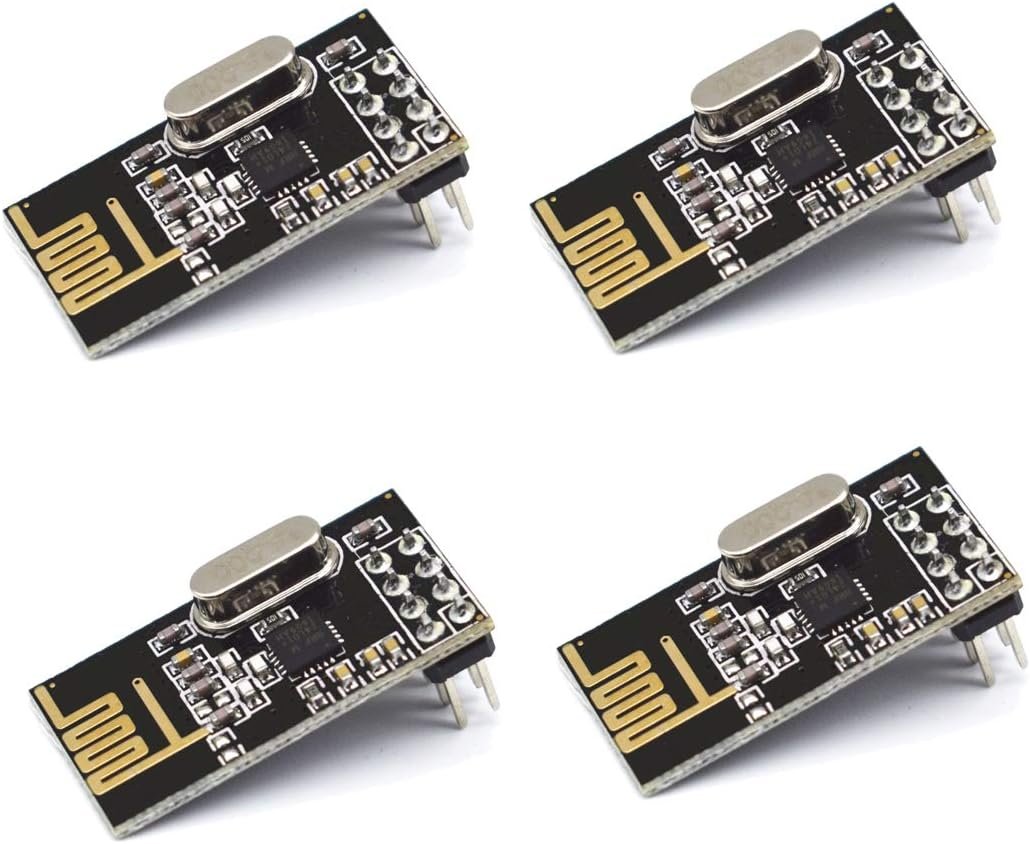

Learning on a budget?

Start with the HiLetgo NRF24L01+ 4-pack. Cheap, low power and ideal for your first transmitter and receiver sketch.

Drone, rover or noisy environment?

The shielded E01-ML01DP5 holds up far better next to motors, ESCs and switching regulators.

Using an Arduino Uno?

Pick the Aideepen bundle so every radio gets a regulated 3.3V adapter powered from the Uno’s 5V pin.

Building a sensor network or mesh?

The UMLIFE 5-pack kit gives five matched long-range nodes ready for RF24Network or RF24Mesh.

Hate jumper wires?

The RF-Nano has the radio built onto a Nano-sized board with USB-C. Plug in and upload.

What is the difference between NRF24L01 and NRF24L01+PA+LNA?

Both use the same nRF24L01+ transceiver and the same SPI commands, so your code does not change. The PA+LNA version adds a power amplifier on transmit, a low-noise amplifier on receive, an RF switch and an external SMA antenna. That dramatically increases range, but it also raises transmit current well above the basic board’s roughly 11mA to 12mA, which is why PA+LNA modules are far more sensitive to weak 3.3V supplies. Use the basic board for short indoor links and battery nodes, and PA+LNA when you need distance.

Why does my NRF24L01 not work or keep failing to send?

Power is the culprit most of the time. The Arduino Uno’s onboard 3.3V rail cannot always supply the transmit current spikes, especially for PA+LNA modules. Solder a 10µF to 100µF electrolytic capacitor directly across VCC and GND on the module, or use a breakout adapter with its own regulator. Also check the CE and CSN pins match your sketch, keep jumper wires short, set both ends to the same channel, address and air rate, and try radio.setPALevel(RF24_PA_LOW) when two PA+LNA modules sit close together, because they can overload each other’s receiver.

Can I connect an NRF24L01 directly to a 5V Arduino?

The data pins (SCK, MOSI, MISO, CE, CSN) are 5V tolerant, so you can wire them directly to an Uno or Nano. The VCC pin is not. It must be powered from 1.9V to 3.6V, and applying 5V will usually destroy the module. A socket adapter with a 3.3V regulator, like those in the Aideepen and UMLIFE kits or the ASHATA 10-pack, lets you power everything from the 5V pin safely. On ESP32, STM32 and Raspberry Pi everything is 3.3V already, so you only need a good supply and decoupling capacitor.

How far can an NRF24L01 really transmit?

Seller figures of 1100m or 2000m are line-of-sight best cases at 250kbps with both antennas elevated. In practice, a basic PCB-antenna board typically manages a few tens of metres indoors, while a PA+LNA module with a proper antenna can cover a house and garden and, outdoors with clear line of sight, several hundred metres. To maximise range, use the lowest air rate (RF24_250KBPS), set the PA level high, pick a channel above Wi-Fi’s busiest frequencies (for example channel 100 or higher), keep antennas vertical and away from metal, and power the module from a clean supply.

Should I use NRF24L01, LoRa or ESP-NOW?

Use the NRF24L01 when you want cheap, low-latency, relatively high-throughput links between small microcontrollers such as an Arduino, especially for remote controls, robots and multi-node sensor networks. Choose LoRa (SX1278/SX1276) when you need kilometres of range through obstacles and only send small packets occasionally. If both ends are ESP32 or ESP8266 boards, ESP-NOW gives you a similar peer-to-peer link with no extra hardware at all. Many projects combine them: NRF24L01 nodes reporting to an ESP32 gateway, for example.
