LED Density (LEDs/m)

30 LED/m is cheap and low-power, 60 LED/m is the all-rounder, and 144 LED/m gives a seamless, dot-free line for props, wearables and short accent strips. Higher density means more current and more pixels to refresh.

IP Rating

IP30 is a bare strip with adhesive, best indoors. IP65 adds a silicone coating, and IP67 puts the strip in a silicone tube for outdoor, kitchen and bathroom use. Waterproofing makes cutting and heat dissipation harder.

Power Budget

Plan roughly 60 mA per pixel at full white (20 to 40 mA in real animations). Use a 5V supply sized with headroom, inject power every 1 to 2 m on dense strips, and always share ground with your microcontroller.

RGB vs RGBW

Classic WS2812B mixes white from red, green and blue, which looks slightly bluish. SK6812 RGBW adds a dedicated white chip for clean, efficient white light, and uses a 4-byte colour format in FastLED/NeoPixel code.

Form Factor

Strips are for lines and edges, rings for clocks, indicators and lamps, matrices for text and pixel art, and loose pixels for custom PCBs, letters and shapes. All speak the same single-wire protocol.

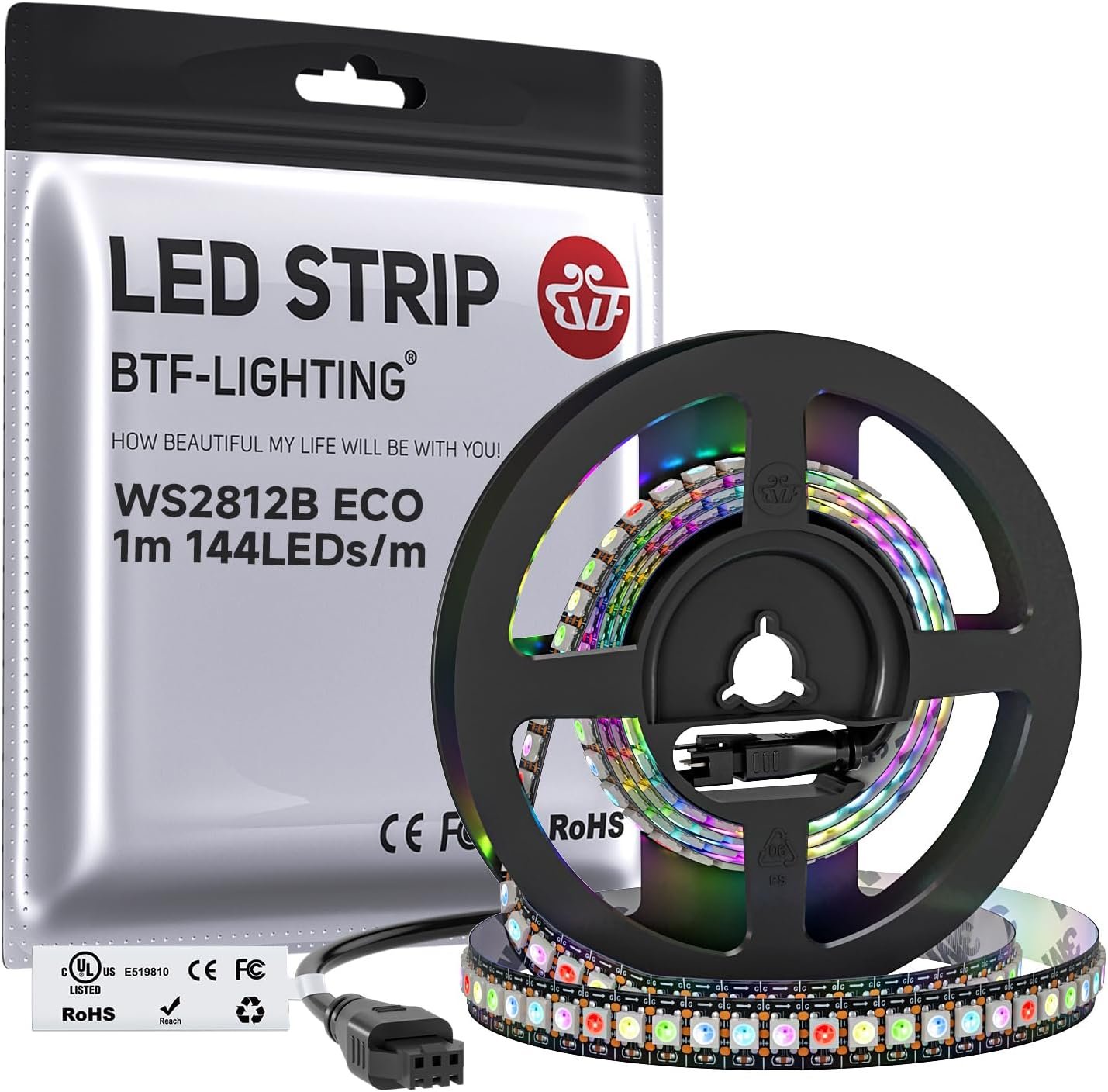

At 144 LEDs per metre the pixels sit almost edge to edge, giving a continuous line of light instead of visible dots. That makes this BTF-LIGHTING strip the go-to for lightsabers, cosplay armour, wearable props, POV displays and short accent strips where smooth gradients matter. The black PCB disappears against dark enclosures. Density has a cost: a full metre can draw over 8 A at full white, so feed power at both ends and keep brightness capped in code.

👉 Check Price on Amazon →

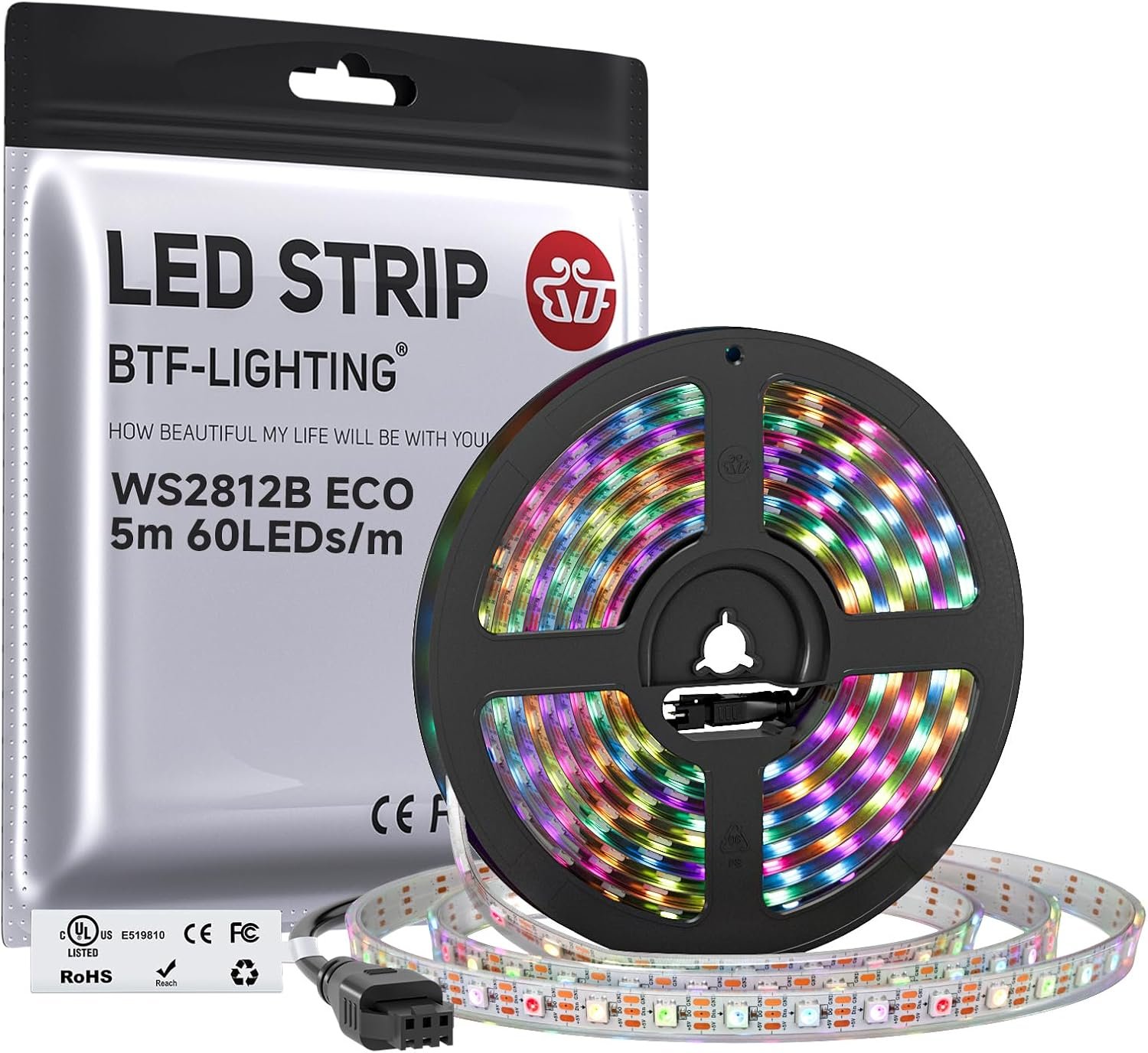

This is the same proven BTF-LIGHTING 5m, 60 LED/m reel, sealed inside an IP67 silicone tube for outdoor eaves, garden paths, holiday displays, boats and bathrooms. The tube protects against rain and splashes but adds bulk and makes cuts slightly more work, since you’ll need to reseal the ends with silicone and end caps. Note that IP67 versions mount with clips rather than adhesive. Treat the power supply and controller as the weak link outdoors and house them in a weatherproof box.

👉 Check Price on Amazon →

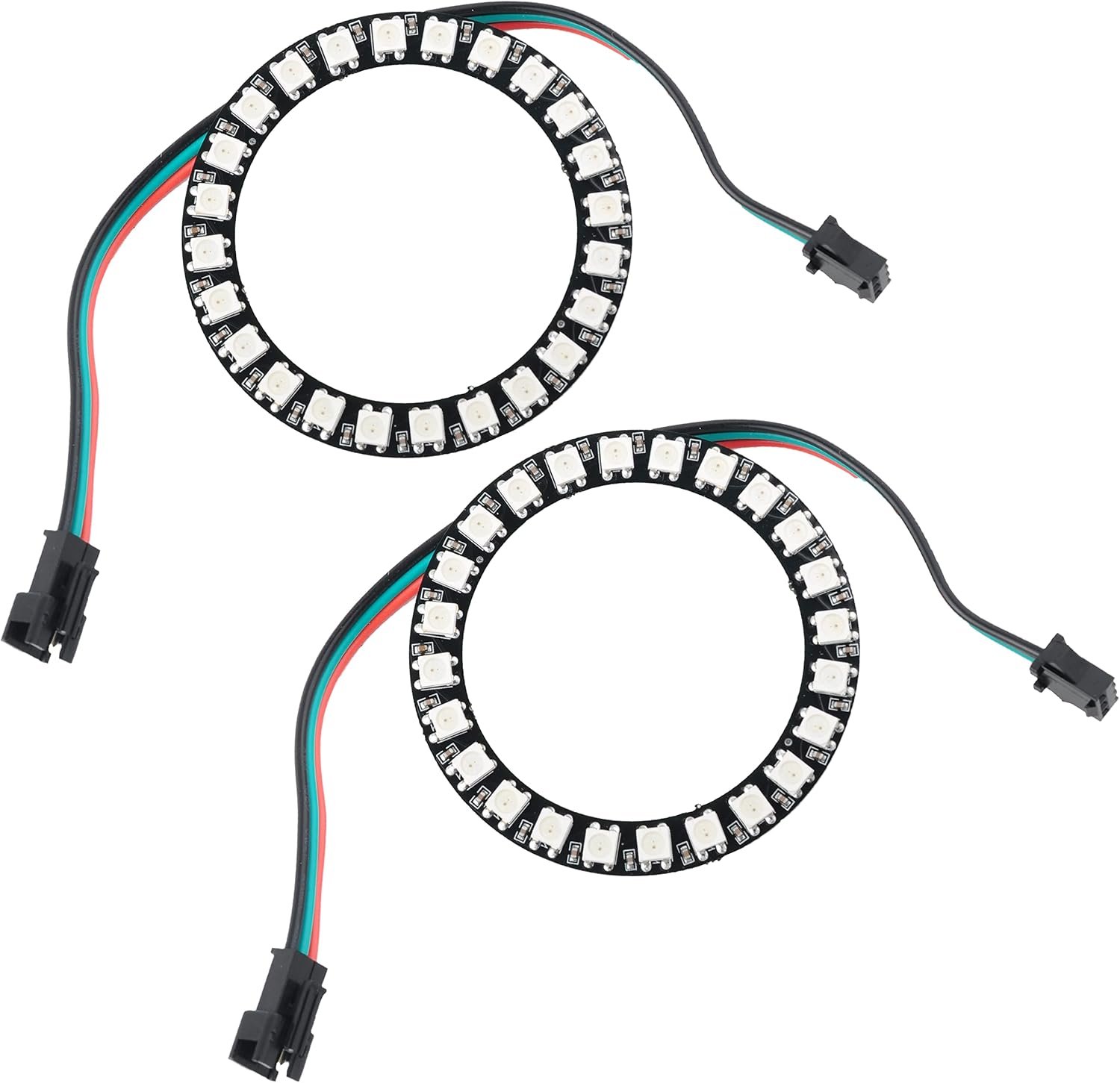

Rings are the classic NeoPixel form factor for clocks, status indicators, lamp shades, camera ring lights and robot “eyes”. This DIYmall two-pack of 24-LED WS2812B rings arrives with leads attached, so you can wire it to an Arduino, ESP8266 or Raspberry Pi in minutes. Twenty-four pixels map neatly to hours or to 15° steps, which makes it perfect for clock faces and rotating spinner animations. Chain both rings for 48 pixels on one data pin.

👉 Check Price on Amazon →

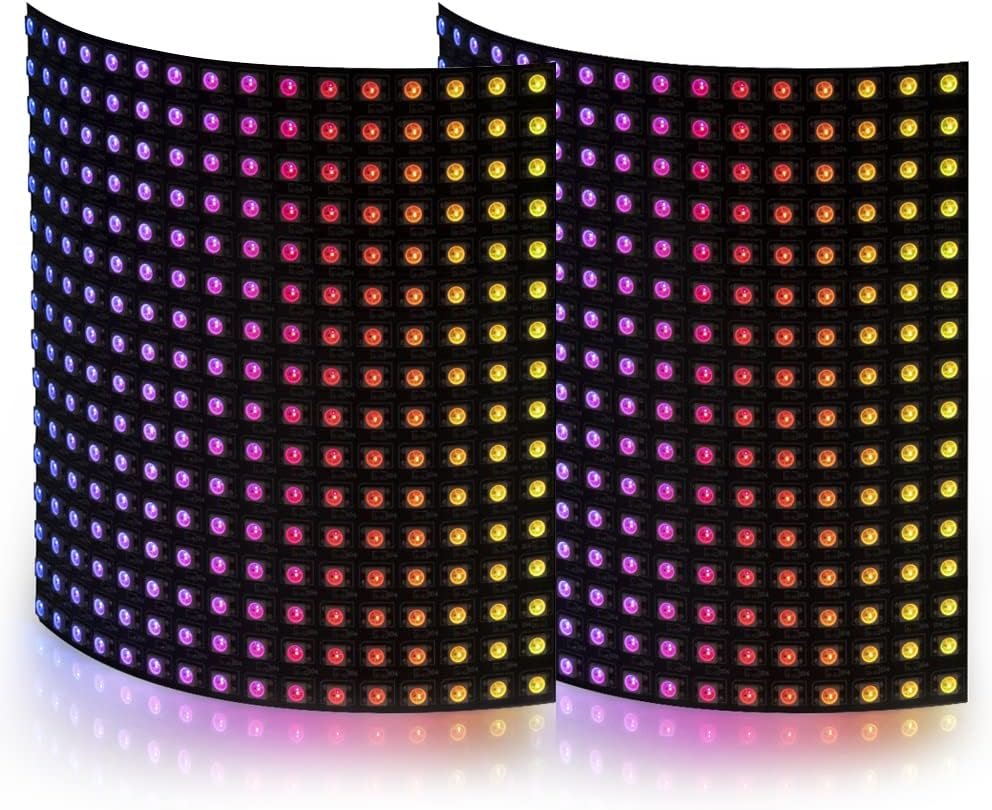

Need a square canvas for pixel art, GIF animations, game-of-life or a Tetris clone? This BTF-LIGHTING two-pack of 16×16 WS2812B matrices gives you 512 pixels in total. Use them as two separate displays or tile them into a 16×32 panel. Like the 8×32, they are flexible, chainable and supported by WLED 2D, FastLED and NeoMatrix. At this pixel count you’ll want an ESP32 and a serious 5V supply, and you should set a sensible brightness limit in firmware.

👉 Check Price on Amazon →

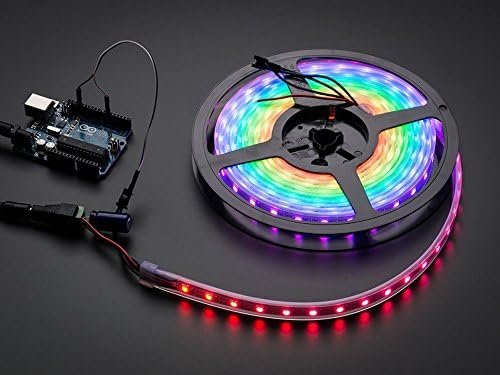

If you want the original Adafruit NeoPixel, this 1m, 60 LED weatherproof strip is it. It is the exact product used in Adafruit’s NeoPixel Uberguide, so wiring diagrams, current figures and example code all match one-to-one. It comes inside a removable IP65 silicone sleeve and is tested and documented by a company that supports open-source libraries. You pay noticeably more per pixel than for generic reels, but for classrooms, tutorials and products where consistency matters, that is the point.

👉 Check Price on Amazon →

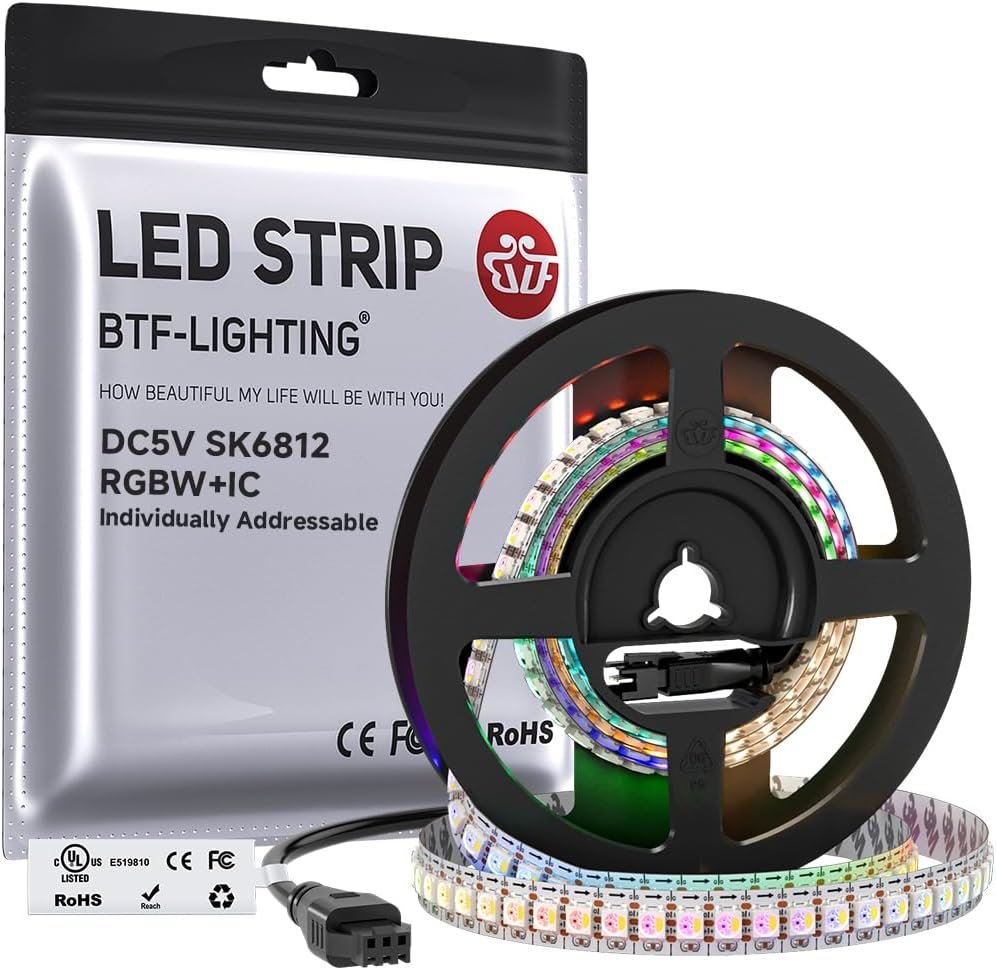

Standard WS2812B makes white by mixing RGB, which looks bluish and wastes power. The BTF-LIGHTING SK6812 RGBW strip adds a dedicated 4000K natural-white chip to each pixel, so you get clean, warm-neutral white for task lighting, under-cabinet lights and reading lamps, plus full colour effects when you want them. It uses the same single-wire protocol at 32-bit colour, and it is fully supported by Adafruit NeoPixel (use NEO_GRBW) and WLED’s RGBW mode.

👉 Check Price on Amazon →

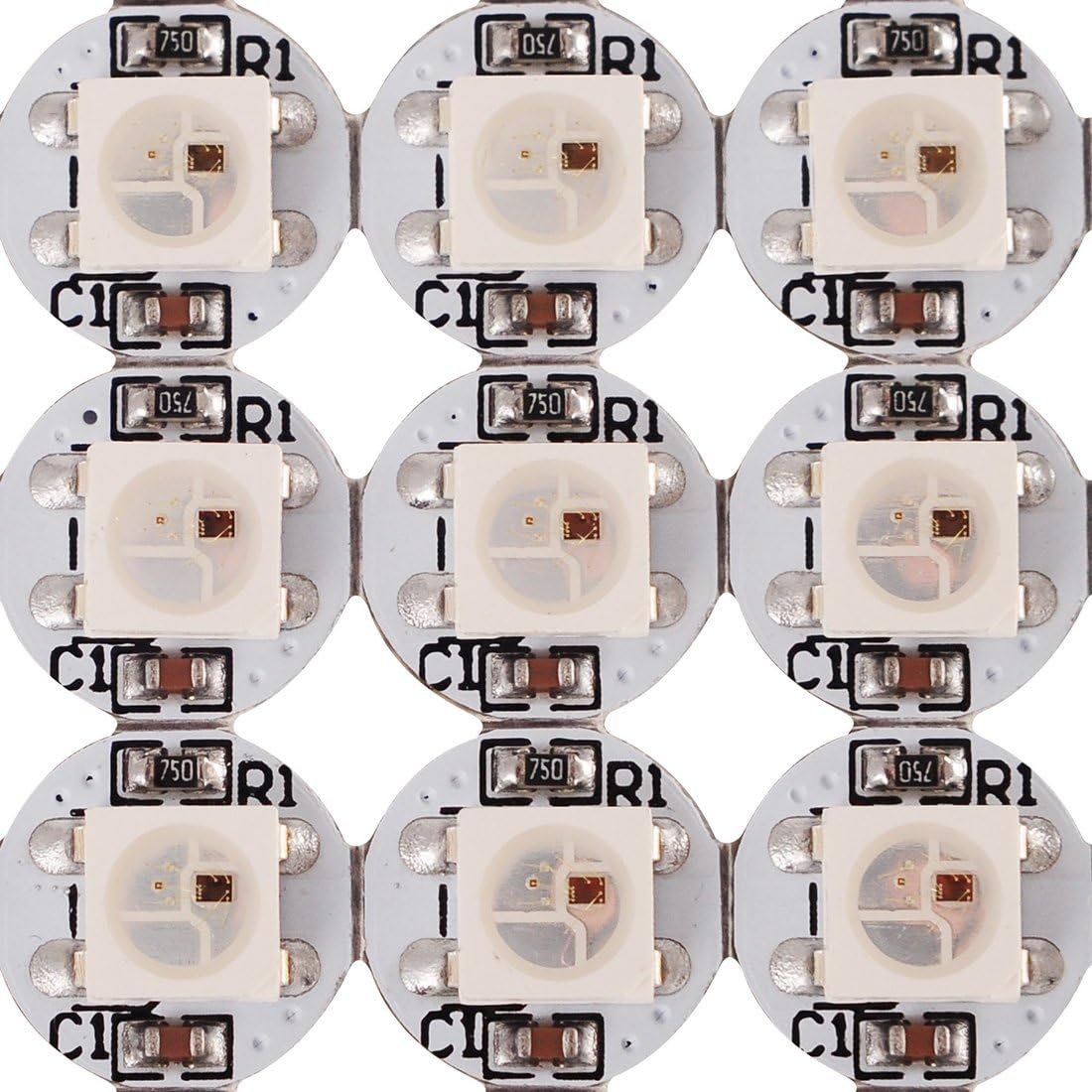

When a strip, ring or matrix doesn’t fit, use loose pixels. This BTF-LIGHTING pack gives you 100 WS2812B LEDs pre-mounted on small round heatsink PCBs with labelled 5V, GND, DIN and DOUT pads. Solder them into letters, logos, infinity mirrors, custom keyboards, model buildings or a hand-built clock face, chaining DOUT to DIN with short wires. It’s the most flexible format here, but it’s a soldering project, so allow time and add a 100nF capacitor near clusters for stability.

👉 Check Price on Amazon →

Lighting a room, desk or TV with WLED?

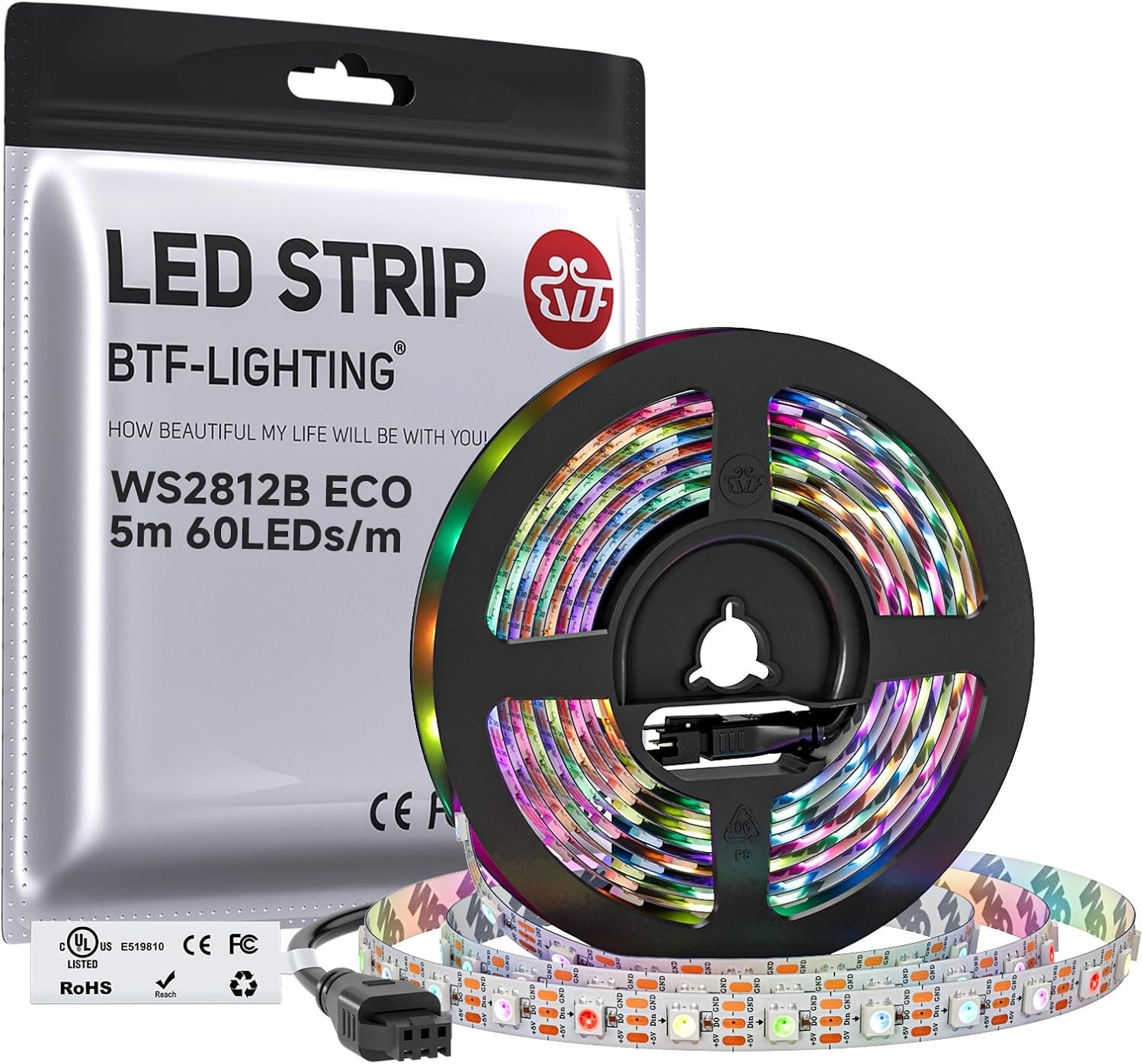

Get the BTF-LIGHTING WS2812B 5m, 60 LED/m reel and an ESP32 running WLED.

Building a scrolling sign or clock?

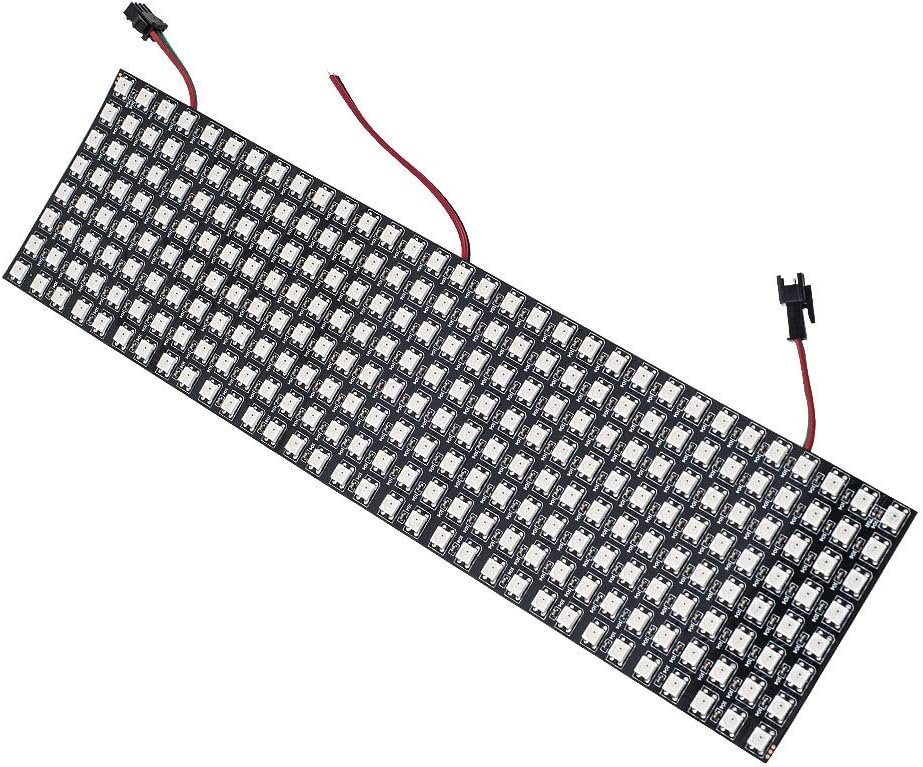

The BTF 8×32 matrix is a ready-made 256-pixel display for text and icons.

Making props, cosplay or a lightsaber?

Use the dense 144 LED/m strip for smooth, dot-free light.

Installing outdoors?

Choose the IP67 waterproof reel and house the PSU in a sealed box.

Need a clock face or status ring?

The DIYmall 24-LED rings come pre-wired and map neatly to clock positions.

Want real white for task lighting?

Go SK6812 RGBW for a dedicated 4000K white chip in every pixel.

What’s the difference between WS2812B and NeoPixel?

NeoPixel is Adafruit’s brand name for addressable LEDs that use WS2812B, SK6812 and similar driver ICs. Electrically they are the same thing: a 5V, single-wire, 800 kHz protocol with the driver inside each LED. Any WS2812B strip works with the Adafruit NeoPixel library, FastLED or WLED. Genuine Adafruit NeoPixels cost more but come with tight quality control and official documentation.

How do I power a WS2812B strip safely?

Use a dedicated 5V supply sized for your pixel count. A good rule is about 60 mA per pixel at full white, so 60 pixels need up to 3.6 A and 300 pixels up to 18 A, although typical animations use far less. Add a 1000 µF capacitor across the strip’s power input, connect the PSU ground to your microcontroller ground, and inject power at both ends (or every 1 to 2 m on dense strips) to avoid colour shift toward the far end. Never power more than a handful of LEDs from a board’s 5V pin.

Can I drive WS2812B LEDs from a 3.3V ESP32 or Raspberry Pi Pico?

Often yes, but it’s out of spec. WS2812B expects a logic high of about 0.7 × VDD, roughly 3.5V at 5V supply, so a 3.3V signal sits right on the edge and can cause flicker, especially with long data wires. Add a 74AHCT125 or 74HCT245 level shifter, keep the data wire short, and place a 300 to 500 Ω resistor in series with the data line near the first LED.

Should I choose 30, 60 or 144 LEDs per metre?

Use 30 LED/m for long, low-budget runs where individual dots don’t matter, such as eaves or ceiling coves. 60 LED/m is the best all-rounder for desks, TVs, shelves and most WLED installs. Choose 144 LED/m for props, wearables and short accent strips where you want a smooth, continuous line. Higher density means more current and more data, so it suits shorter lengths.

How many WS2812B LEDs can one microcontroller control?

Each pixel takes about 30 µs to update, so one data pin can refresh roughly 1,000 pixels at around 30 frames per second. Memory is the other limit: every RGB pixel needs 3 bytes of RAM (4 for RGBW). An Arduino Uno tops out at a few hundred pixels, while an ESP32 handles thousands, and WLED can drive several outputs in parallel. For large installs, split the LEDs across multiple data pins.
