📶 Best Z-Wave Repeaters and Range Extenders
The two dedicated Z-Wave range extenders you can buy on Amazon today, the Aeotec Range Extender 7 and the Ring Alarm Range Extender (2nd Gen), compared head to head for Home Assistant, Hubitat, SmartThings and Ring Alarm users, with real specs, honest verdicts and direct Amazon links.
Z-Wave is a mesh network: when a sensor, lock or thermostat is too far from your hub to talk to it directly, its message hops through other Z-Wave devices on the way. A Z-Wave repeater or range extender is a small mains-powered device whose only job is to relay those messages. Plug one in at the right spot and the basement sensor that kept dropping offline, the smart lock that took seconds to respond, or the leak sensor at the far end of the house starts reporting instantly and reliably.
Plenty of Z-Wave devices repeat as a side job, but a dedicated range extender is different: it has no load to switch, so nobody turns it off by accident, it draws very little power, and it sits quietly in an outlet forever. On Amazon today, the field of genuine dedicated Z-Wave extenders has shrunk to two models: the Aeotec Range Extender 7 for most hubs and the Ring Alarm Range Extender (2nd Gen) for Ring Alarm systems. This guide compares them on what matters for network health: Z-Wave generation, security, battery backup, size, placement and hub compatibility.
📶 Quick Comparison: Aeotec Range Extender 7 vs Ring Alarm Range Extender
Both extenders require a Z-Wave controller. Tap Buy Here to see the live price on Amazon.
🔍 What to Look for in a Z-Wave Range Extender
Hub Compatibility First
This decides the choice. Ring’s extender is meant only for a Ring Alarm Base Station. Aeotec’s works with open hubs like Home Assistant, Hubitat and SmartThings and with many certified gateways and panels.
Z-Wave Generation
Newer 700 Series radios offer better range and SmartStart QR pairing than older Z-Wave Plus gear, and every generation is backward compatible, so a modern repeater helps even a network full of older devices.
Battery Backup
A repeater on mains power goes silent in a power cut, along with every sensor that routes through it. A built-in battery, like Ring’s 24-hour cell, keeps security sensors connected while your hub runs on its own backup.
Size & Placement
Pick an outlet between the hub and the trouble spot with a clear path through doorways rather than metal appliances, mirrors or foil-backed insulation. A compact body that leaves the second socket free makes good spots easier to use.
Mesh vs Long Range
Z-Wave Long Range devices connect in a star directly to an LR hub and never route through repeaters. An extender helps classic mesh devices only, so check how your far-off devices were included before buying.
🏆 Detailed Reviews: The Best Z-Wave Range Extenders
🛒 How to Choose the Right Z-Wave Range Extender
Home Assistant, Hubitat or SmartThings?

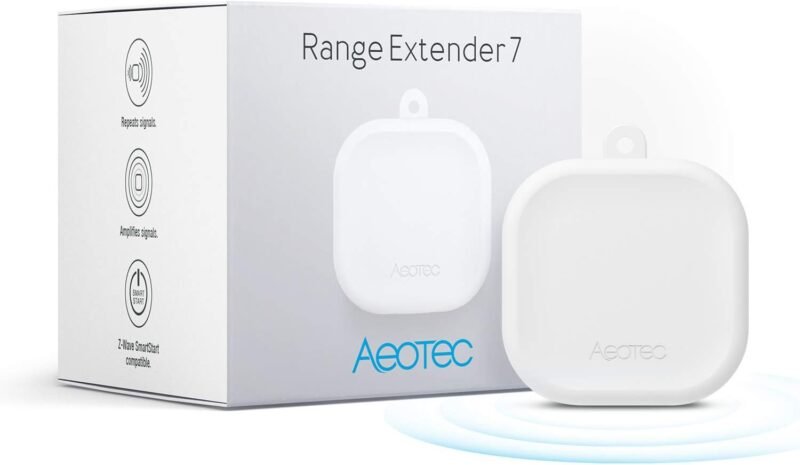

Get the Aeotec Range Extender 7. It pairs by QR code and repeats for every Z-Wave generation.
Running Ring Alarm?

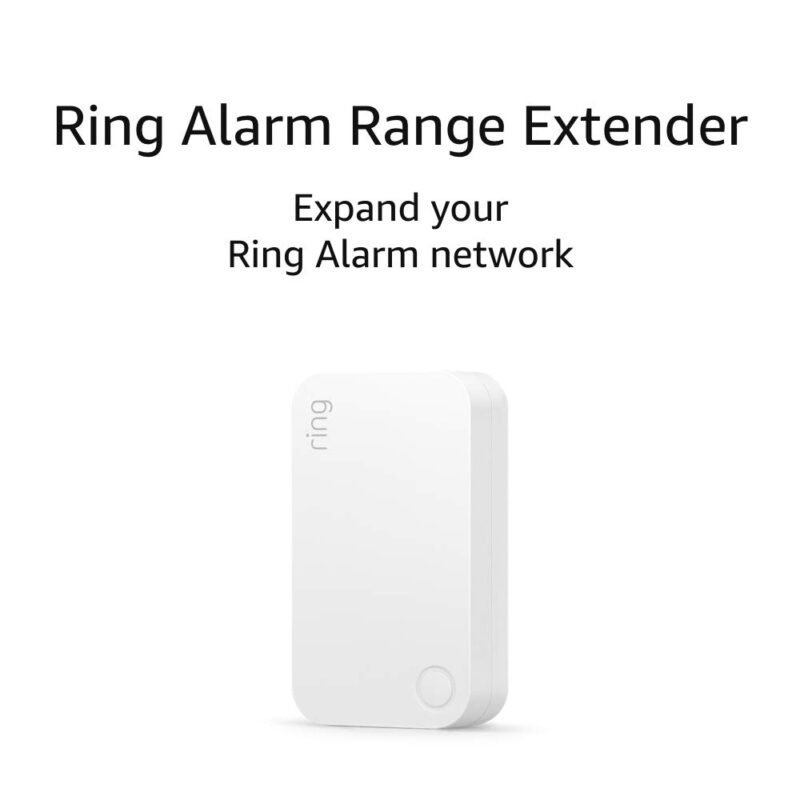

Use the Ring Alarm Range Extender for native setup and 24-hour battery backup.
Worried about power outages?
On Ring, the extender’s battery covers you. On other hubs, put the Aeotec and your hub on a small UPS.
Large or multi-floor home?
Buy two or three Aeotec units and place one per floor or wing, each within reach of the last.
⚙️ Key Specs Compared: Side by Side
Specs and review counts are taken from the live Amazon listings and manufacturer information and can change between hardware revisions. Always confirm details on the listing before buying.
❓ Frequently Asked Questions
Is a Z-Wave repeater different from a range extender?
No, the terms mean the same thing. A dedicated range extender like the Aeotec or Ring model does nothing but relay messages. Mains-powered Z-Wave plugs, switches and outlets also repeat in classic mesh mode as a side job, while battery-powered sensors, locks and remotes never repeat. If you’d rather add repeaters that also control something, see our best Z-Wave smart plugs and outlets guide.
Where should I plug in a Z-Wave range extender?
Roughly halfway between the hub (or the last working device) and the problem area, in an outlet that still has a solid signal. Avoid spots behind refrigerators, metal cabinets, mirrors or large aquariums. In multi-story homes, a stairwell or a room directly above or below the hub often works well. Start with one extender, rebuild routes, then add another only if a zone still struggles.
I added a repeater, but my sensor still uses the old route. Why?
Existing devices keep their stored routes until the network is updated. After adding an extender, run “Rebuild routes” in Home Assistant’s Z-Wave JS integration, “Repair Z-Wave” on Hubitat, or your hub’s equivalent. Battery devices only update when they wake, so press their wake or tamper button or give them a day.
Will the Ring Alarm Range Extender work with Home Assistant or Hubitat?
Ring supports it only with the Ring Alarm Base Station, and the Amazon listing says it only boosts the Ring Alarm network. It is a Z-Wave certified device and some owners report including it on other hubs, but that’s unsupported and its battery status may not appear. For an open hub, choose the Aeotec Range Extender 7.
Do Z-Wave Long Range devices need a range extender?
They can’t use one. Z-Wave Long Range is a star network where each device talks straight to an LR-capable controller and never routes through repeaters. If a Long Range device struggles, move it or the hub (or its USB stick on an extension cable), or re-include it in classic mesh mode so an extender can help. Our best Z-Wave hubs and USB sticks guide covers which controllers support LR.
🏁 Final Verdict: Best Z-Wave Range Extender for Your Hub
The right dedicated Z-Wave repeater depends on one thing: which hub you run.
If you run Home Assistant, Hubitat, SmartThings or another open Z-Wave hub, the Aeotec Range Extender 7 is the dedicated repeater to buy: small, efficient, S2 capable and compatible with every Z-Wave generation. If your controller is a Ring Alarm Base Station, the Ring Alarm Range Extender (2nd Gen) is the right choice, and its 24-hour battery keeps your security sensors online through outages. Whichever you pick, place it halfway to the trouble spot and rebuild routes afterward. Choose a controller from our best Z-Wave hubs guide, and see our best Z-Wave smart locks and best Z-Wave door and window sensors guides for devices that benefit most from a strong mesh. For more hands-on builds, explore our ESP32, Arduino and Raspberry Pi tutorials.
💬 Not sure where your range extender should go? Tell us your hub, which devices keep dropping and roughly how far they are from the hub in the comments below, and we’ll help you plan your mesh.
