Ultimate Buying Guide
🔗 Best RS485 to Ethernet Converters and Modbus Gateways
13 serial device servers that put RS485, RS232 and Modbus RTU equipment on your network: PoE and DIN-rail servers, Wi-Fi converters and professional Moxa gateways.
✅ 13 Devices Reviewed
✅ Ethernet, PoE & Wi-Fi
✅ Modbus RTU ↔ TCP
✅ Honest Pros & Cons
Energy meters, VFDs, PLCs, solar inverters, weather stations and countless industrial sensors still talk over RS485 (usually Modbus RTU) or RS232. A serial device server connects them to your Ethernet or Wi-Fi network, so a PC, Raspberry Pi, Home Assistant server or SCADA system can read them remotely. Many units also work as Modbus RTU to Modbus TCP gateways, letting Modbus TCP software poll serial devices directly.
This guide compares 13 converters and gateways on Amazon, from tiny embedded modules to DIN-rail PoE servers and Moxa’s professional line. Need an RS485 transceiver for your own microcontroller instead? See our RS485 modules guide.
💡 Reality check before you buy: Not every serial-to-Ethernet converter is a Modbus gateway. Basic models only do “transparent” TCP/UDP pass-through (one listing here explicitly says Modbus is not supported), which works with virtual COM port software but not with Modbus TCP clients. If you need RTU↔TCP translation, choose a unit that lists Modbus TCP to RTU conversion. Also check the serial interface (RS485, RS232 or RS422), isolation for noisy industrial sites, the power input (DC range or PoE), and mounting (DIN rail vs desktop).
🔗 Quick Comparison: All 13 Serial Servers and Gateways
| Device | Serial Ports | Network / Power | Best For | Buy |
|---|
| 🥇 Waveshare RS485 to PoE ETH (Rail) | RS485 | Ethernet + PoE, DIN rail | Best Overall | Buy Here → |
| 💵 USR-TCP232-410S | RS232 + RS485 | Ethernet, 5–36 V | Best Value Modbus Gateway | Buy Here → |
| 🏭 Moxa NPort 5110 | RS232 (DB9) | Ethernet | Professional COM Port | Buy Here → |
| 🔹 USR-TCP232-302 | RS232 | Ethernet | Tiny & Cheap | Buy Here → |
| 🔌 Waveshare RS232/485/422 to ETH Module | RS232/485/422 | Ethernet + PoE | Multi-Interface | Buy Here → |
| 📶 USR-W610 | RS232 + RS485 | Wi-Fi 2.4 GHz + Ethernet | Wireless Serial | Buy Here → |
| 🧰 USR-TCP232-306 | RS232/485/422 | Ethernet, 5–36 V | Budget All-Rounder | Buy Here → |
| 🗄️ USR-DR302 | RS485 | Ethernet, DIN rail | Compact Cabinet | Buy Here → |
| 🛤️ Industrial Rail Serial Server | RS485 | Ethernet, rail mount | Non-PoE Rail Option | Buy Here → |
| 📦 Waveshare RS485 to ETH (Compact) | RS485 | Ethernet (no Modbus) | Transparent Only | Buy Here → |
| 🏢 Moxa MGate MB3180 | RS232/422/485 | Ethernet | Professional Modbus Gateway | Buy Here → |
| 🔀 Waveshare 2-Ch RS485 to PoE ETH | 2× RS485, isolated | 2× Ethernet + PoE | Two Bus Lines | Buy Here → |
| 📡 RS485 to Dual-Band Wi-Fi Gateway | RS485 | Wi-Fi 2.4 + 5.8 GHz, MQTT | MQTT & 5 GHz Wi-Fi | Buy Here → |
Ports and features from each Amazon listing. Confirm Modbus gateway support on the manufacturer’s datasheet for your firmware version. Tap Buy Here to see the live price.
🔍 How to Choose a Serial Device Server
🔁
Transparent vs Modbus Gateway
Transparent mode tunnels raw serial bytes over TCP/UDP, which suits virtual COM ports. Modbus gateway mode translates Modbus TCP requests into RTU frames, so Modbus TCP clients (SCADA, Node-RED, Home Assistant) can poll RS485 devices directly.
🔌
Serial Interface
Match your devices: RS485 for most industrial buses, RS232 for older equipment and consoles, RS422 for some instruments. Multi-interface units cover all three.
⚡
Power and Isolation
PoE simplifies cabinet wiring. Wide DC input (often 5–36 V) suits 12/24 V panels. Isolated RS485 protects against ground loops and surges on long field cables.
📡
Ethernet or Wi-Fi
Wired Ethernet is more reliable for industrial use. Wi-Fi converters are handy where cabling is impractical, such as solar inverters in a garage or a meter in a remote shed.
☁️
MQTT and Cloud
Some newer gateways can poll Modbus devices themselves and publish values over MQTT, which is useful for Node-RED, Home Assistant or IoT clouds without extra software.
🏆 Detailed Reviews: All 13 Devices
🥇 BEST OVERALL
Waveshare Industrial RS485 to PoE Ethernet Serial Server
⭐ 4.5/5 · DIN-Rail, PoE, IoT Gateway
Buy on Amazon →
Waveshare’s industrial RS485 to Ethernet serial server is the best all-round pick, averaging about 4.3 stars from 96 ratings. This hardware-upgrade version is PoE-powered (with electrical isolation per the listing) and rail-mounts in a cabinet. It’s designed as an RS485 data acquisitor and IoT gateway. Waveshare’s documentation for this series covers TCP/UDP modes and Modbus TCP-to-RTU operation, so it works with SCADA, Node-RED and Home Assistant setups. It’s well documented and inexpensive for an industrial-style unit.
✅ Pros- PoE power
- DIN rail mounting
- IoT gateway features
- Good documentation
❌ Cons- RS485 only
- Configure via web/tool
🎯 Verdict: The best value industrial RS485 server.
👉 Check Price on Amazon →
💵 BEST VALUE MODBUS GATEWAY

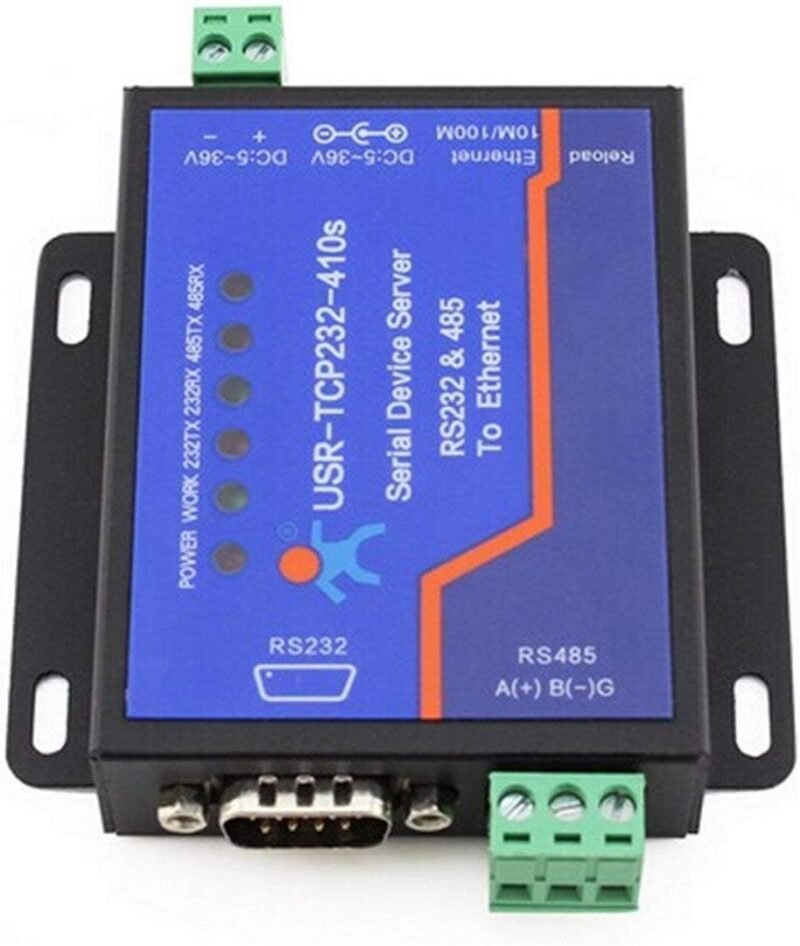

The USR-TCP232-410S is a popular dual-port server with both RS232 and RS485, a Cortex-M4 120 MHz CPU, and configuration through a web browser or virtual COM software. A separate listing of the same model describes Modbus RTU to Modbus TCP gateway operation, simultaneous use of both serial ports and redundant power input (5–36 V DC or terminal). It averages about 4.4 stars from 86 ratings, making it an excellent low-cost gateway.
✅ Pros- RS232 and RS485
- Modbus gateway
- Wide DC input
- Great value
❌ Cons- No PoE
- Desktop form factor
🎯 Verdict: The best budget Modbus gateway.
👉 Check Price on Amazon →

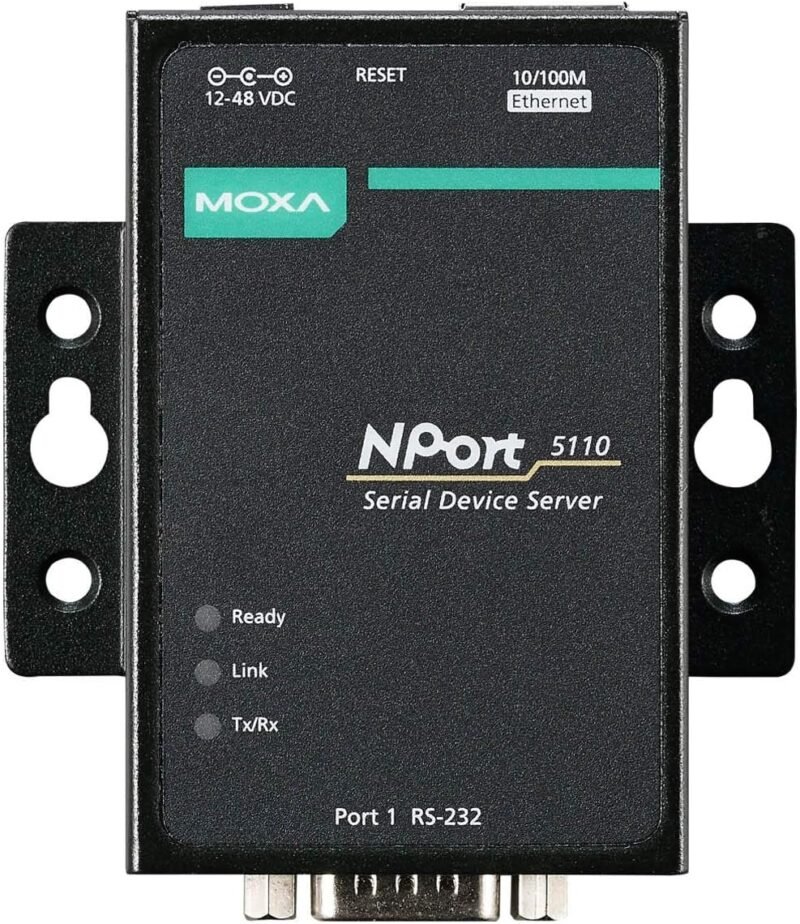

🏭 PROFESSIONAL COM PORT · ⭐ 4.7/53. Moxa NPort 5110
1-port RS232 (DB9) · Real COM drivers · 70 ratings
Buy Here →
Moxa is the industrial standard for serial device servers. The NPort 5110 is a compact one-port RS232 server with Real COM and TTY drivers for Windows, Linux and macOS, so legacy software sees a normal COM port over the network. It’s the highest-rated unit here, about 4.7 stars from 70 ratings. For RS422/485, look at the NPort 5150.
✅ Pros: Rock-solid drivers; trusted brand.
❌ Cons: RS232 only; premium price.
🎯 Verdict: When reliability matters most.

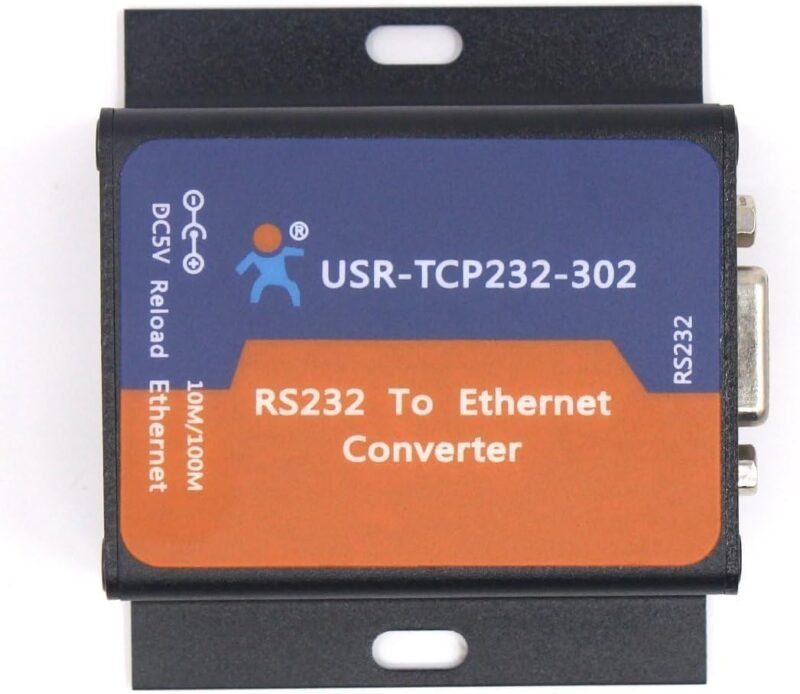

🔹 TINY & CHEAP · ⭐ 4.0/54. USR-TCP232-302
RS232 to Ethernet · DHCP/DNS · 237 ratings
Buy Here →
The most-reviewed product here (237 ratings, about 4.0 stars): a tiny, low-cost RS232 to Ethernet converter with DHCP and DNS support. It’s ideal for networking a single RS232 instrument, printer or console. You’ll need an RS485 adapter for RS485 devices.
✅ Pros: Tiny; cheap; popular.
❌ Cons: RS232 only; basic.
🎯 Verdict: The cheapest way onto Ethernet.

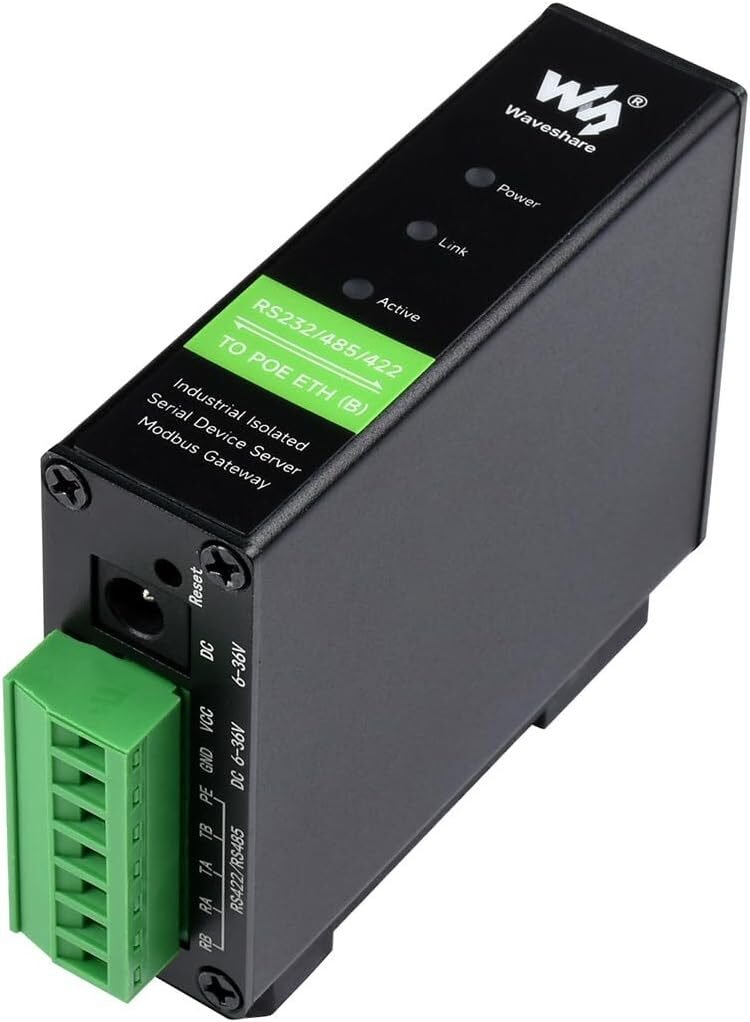

🔌 MULTI-INTERFACE · ⭐ 4.3/55. Waveshare RS232/485/422 to Ethernet Module
RS232/485/422 · PoE · 134 ratings
Buy Here →
One box covering RS232, RS485 and RS422 with an Ethernet port supporting PoE, designed as a device data acquisitor and IoT gateway. It’s a flexible choice when your site mixes serial standards. It averages about 4.2 stars from 134 ratings.
✅ Pros: Three interfaces; PoE.
❌ Cons: One port active at a time.
🎯 Verdict: The do-it-all module.

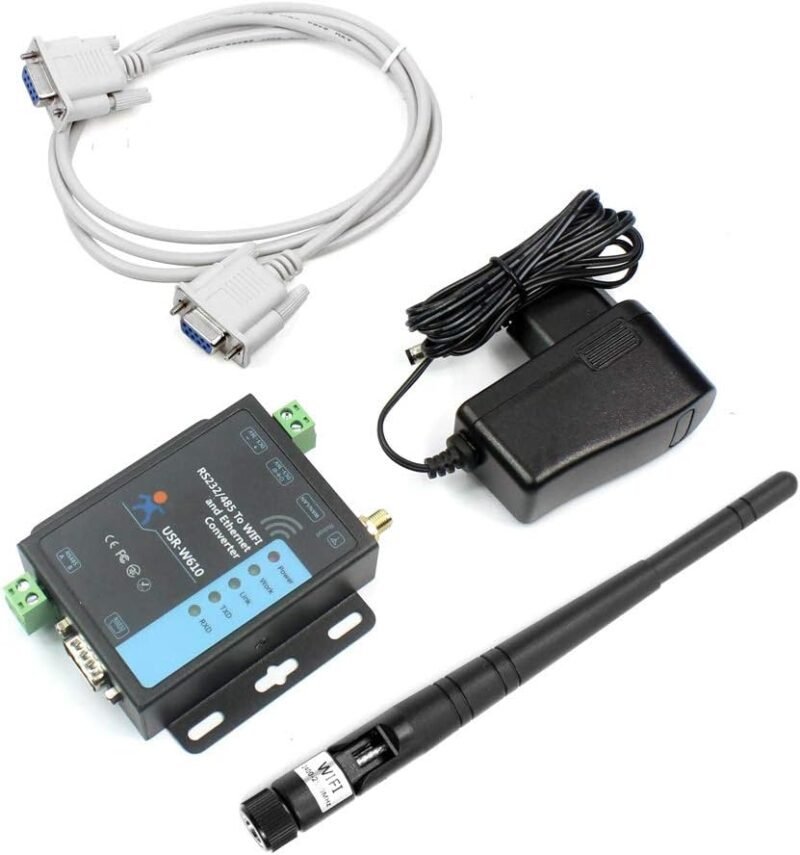

📶 WIRELESS SERIAL · ⭐ 4.3/56. USR-W610 Serial to Wi-Fi/Ethernet
RS232 + RS485 · Wi-Fi 2.4 GHz + Ethernet · 133 ratings
Buy Here →
The USR-W610 adds 2.4 GHz Wi-Fi alongside Ethernet, so you can network RS232 or RS485 devices where running a cable is impractical, such as solar inverters, generators or remote meters. It averages about 4.2 stars from 133 ratings.
✅ Pros: Wi-Fi + Ethernet; RS232/485.
❌ Cons: 2.4 GHz only.
🎯 Verdict: Serial over Wi-Fi, done right.

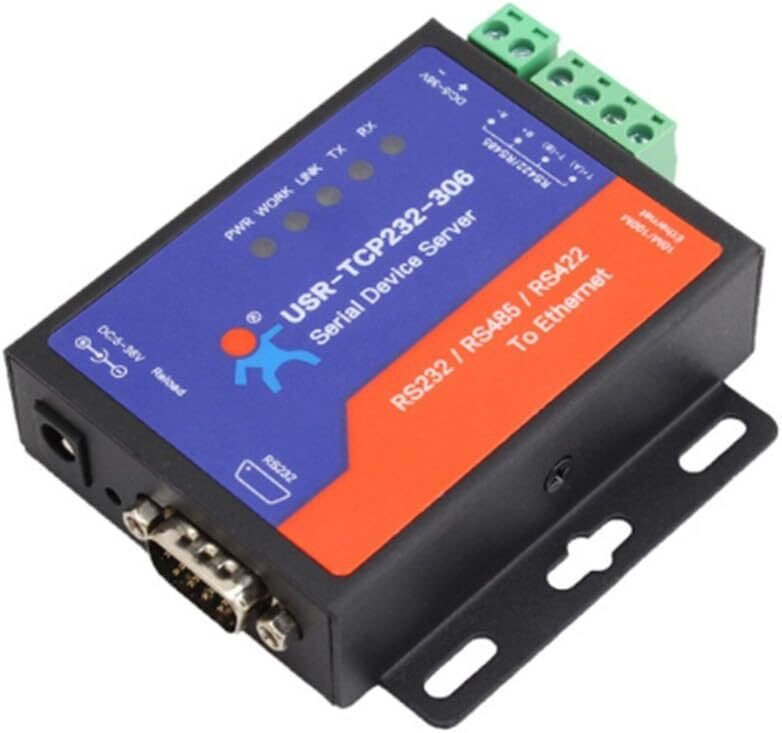

🧰 BUDGET ALL-ROUNDER · ⭐ 4.3/57. USR-TCP232-306
RS232/485/422 · 5–36 V · 67 ratings
Buy Here →
A cost-effective serial device server with RS232, RS485 and RS422 and a wide 5–36 V supply range per the listing, suiting 12 V or 24 V panels. It averages about 4.2 stars from 67 ratings.
✅ Pros: Three interfaces; wide input.
❌ Cons: No PoE.
🎯 Verdict: Flexible and affordable.

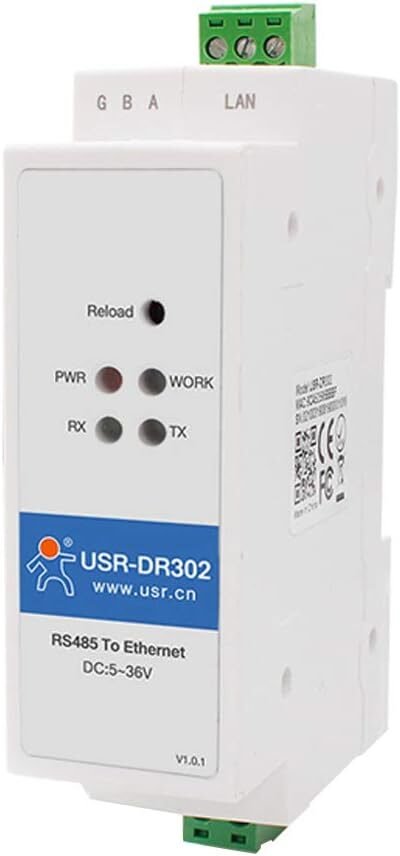

🗄️ COMPACT CABINET · ⭐ 4.1/58. USR-DR302 DIN-Rail Converter
RS485 to Ethernet · Modbus · DIN rail · 30 ratings
Buy Here →
A slim DIN-rail Modbus RS485 to Ethernet converter that clips beside breakers and meters in a panel, offering bidirectional transparent transmission. It averages about 4.1 stars from 30 ratings.
✅ Pros: Slim DIN rail.
❌ Cons: RS485 only.
🎯 Verdict: For tight electrical panels.

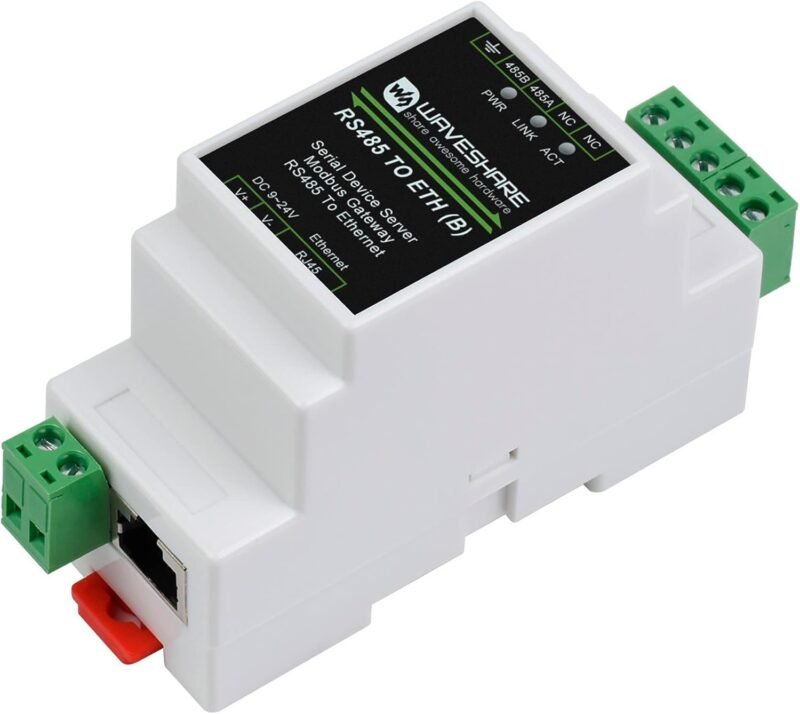

🛤️ NON-POE RAIL OPTION · ⭐ 4.6/59. Industrial Rail-Mount RS485 Serial Server
RS485 to RJ45 · IoT gateway · rail mount · 30 ratings
Buy Here →
The same rail-mountable RS485 data acquisitor / IoT gateway design as our top pick, but without PoE, for cabinets with a DC supply. Multiple units combine neatly on one rail. It averages about 4.6 stars from 30 ratings.
✅ Pros: Rail mount; well rated.
❌ Cons: No PoE.
🎯 Verdict: The DC-powered variant.

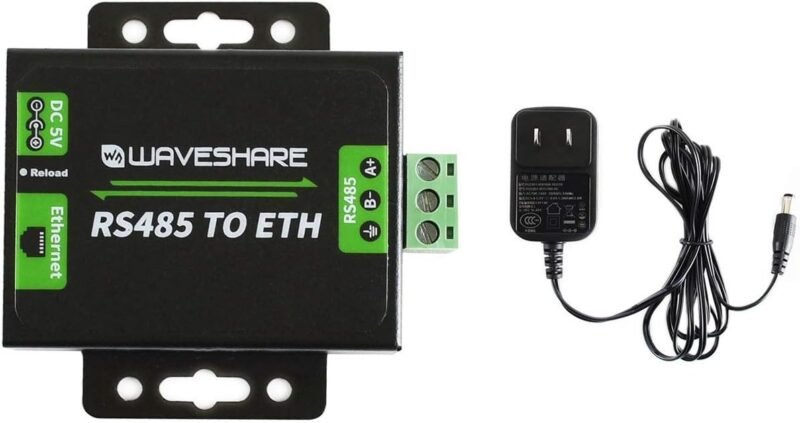

📦 TRANSPARENT ONLY · ⭐ 4.2/510. Waveshare Compact RS485 to Ethernet
TCP server/client, UDP · no Modbus · 19 ratings
Buy Here →
A low-power compact converter with TCP server, TCP client and UDP modes. Its listing states plainly that Modbus is not supported, so use it only for transparent serial tunneling or virtual COM setups, not Modbus TCP polling. It averages about 4.2 stars from 19 ratings.
✅ Pros: Small; low power.
❌ Cons: No Modbus gateway.
🎯 Verdict: For raw serial tunnels only.

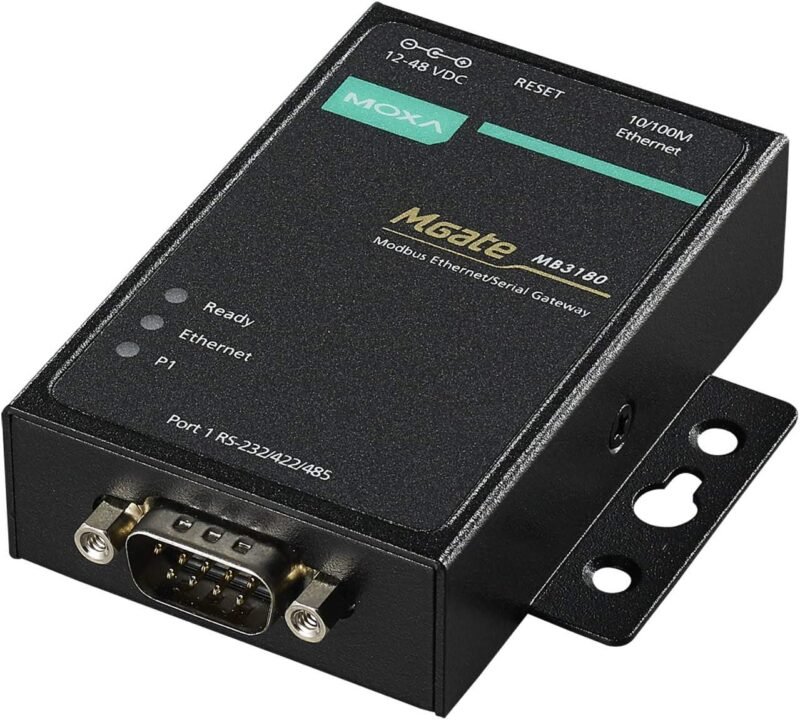

🏢 PROFESSIONAL MODBUS GATEWAY · ⭐ 4.4/511. Moxa MGate MB3180
Modbus TCP ↔ RTU/ASCII · auto device routing · 16 ratings
Buy Here →
A dedicated industrial Modbus protocol gateway with auto device routing and routing by TCP port or IP address per the listing, used widely in factories and utilities. The listing covers the MB3180/MB3280/MB3480 series (1, 2 or 4 ports). It averages about 4.4 stars from 16 ratings.
✅ Pros: Industrial-grade; smart routing.
❌ Cons: Expensive.
🎯 Verdict: For production Modbus networks.

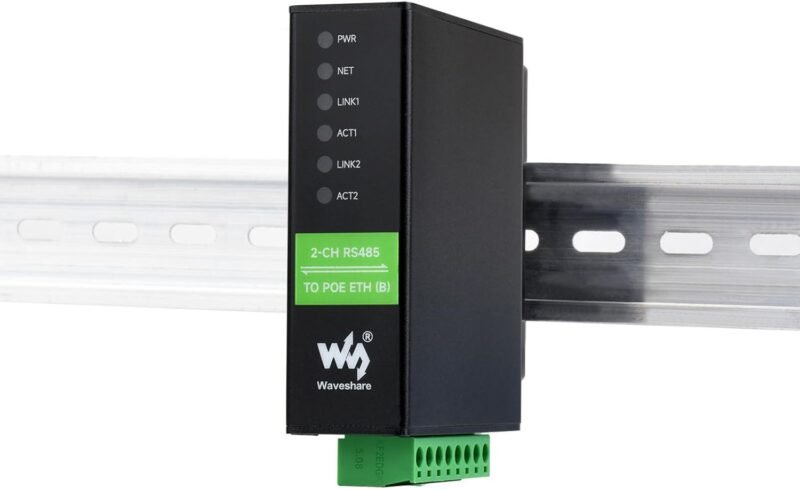

🔀 TWO BUS LINES · ⭐ 5.0/512. Waveshare 2-Ch Isolated RS485 to PoE Ethernet
2× isolated RS485 · 2× Ethernet (cascade) · PoE · 4 ratings
Buy Here →
Two isolated RS485 channels in one PoE unit, with two Ethernet ports for daisy-chaining (cascading) servers along a rail. Useful when you have separate RS485 buses, such as meters on one line and inverters on another. Few reviews so far (4 ratings).
✅ Pros: Two isolated channels; cascade.
❌ Cons: Few reviews.
🎯 Verdict: Two buses, one box.

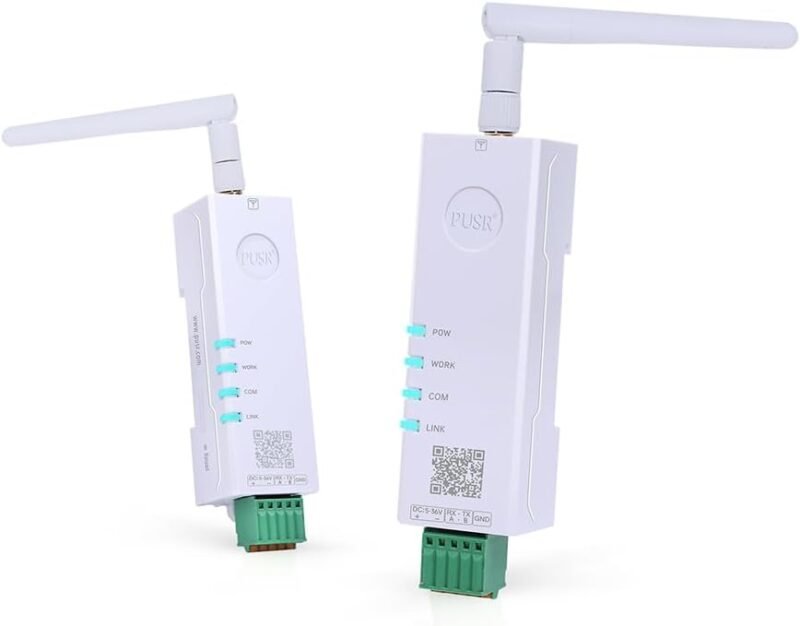

📡 MQTT & 5 GHz WI-FI · ⭐ 3.8/513. RS485 to Dual-Band Wi-Fi Modbus Gateway
2.4 + 5.8 GHz · Modbus TCP/RTU · MQTT · 24 ratings
Buy Here →
A “lipstick”-sized RS485 to Wi-Fi converter with dual-band 2.4/5.8 GHz Wi-Fi, Modbus TCP/RTU conversion and MQTT support per the listing, so it can push meter or sensor data straight to an MQTT broker. Reviews are mixed (about 3.8 stars from 24 ratings).
✅ Pros: 5 GHz; MQTT; tiny.
❌ Cons: Mixed reviews.
🎯 Verdict: Modbus to MQTT over Wi-Fi.
🛒 Which Device for Which Job?
⚡
Energy meters to Home Assistant
Waveshare PoE serial server in Modbus TCP mode.
💵
Cheap Modbus RTU→TCP
USR-TCP232-410S.
🖥️
Legacy software, virtual COM
Moxa NPort 5110.
☀️
Solar inverter, no cable
USR-W610 (Wi-Fi).
🏭
Production Modbus network
Moxa MGate MB3180.
📨
Modbus straight to MQTT
Dual-band Wi-Fi Modbus/MQTT gateway.
⚙️ Operating Modes Explained
| Mode | What It Does | Client Software | Best For |
|---|
| TCP Server / Client | Raw serial bytes over a TCP socket | Custom apps, socket tools | Simple data pipes |
| Virtual COM (Real COM) | Driver creates a local COM port | Legacy Windows/Linux software | Unmodified software ⭐ |
| Modbus TCP ↔ RTU | Translates Modbus TCP to RTU frames | SCADA, Node-RED, Home Assistant | Modbus devices ⭐ |
| MQTT Gateway | Polls Modbus and publishes to a broker | MQTT brokers, IoT clouds | IoT dashboards |
Available modes vary by model and firmware.
❓ Frequently Asked Questions
Can I read Modbus RS485 devices in Home Assistant?
Yes. Put a Modbus gateway in Modbus TCP mode and configure Home Assistant’s Modbus integration to poll it over the network. Many users do this with energy meters, heat pumps and solar inverters.
How many devices can share one RS485 port?
A standard RS485 bus supports up to 32 unit loads (more with low-load transceivers). Each Modbus device needs a unique address, and the bus should be daisy-chained and terminated at both ends.
Why do I get timeouts or garbage data?
Check that the baud rate, parity and stop bits match the device, swap A/B if needed, add 120 Ω termination on long runs, connect a common ground or use isolated converters, and avoid polling too fast.
Can I build my own gateway with an ESP32?
Yes. An ESP32 with an RS485 transceiver can poll Modbus devices and publish over Wi-Fi or MQTT. See our RS485 modules guide. Ready-made gateways save time and add isolation, DIN-rail mounting and tested firmware.
How do I access serial devices remotely over cellular?
Connect the serial server to an industrial 4G router with VPN support, or use a router with a built-in RS485 port. See our industrial 4G routers guide.
🏁 Final Verdict: Best RS485 to Ethernet Converters
The right serial server for every job:
🥇 Best Overall: Waveshare RS485 to PoE Ethernet (Rail)
Buy Here →💵 Best Value Modbus Gateway: USR-TCP232-410S
Buy Here →🏭 Best Professional Server: Moxa NPort 5110
Buy Here →🔌 Best Multi-Interface: Waveshare RS232/485/422 to ETH
Buy Here →🏢 Best Industrial Gateway: Moxa MGate MB3180
Buy Here →For most makers and integrators, the Waveshare PoE serial server is the best way to get RS485 Modbus devices onto the network, and the USR-TCP232-410S is the best budget Modbus gateway with both RS232 and RS485. Choose Moxa when the job demands proven industrial reliability, and the USR-W610 where only Wi-Fi is available. Always confirm that a unit supports Modbus TCP↔RTU if you need it. See also our RS485 modules, CAN bus modules and industrial 4G routers guides.
💬 What Modbus devices are you networking? Share your setup in the comments below.
