Z-Wave Generation

Classic Z-Wave (300/400 series) still works, but Z-Wave Plus (500 series) and the newer 700/800 series add longer range, better battery life and modern features. For a new install, prefer Z-Wave Plus or newer.

S2 Security & SmartStart

S2 encrypts every command with modern key exchange, which matters for a device that controls your furnace. SmartStart lets you scan a QR code once and the thermostat joins your network automatically when powered.

Battery vs C-Wire

Most picks run on AA batteries when there is no C-wire. On batteries the radio sleeps between check-ins and does not repeat mesh traffic. On a C-wire it stays awake, reports faster and strengthens your network.

HVAC Stages & System Type

Count your heat and cool stages and check for a heat pump (O/B wire) or dual fuel. Mini-splits and radiators need a different kind of controller entirely, which is why we include the Airzone Aidoo and the FIBARO Heat Controller.

Controller Compatibility

Standard thermostat command classes work on any certified hub, but extras like humidity outputs or remote sensors may need your hub’s driver support. Home Assistant (Z-Wave JS) and Hubitat handle every 24V pick here well.

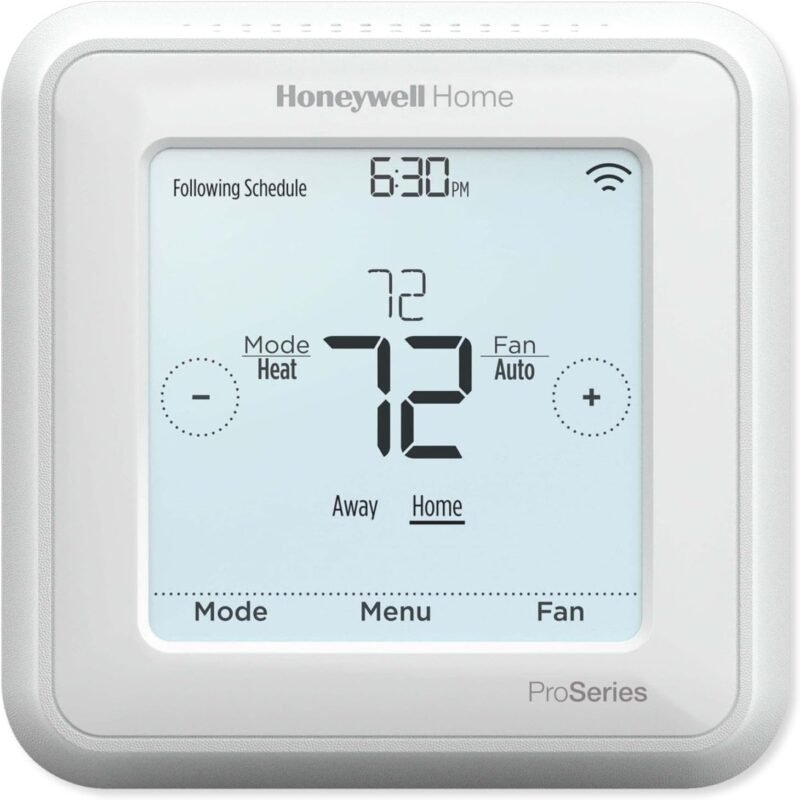

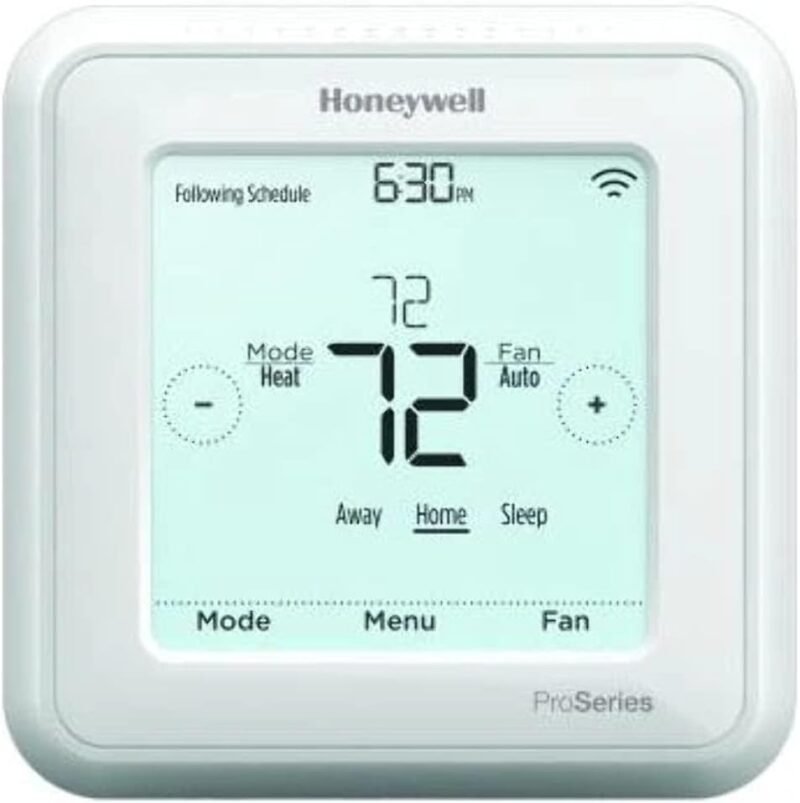

The TH6320ZW2007 is the newer drop-in successor to our top pick. It keeps the same touchscreen, the same 3H/2C heat pump and 2H/2C conventional support and the same battery or C-wire power, and adds SmartStart. Honeywell’s install guide says it goes into include mode as soon as it is powered and configured for your system type, so a SmartStart hub can pair it from the DSK QR code with no menu diving. On a controller without SmartStart you simply start inclusion from the Z-WAVE SETUP menu. Retailers list it as Z-Wave Plus v2, and distributors now list it as the replacement for the TH6320ZW2003. If both are in stock, pick whichever costs less on the day: the thermostat side is identical.

👉 Check Price on Amazon →

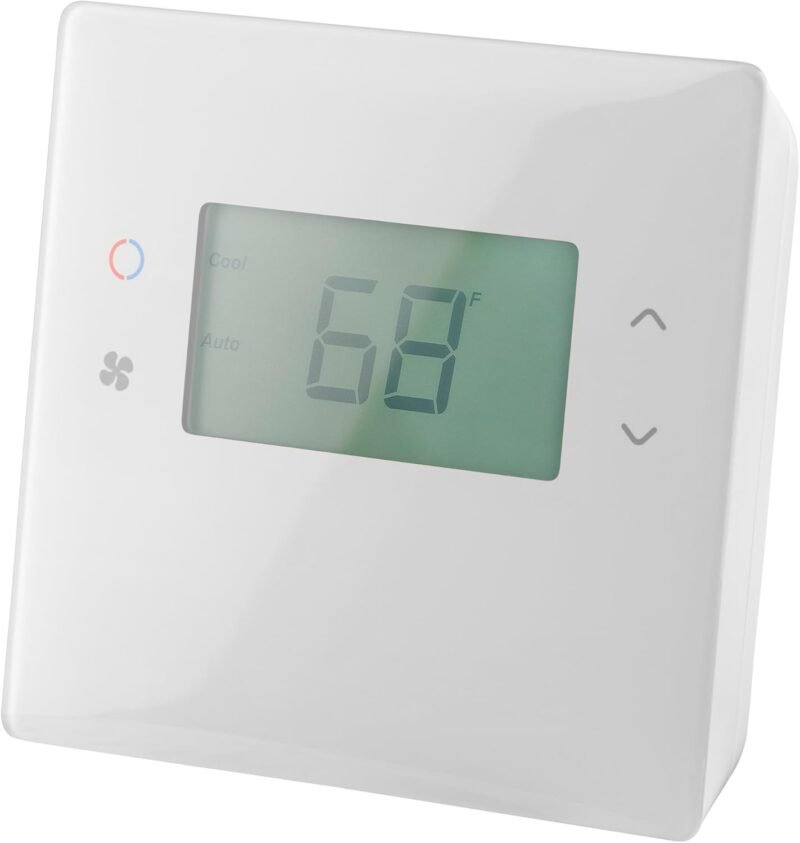

The Ecolink TBZ500 is the modern answer to the old GoControl thermostat, and the pick we would choose for a house with only two or four thermostat wires. It is Z-Wave Plus certified with S2 security and supports firmware updates over Z-Wave, so bugs can be fixed from your hub. Ecolink rates four AA alkaline batteries for about 24 months, and a C-wire works too. It handles 2-stage heat/2-stage cool conventional and 3-stage heat/2-stage cool heat pump systems with selectable emergency heat, has a built-in temperature and humidity sensor, and can use a separate Z-Wave remote temperature sensor. The box includes a SmartStart (DSK) label. The display is a backlit segment LCD with a 7-character message bar, so it is functional rather than pretty, and Ecolink’s manual notes that on battery power it does not act as a Z-Wave repeater.

👉 Check Price on Amazon →

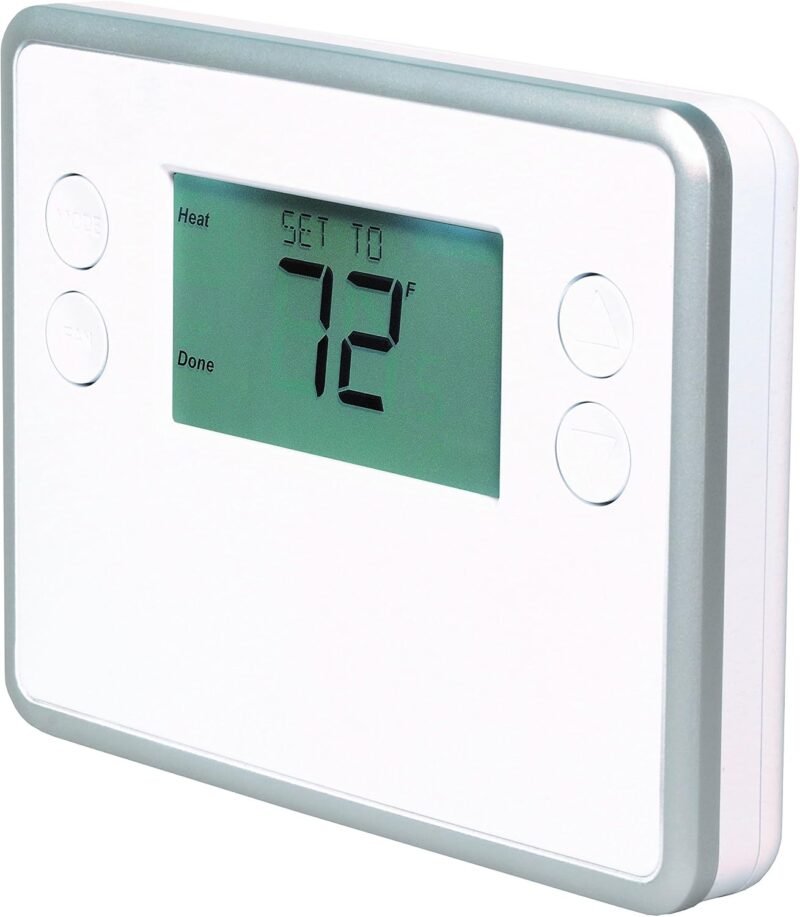

The GC-TBZ48 has been in Z-Wave homes for years, and that track record is its biggest selling point. It runs on four AA batteries that GoControl rates for about two years, or on the HVAC system’s 24VAC C-wire, and supports FLiRS so a battery-powered unit can still be woken quickly by the hub. It handles 2-stage heat/2-stage cool standard systems and 3-stage heat/2-stage cool heat pumps, mounts on a wall or single-gang box, and has a USB port for firmware upgrades. The trade-off is age: its listing names Z-Wave version 4.5.5, which is classic Z-Wave, not Z-Wave Plus, so there is no S2 security or SmartStart, and the 7-character scrolling display feels dated. Owners report it reads whole degrees, so expect less precise feedback than the newer picks.

👉 Check Price on Amazon →

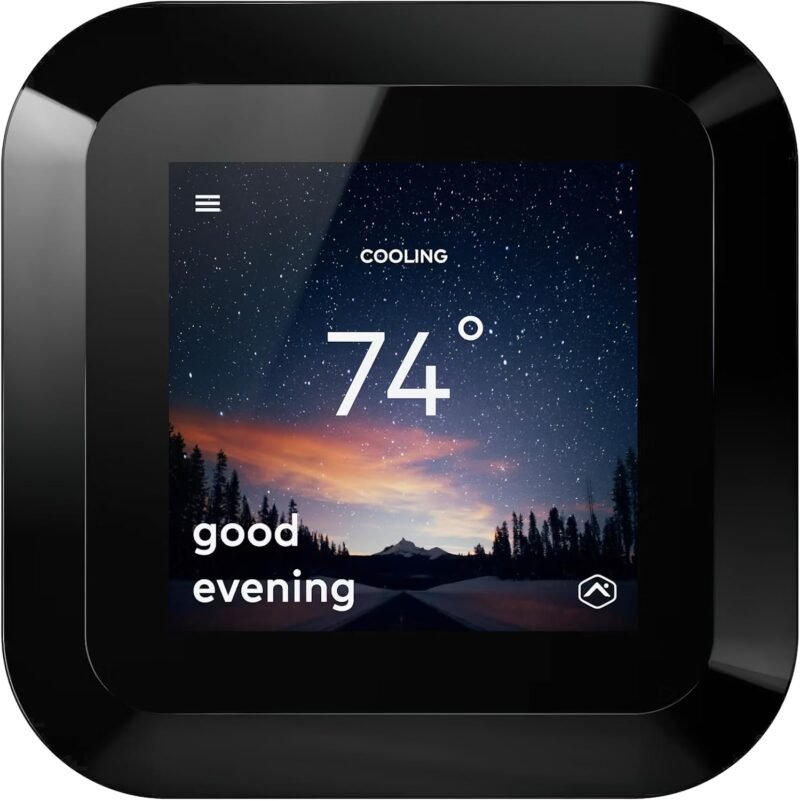

Most Z-Wave thermostats look like they were designed a decade ago. The ADC-T40K-HD is the exception: an HD color touchscreen with an on-screen setup wizard and mechanical wire detection. Under the branding it is a Z-Wave Plus device with SmartStart and S2, built-in humidity sensing and configurable terminals for a humidifier, dehumidifier or ventilation system. With the Alarm.com service it adds HVAC health monitoring, monthly performance reports and sensor averaging, and it is ENERGY STAR certified. It needs a 24V system with a C-wire. Two honest flags: it is built for Alarm.com dealer panels, and local scheduling only works while it is not included in a controller, so your hub should own the schedule. The Amazon listing is sold by third parties and may not ship to every region.

👉 Check Price on Amazon →

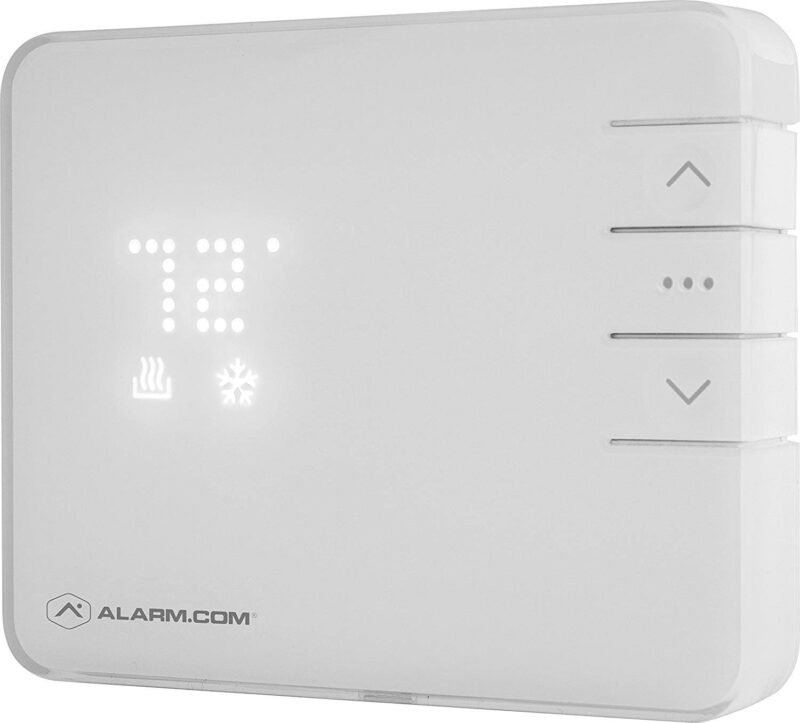

The ADC-T2000 is the thermostat millions of security customers already have on the wall. It is a Z-Wave Plus thermostat that runs on four AA batteries for up to 18 months or on 24V power (which Alarm.com requires for Z-Wave repeater operation), and newer units on firmware 2.01 or later add SmartStart and S2. Alarm.com’s distributors list support for 3 heat/2 cool systems, heat pumps and dual fuel, plus humidifier and dehumidifier control. Its standout trick is remote sensor averaging: pair up to ten Alarm.com Z-Wave temperature sensors and let the thermostat target the rooms that matter. Inside the Alarm.com app you also get Smart Away, geo-services automation and temperature alerts. On a third-party hub it works as a standard Z-Wave thermostat, but sensor averaging is an Alarm.com service feature.

👉 Check Price on Amazon →

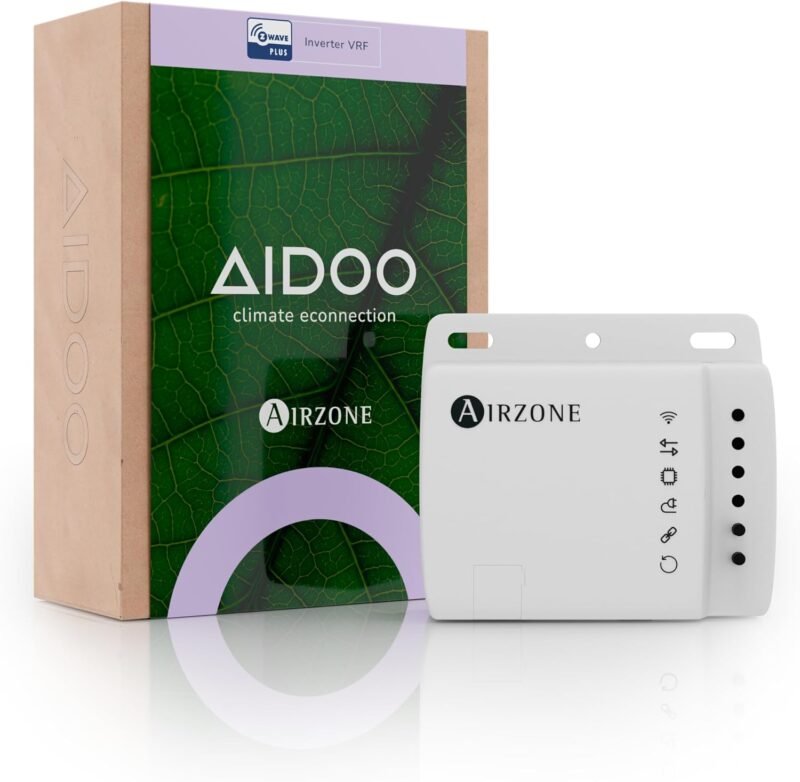

Ductless mini-splits do not use a 24V wall thermostat, which leaves most Z-Wave users stuck with IR blasters. The Airzone Aidoo Z-Wave solves that properly: it plugs into the indoor unit with a manufacturer-specific cable, draws power from the AC and talks to it two-way, then appears on your hub as a standard Z-Wave thermostat. You get on/off, setpoint, mode, fan speed and error reporting, and because it is mains powered it repeats Z-Wave traffic to strengthen your mesh. It supports SmartStart and adds a Modbus port for pro integrations. You need one Aidoo per indoor unit, and you must buy the variant for your brand: the linked listing is for Mitsubishi Electric, and Airzone also sells Daikin and Fujitsu versions. It is the priciest per-zone option here, and the Amazon listing has very few reviews.

👉 Check Price on Amazon →

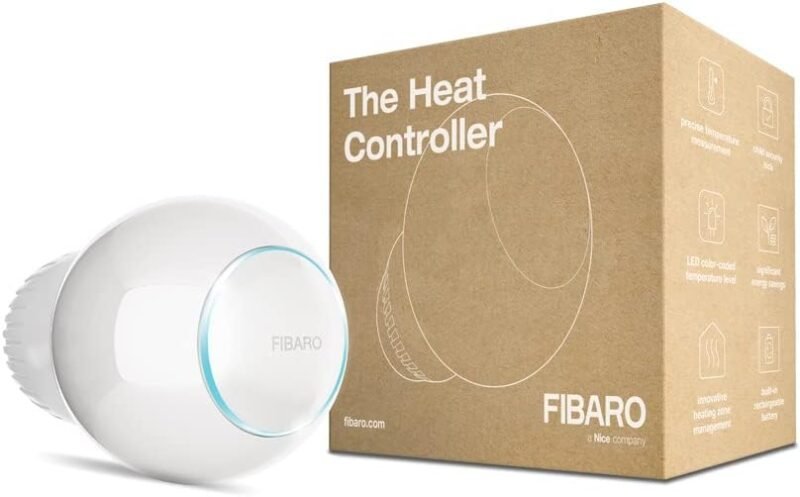

For homes heated by hot water radiators, the thermostat is often a valve head on each radiator rather than a box on the wall. The FIBARO Heat Controller replaces that head with a Z-Wave Plus actuator that measures room temperature and opens or closes the valve on its own, giving you room-by-room heating from any Z-Wave or Z-Wave Plus controller. It fits M30x1.5, Danfoss RTD-N and Danfoss RA-N valves without tools, supports S0 and S2 security, and runs on a built-in battery recharged over micro-USB instead of disposable cells. FIBARO adds schedules, automatic calibration, anti-freeze and anti-scale (decalc) functions, and an optional FIBARO temperature sensor for better regulation. Important: FIBARO’s heat controller is mainly sold for European radiator valves and the 868 MHz Z-Wave region, so confirm the listing’s frequency matches your controller (US hubs use 908.4 MHz) and that your valve thread is supported before ordering.

👉 Check Price on Amazon →

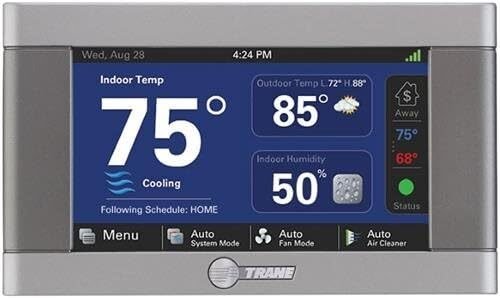

The Trane XL824 flips the usual arrangement: instead of joining your Z-Wave network, it is the network. It connects over Wi-Fi or Ethernet and has a Nexia Z-Wave bridge built in, which Trane says can control more than 200 Z-Wave devices such as locks, lights and garage doors through the Nexia (Trane Home) app. As a thermostat it is excellent, with a 4.3-inch color touchscreen, up to 5 heat/2 cool stages, dual fuel support, humidity display and two auxiliary dry contacts for a humidifier, dehumidifier or ventilation system. Two big caveats. First, because it acts as a Z-Wave controller, you generally cannot include it as a device in Home Assistant or Hubitat; Home Assistant reaches it only through the cloud-based Nexia integration. Second, the Amazon listing contradicts itself on conventional versus communicating wiring, so confirm with Trane or your dealer before buying.

👉 Check Price on Amazon →

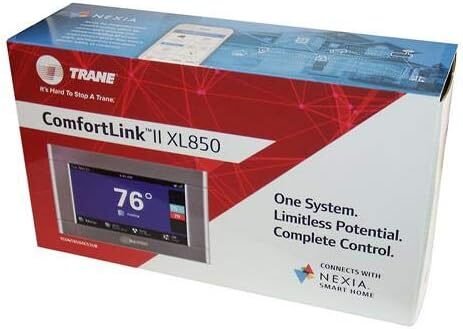

The XL850 is Trane’s ComfortLink II communicating control, built for Trane and American Standard systems that talk to the thermostat digitally instead of over individual 24V relay wires. That link lets it read detailed equipment status and diagnostics from compatible variable-speed furnaces, air handlers and outdoor units. Its listing confirms Z-Wave certification ZC08-14090003 for the US, Canada and Mexico region, with the device registered as both a thermostat and a controller, and like the XL824 it includes a Nexia bridge for other Z-Wave devices. Be realistic about where it fits: it is a dealer-installed, premium-priced control, its Z-Wave stack dates from the classic era, and Amazon stock was very limited when we checked. If you do not have a ComfortLink II system, one of the 24V picks above is the better buy.

👉 Check Price on Amazon →

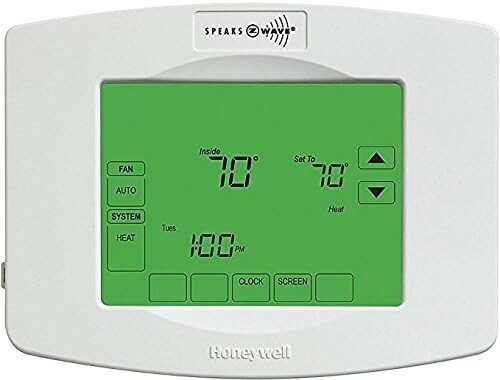

The VisionPRO TH8320ZW was Honeywell’s flagship Z-Wave thermostat before the T6 Pro, with a large backlit touchscreen, menu-driven programming and support for 3 heat/2 cool heat pumps or 2 heat/2 cool conventional systems. The YTH8320ZW1007 kit adds a wire saver module so it can run without a C-wire. We include it for one specific buyer: someone with an existing VisionPRO Z-Wave install who wants an identical replacement that their hub, automations and wall cut-out already expect. For everyone else, it is hard to recommend. Supply houses list it as discontinued since January 2020, it uses classic Z-Wave without S2, the Amazon listing has no main buy box (only third-party sellers with limited stock) and its owner rating is the lowest here. A T6 Pro Z-Wave is the modern replacement.

👉 Check Price on Amazon →

Home Assistant or Hubitat on a furnace or heat pump?

Get the Honeywell T6 Pro Z-Wave, or the TH6320ZW2007 if your hub supports SmartStart.

Want the most for your money?

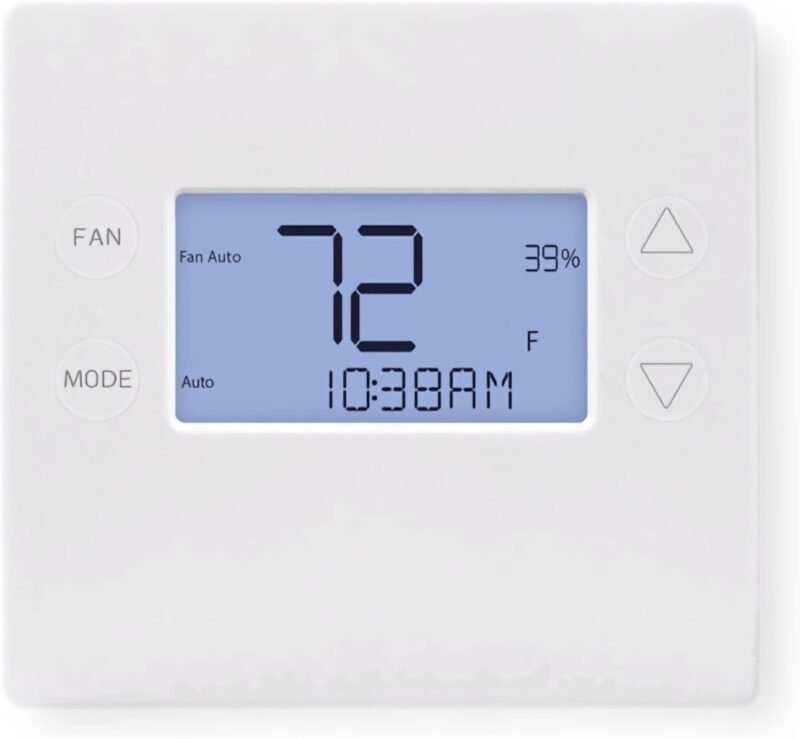

The 2GIG STZ-1 brings a 700-series radio, S2, SmartStart and humidity control.

No C-wire at the wall?

The Ecolink TBZ500 runs about two years on AA batteries; the GoControl GC-TBZ48 is the budget fallback.

Already have an Alarm.com panel?

Choose the ADC-T40K-HD for a color screen or the battery-friendly ADC-T2000.

Ductless mini-split?

Use an Airzone Aidoo Z-Wave in the variant that matches your AC brand, one per indoor unit.

Hot water radiators?

Fit a FIBARO Heat Controller on each radiator, after checking valve thread and Z-Wave region.

Do I need a hub for a Z-Wave thermostat?

Yes. A Z-Wave thermostat has no Wi-Fi, so it needs a Z-Wave controller: Home Assistant with a USB Z-Wave stick, Hubitat, a SmartThings hub that supports Z-Wave, or a security panel such as 2GIG, Qolsys or an Alarm.com system. Voice control through Alexa or Google Assistant also goes through that hub. The Trane XL824 and XL850 are the exception because they contain a Z-Wave controller themselves.

Z-Wave or Matter: which thermostat should I buy?

If you already run a Z-Wave network or a security panel, a Z-Wave thermostat fits right in and stays fully local. If you live in Apple Home, Google Home or Alexa and do not own a Z-Wave hub, a Matter thermostat is simpler. Our Matter smart thermostat guide covers that side, and a Matter bridge for Z-Wave can expose Z-Wave thermostats to Matter platforms.

Should I power my Z-Wave thermostat from batteries or a C-wire?

Use a C-wire whenever you can. On batteries, the thermostat sleeps its radio between check-ins to make the cells last 18 to 24 months, so state updates can lag and it will not repeat traffic for other Z-Wave devices. On 24V it stays awake, reports changes faster and strengthens your mesh. Battery mode is a good fallback for older homes with only two or four thermostat wires.

Will a US Z-Wave thermostat work in Europe or the UK?

No. Z-Wave uses different radio frequencies by region: about 908.4 MHz in the US and Canada and 868.4 MHz in Europe and the UK. A device and controller from different regions will never pair. Check the frequency on the listing or packaging, especially for imported products like the FIBARO Heat Controller and for any hub you buy separately.

What do S2 and SmartStart mean, and do I need them?

S2 is the modern Z-Wave security framework: it encrypts commands and authenticates the device during pairing with a PIN or QR code, which is worth having on anything that controls your heating. SmartStart lets you pre-register a device by scanning its QR code so it joins the network automatically when powered. Neither is strictly required, but for a new install we recommend at least S2, which rules out the GoControl GC-TBZ48 and the VisionPRO TH8320ZW.
