Controller & Firmware

8-bit GRBL 1.1 on an ATmega328P (Uno/Nano) is proven and perfect for 3-axis routers, lasers and plotters. 32-bit boards (ESP32 running grbl_esp32 or FluidNC) add WiFi, faster step rates and more axes.

Stepper Drivers

A4988: up to 1/16 microstepping, about 1 A per phase without a fan. DRV8825: up to 1/32 microstepping and more current headroom. TMC2208/2209: near-silent, but check compatibility with the board.

Supply Voltage

Higher voltage (24 V) lets steppers hold torque at speed. Shield V3 boards accept 12–36 V, but stay under your driver’s limit. Most all-in-one 3018 boards are designed around a 24 V supply.

Safety & I/O Ports

Look for limit-switch inputs, a probe input for Z-zeroing, an E-stop header and a PWM spindle/laser output. GRBL 1.1 uses PWM on D11 for variable spindle speed and laser power.

Host Software & Offline Use

USB boards stream G-code from Candle, Universal Gcode Sender (UGS), LaserGRBL or LightBurn. Offline controllers and ESP32 boards can run jobs from an SD card with no PC attached.

The DAOKI kit is the same proven Uno + CNC Shield V3 stack, but with DRV8825 drivers instead of A4988s. That buys you up to 1/32 microstepping for smoother motion and more current headroom (up to roughly 2.2 A per phase with good cooling), which suits slightly larger NEMA 17 motors on a router gantry. The kit adds heatsinks, a USB cable, a DC power cable and jumper caps. Remember DRV8825 modules use a different Vref formula than A4988s, so check the formula before setting current.

👉 Check Price on Amazon →

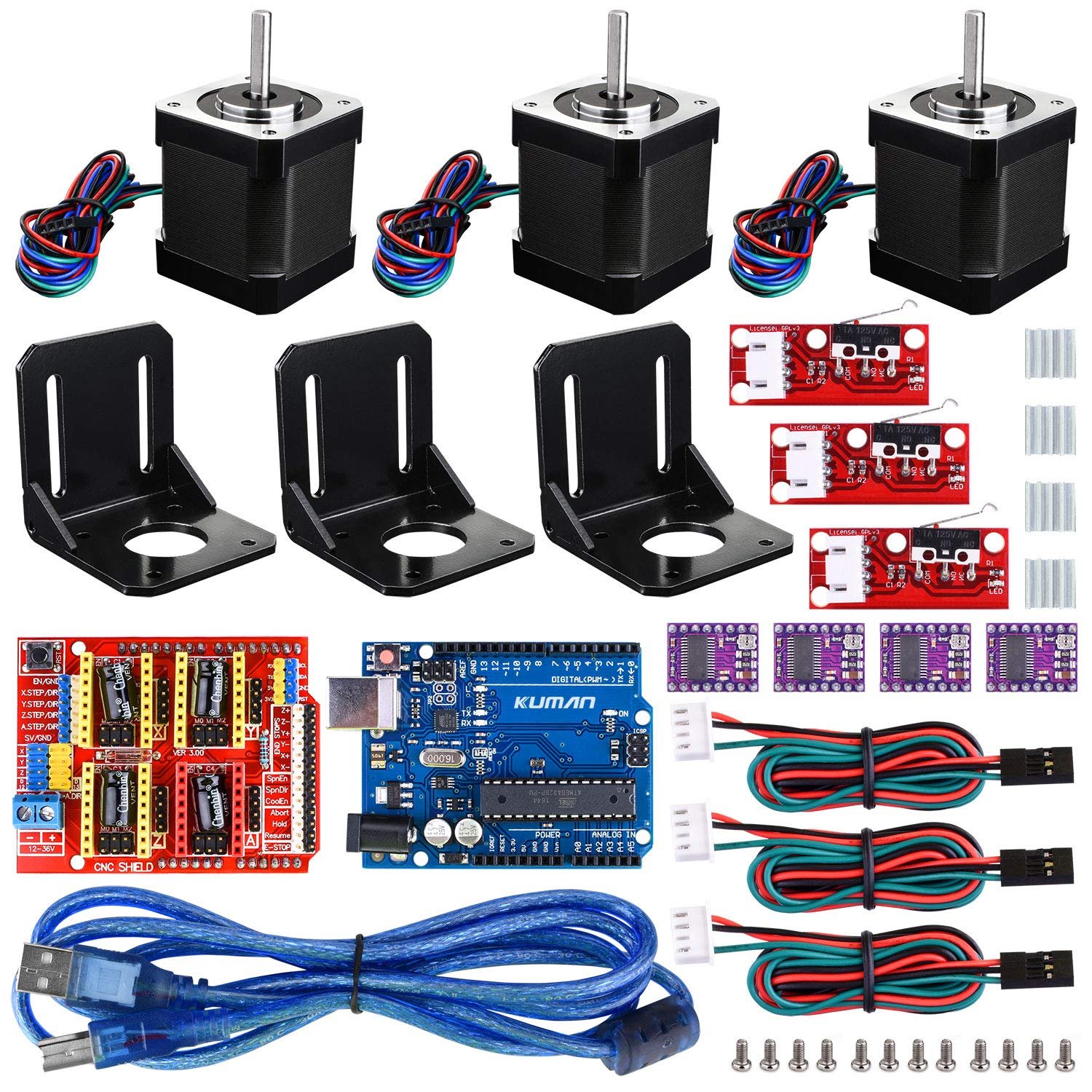

Want the motors too? The Kuman Professional CNC Kit bundles a GRBL-ready CNC shield, a Kuman Uno-compatible board, four DRV8825 drivers with aluminium heatsinks, three NEMA 17 1.7 A stepper motors with mounting brackets and screws, plus mechanical endstops. It is the fastest way to get a desk-top plotter, a small laser frame or a learning rig moving on day one, and it removes the guesswork of matching drivers to motors. It sits well above the other kits in cost because of the motors, so it only makes sense if you need them.

👉 Check Price on Amazon →

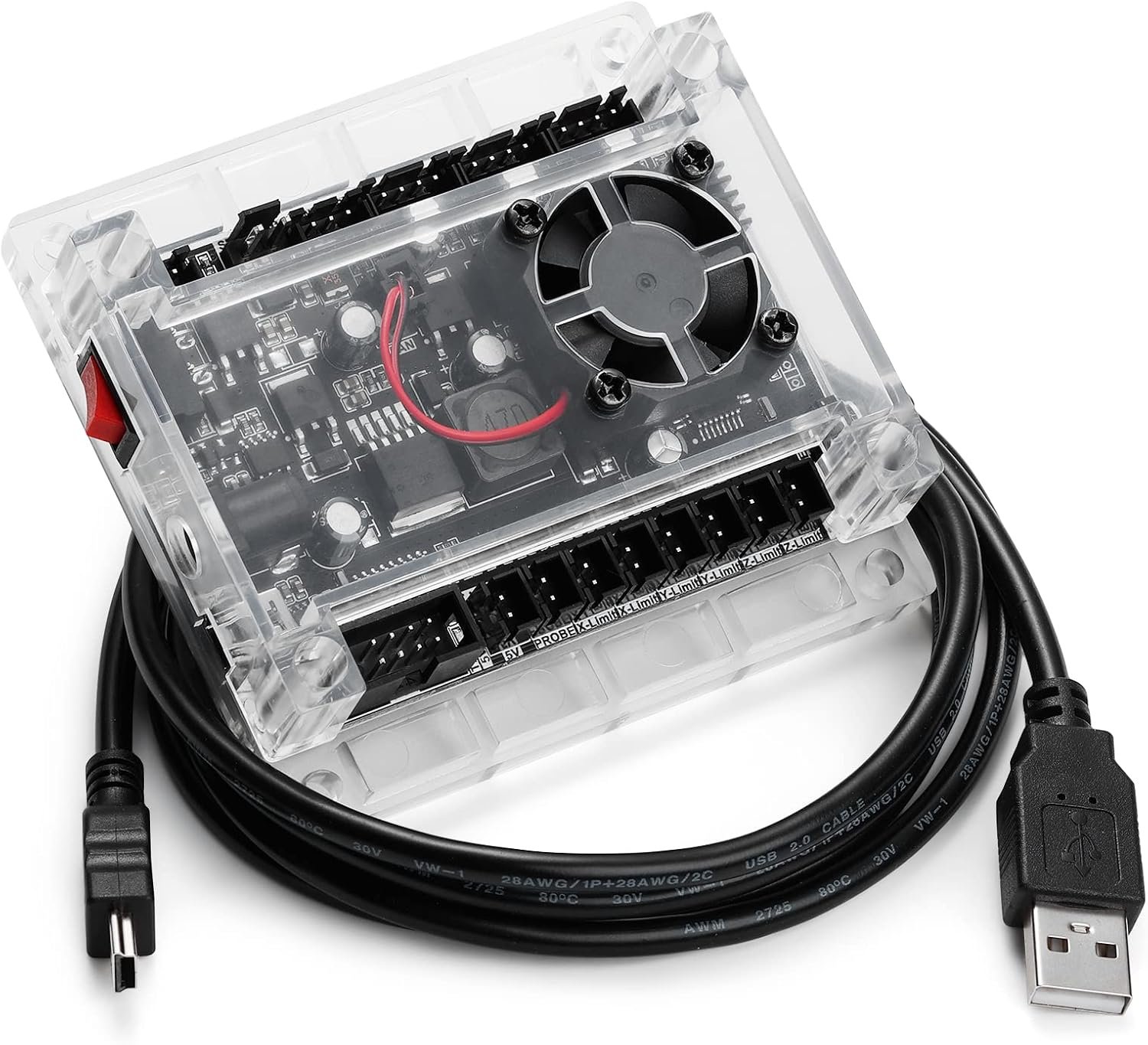

The SainSmart Genmitsu controller is the official replacement board for Genmitsu 3018, 3018-PRO and 1810-PRO routers, and it is equally at home in any similar 3018 clone. It uses onboard DRV8825 drivers, drives a spindle up to about 150 W, supports both 2-pin and 3-pin laser modules, and comes in an ABS case that keeps chips and dust off the electronics. It runs with GRBL Controller, Candle and Universal Gcode Sender, and it carries the largest review count of any board in this roundup.

👉 Check Price on Amazon →

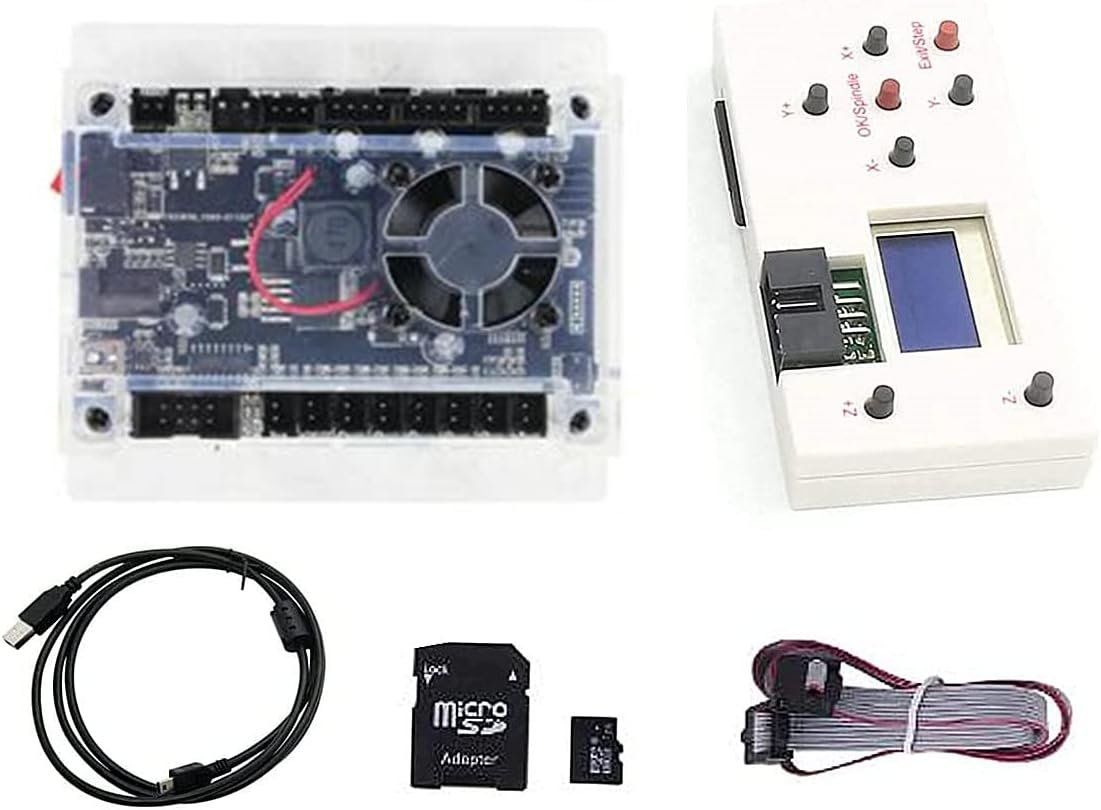

This CNCTOPBAOS bundle pairs the same style of GRBL 1.1f board as our #2 pick with a handheld offline controller. Load G-code onto an SD card, plug the controller in, and you can jog axes, set work zero and run jobs with no laptop next to the machine. That is a real quality-of-life upgrade in a dusty garage or a shared makerspace. You still get the E-stop, probe and limit ports, plus a power switch, so the board itself is just as capable when you do want to stream from a PC.

👉 Check Price on Amazon →

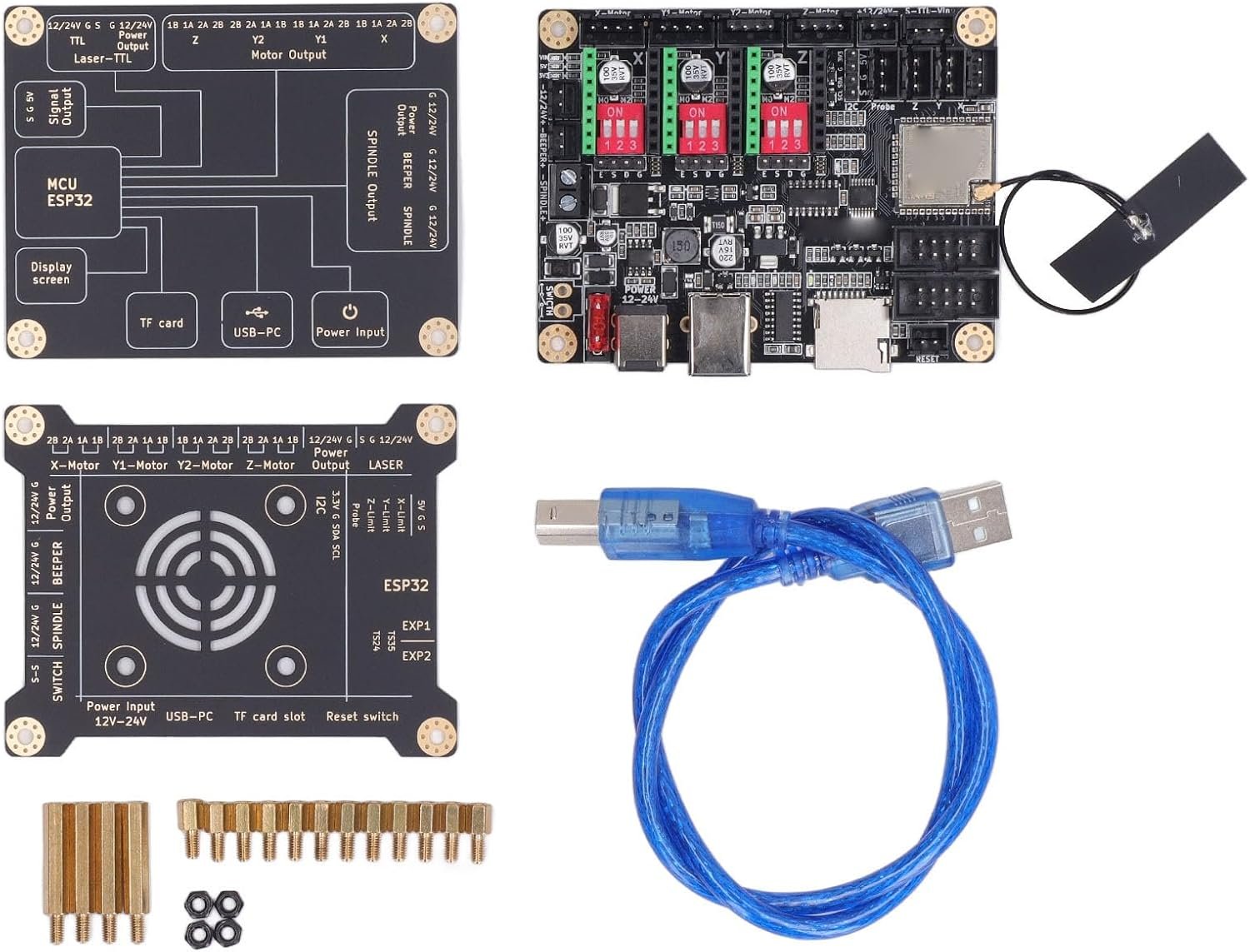

The MKS DLC32 V2.1 is where GRBL goes 32-bit. Its ESP32 runs a GRBL port with built-in WiFi, so you can open the board’s IP address in a browser and jog, upload and run jobs wirelessly, or use the MKS phone app. It supports offline engraving and the optional MKS TS24/TS35 touch screens, and this listing includes a protective case. It is popular as an upgrade for desktop laser engravers and 3018 routers that have outgrown an 8-bit Uno. Stepper drivers are pluggable, so read the listing carefully to confirm what is in the box for your order.

👉 Check Price on Amazon →

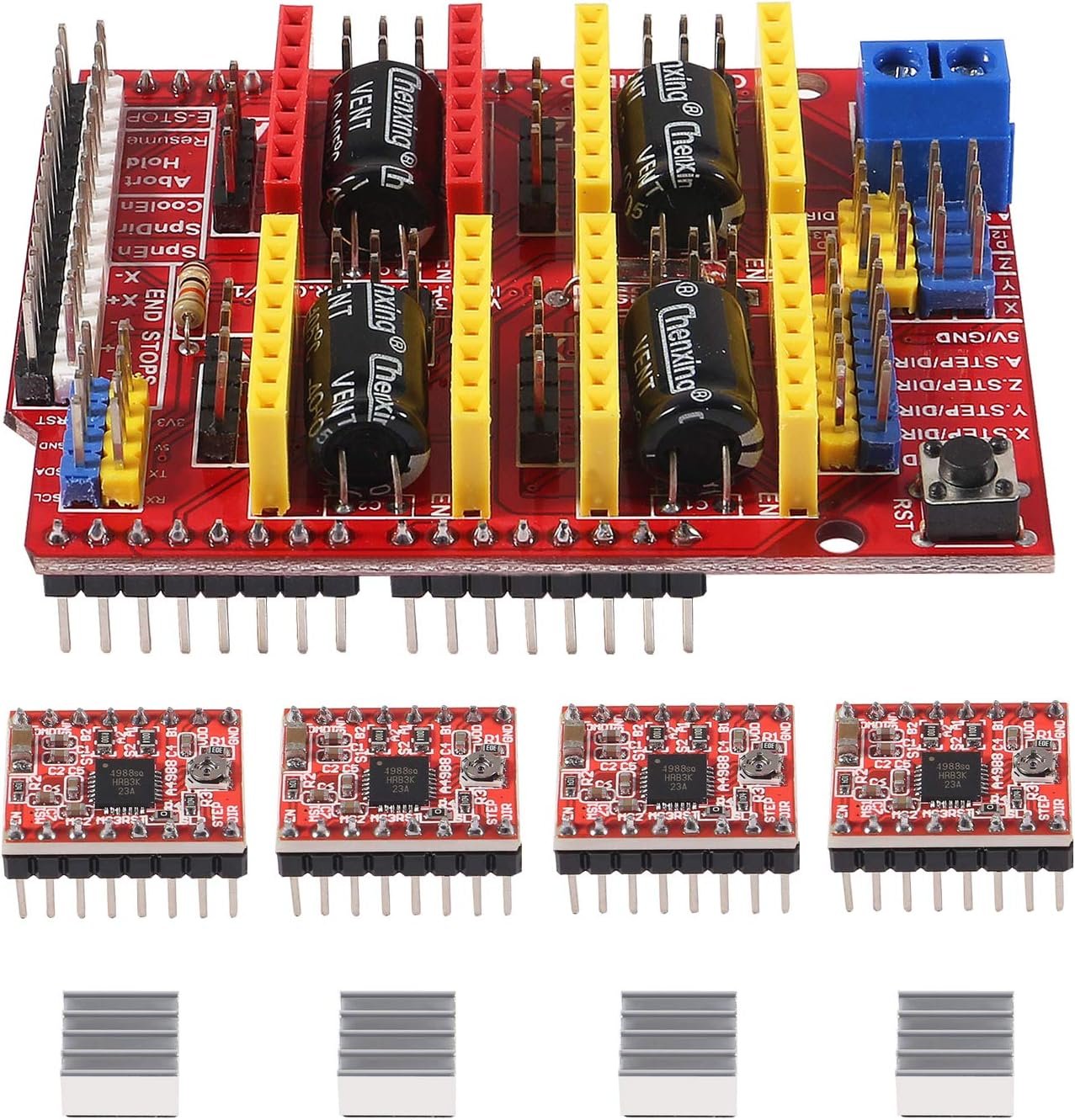

Already have an Arduino Uno in the drawer? The ACEIRMC kit gives you just the CNC Shield V3 plus four A4988 drivers with heatsinks, which is everything you need to turn that Uno into a GRBL controller for the least money. It is also a smart spares pack: keep it on the shelf as a backup for a blown shield or driver on an existing build. Add your own Uno, endstops and power supply.

👉 Check Price on Amazon →

Building your first DIY CNC or laser?

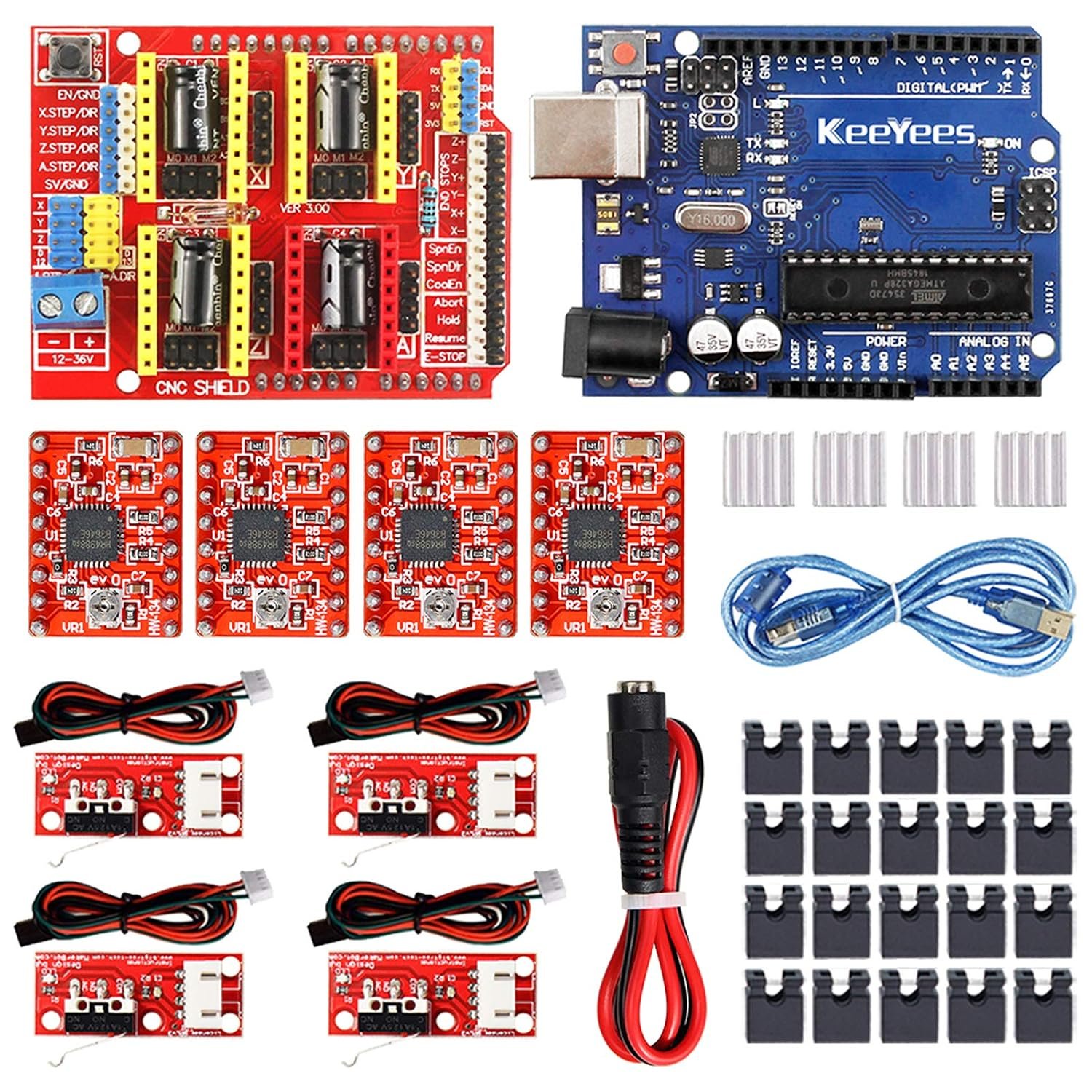

Start with the KeeYees CNC Shield V3 kit. It has the Uno, shield, A4988s and endstops in one box.

Own a 3018 or 1610 router?

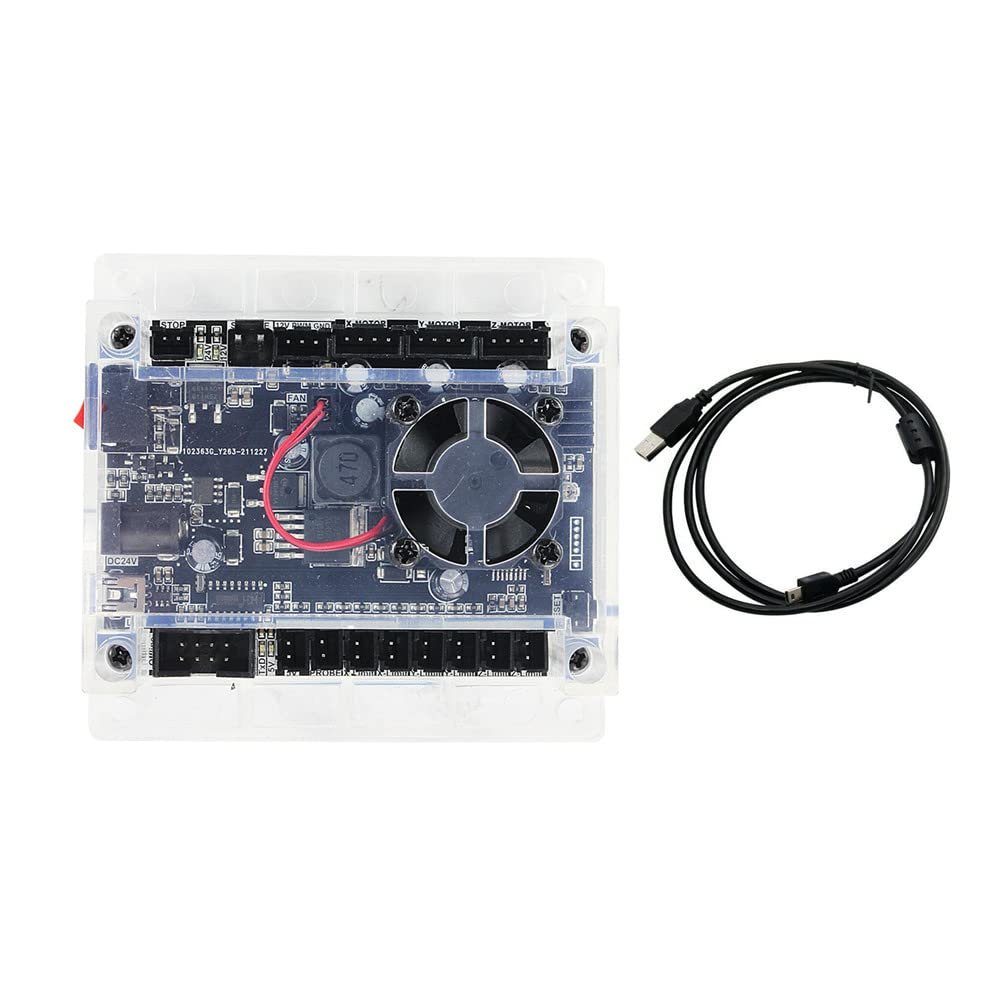

Use the CNCTOPBAOS GRBL 1.1f board or the cased SainSmart Genmitsu controller as a drop-in brain.

Running bigger NEMA 17 motors?

Choose the DAOKI DRV8825 kit for more current headroom and 1/32 microstepping.

Teaching a class or need motors too?

The Kuman Professional CNC Kit includes three NEMA 17 motors with brackets.

Machine lives away from your PC?

Get the CNCTOPBAOS + offline controller bundle and run jobs from an SD card.

Want WiFi and 32-bit headroom?

The MKS DLC32 V2.1 adds an ESP32, a web UI and touch-screen support.

What is GRBL, and do I need to flash it myself?

GRBL is free, open-source firmware that turns an ATmega328P (the chip on an Arduino Uno or Nano) into a CNC motion controller: it reads G-code over USB and generates precisely timed step and direction pulses with acceleration planning. With a DIY CNC Shield kit you flash it yourself: install the GRBL library in the Arduino IDE, open the grblUpload example and upload it to the Uno. All-in-one boards like the CNCTOPBAOS and Genmitsu controllers ship with GRBL already loaded, so you only need the USB driver and a sender such as Candle or Universal Gcode Sender.

A4988 or DRV8825: which driver should I use on my CNC shield?

Both are pin-compatible on the CNC Shield V3. The A4988 offers up to 1/16 microstepping and is happiest around 1 A per phase without active cooling, which suits small NEMA 17 motors. The DRV8825 offers up to 1/32 microstepping and more current headroom (roughly 1.5 A comfortably, more with a fan), so it is better for larger NEMA 17s on a router. Whichever you choose, set the current limit with a multimeter (Vref), add heatsinks and a fan, and note that the two chips use different Vref formulas. Our A4988 with Arduino and DRV8825 with Arduino tutorials walk through it.

Can the CNC Shield V3 run a real 4th axis?

Not under standard 8-bit GRBL. The fourth driver slot (A axis) is wired so it can clone X, Y or Z using jumpers, which is ideal for a dual-motor gantry where two motors drive one axis. It can also be driven from D12/D13 for custom firmware, but stock GRBL 1.1 only controls three axes. For true 4- or 6-axis control, look at 32-bit firmware such as FluidNC or grblHAL on an ESP32 or STM32 board.

Why does my GRBL machine lose steps or stall?

The usual causes are driver current set too low (or so high the driver overheats and shuts down), acceleration or max-rate settings ($110–$122) that are too aggressive, a supply voltage that is too low for the speed you want, or loose couplers and pulleys. Cool the drivers with a fan, raise the voltage toward 24 V within your driver’s limit, then lower max rate and acceleration until the machine runs reliably. Also check that the steps/mm values ($100–$102) match your lead screws or belts.

Which software works with these GRBL controllers?

Any GRBL-compatible sender will work over USB: Candle (GRBLControl) and Universal Gcode Sender for routers, LaserGRBL and LightBurn for laser engravers, and bCNC or CNCjs if you prefer a web-based interface. You create G-code in CAM software such as Fusion, Easel, Carbide Create or Estlcam. ESP32 boards like the MKS DLC32 can also be controlled from a browser over WiFi, and offline controllers can run jobs straight from an SD card.
