Complete Shade vs Motor Controller

No motorized shades yet? Buy a complete made-to-measure shade with a Z-Wave motor inside. Already have wired motorized shades, shutters or awnings? A Z-Wave controller behind the switch or in the panel is far cheaper than replacing them.

AC, DC or Battery Motor

Controllers are motor-specific. Shelly shutter modules switch bi-directional AC motors (120 V in the US), the Zooz ZEN53 reverses polarity on 6 to 32 V DC motors, and battery shades have the radio built into the tube motor. Check the motor label before you buy anything.

Z-Wave Generation & Region

700 and 800 Series devices bring S2 security, SmartStart QR pairing and, on some models, Z-Wave Long Range. Just as important is frequency: US and Canada use 908 MHz, Europe and the UK use 868 MHz, and the two never mix.

Position & Tilt Control

Good shade devices report a 0 to 100% position so “open to 40%” works in automations. Venetian modes on the Shelly and Zooz controllers also handle slat tilt, which matters for horizontal blinds and exterior louvers.

Power & Mesh Behavior

Battery shades need charging every few months (a solar panel removes that chore) and do not repeat the Z-Wave mesh. Mains-powered controllers act as repeaters and strengthen your network, but they mean wiring in a switch box or panel.

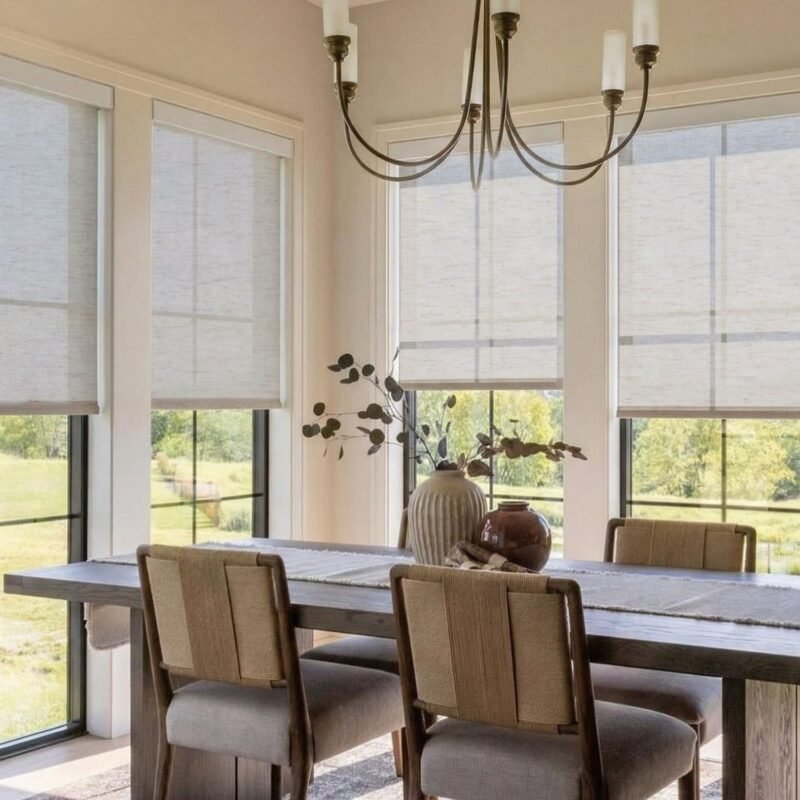

A plain roller shade is the cleanest-looking motorized window covering, and this 70% blackout light-filtering fabric is the one to pick for living rooms, kitchens and home offices where you want glare control without turning the room dark. It uses the same SmartWings tube motor family: SmartWings says it runs under 35 dB, lifts up to 5 kg, and lasts four to six months per charge, with USB-C or solar charging. Choose the Z-Wave (SW401) motor during Customize Now and it pairs with Hubitat, SmartThings and Home Assistant. A sunrise-to-sunset schedule plus a lux sensor makes this a genuinely useful automation, not just a gadget.

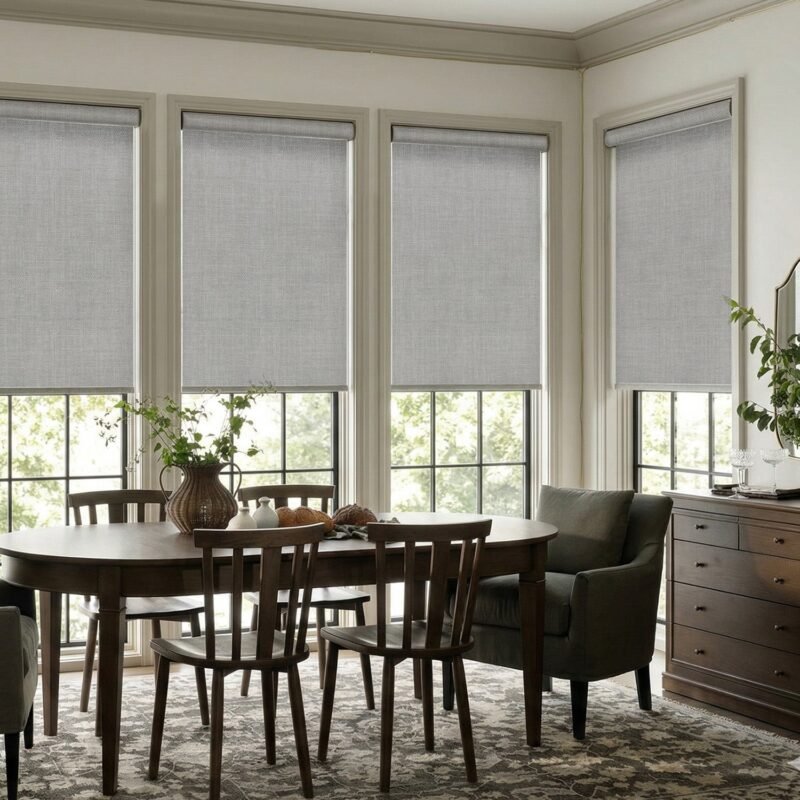

For bedrooms, nurseries and home theaters, the 100% blackout Vigor roller shade is the SmartWings fabric to choose. SmartWings describes it as a full room-darkening, UV-protected fabric that also helps with insulation. Paired with a Z-Wave motor, it can close automatically when the TV or projector turns on, lower itself at bedtime and open gradually as a wake-up alarm. Specs match pick #3: quiet under 35 dB, up to 5 kg load, rechargeable battery with USB-C or solar. For a truly dark room, order an inside mount with the cassette valance, or consider side channels, since any roller shade leaks a little light at the edges.

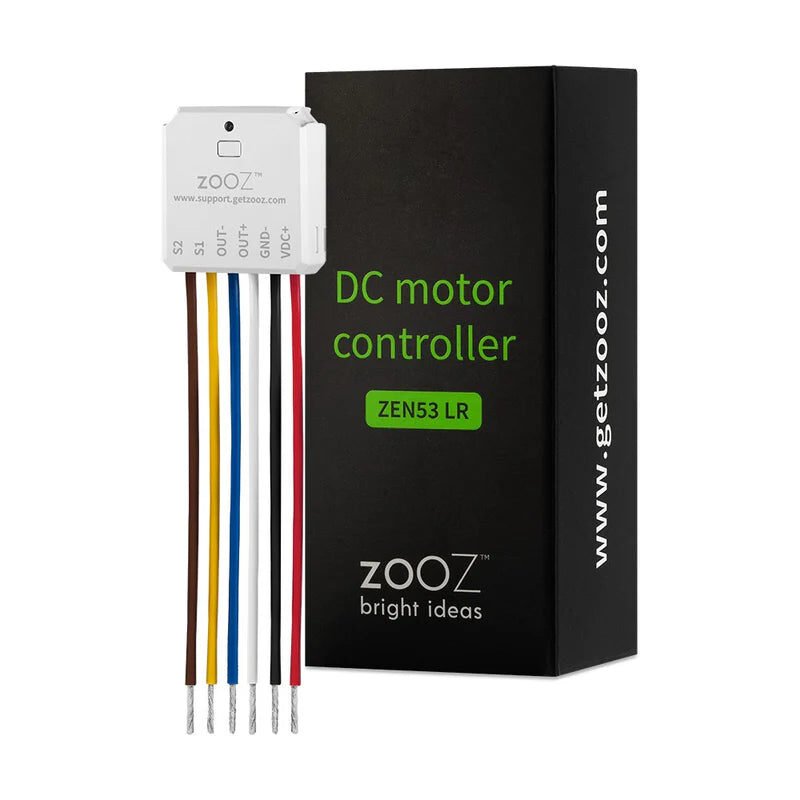

Many low-voltage shade, skylight and awning motors run on DC and change direction by reversing polarity, which the Shelly modules can’t handle. The Zooz ZEN53 is built for exactly that: it wires between your momentary up/down button switch and a 6 to 32 VDC motor drawing up to 1.5 A, and offers shutter (up/down with position) and venetian modes. The tiny 1.5 × 1.4 × 0.7 inch module uses a 700 Series chip with S2, SmartStart, a built-in repeater and Z-Wave Long Range support, which Zooz rates at up to 300 ft line of sight on mesh or up to a mile on LR. Zooz lists Z-Box, Home Assistant (Z-Wave JS), HomeSeer and Homey as supported, with custom drivers for Hubitat and SmartThings, and adds a 5-year warranty when registered. It is indoor-only and won’t work with dimmers or electronic switches.

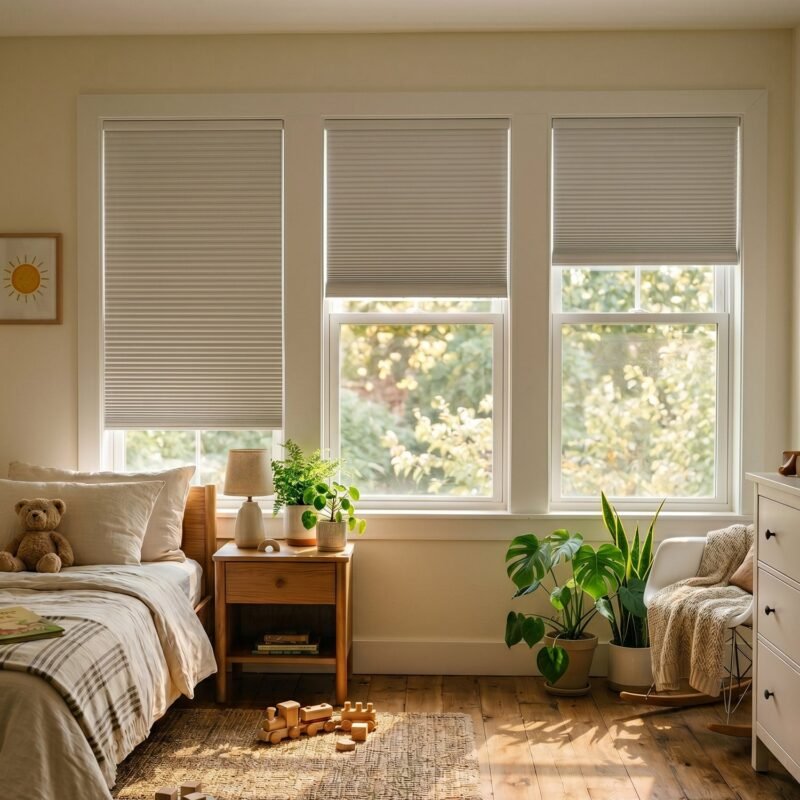

Cellular shades trap air in their honeycomb pockets, which makes them the best window covering for energy savings in hot summers and cold winters. SmartWings’ blackout version uses a 1-inch single-ply honeycomb with aluminum foil inside each cell, so it blocks light completely when lowered. The listing confirms Z-Wave, Zigbee and HomeKit motors as customization options. Combine it with a Z-Wave thermostat and a temperature sensor and your hub can close sun-facing shades before the AC has to work hard. The Amazon review count is still small, so read the measuring guide carefully.

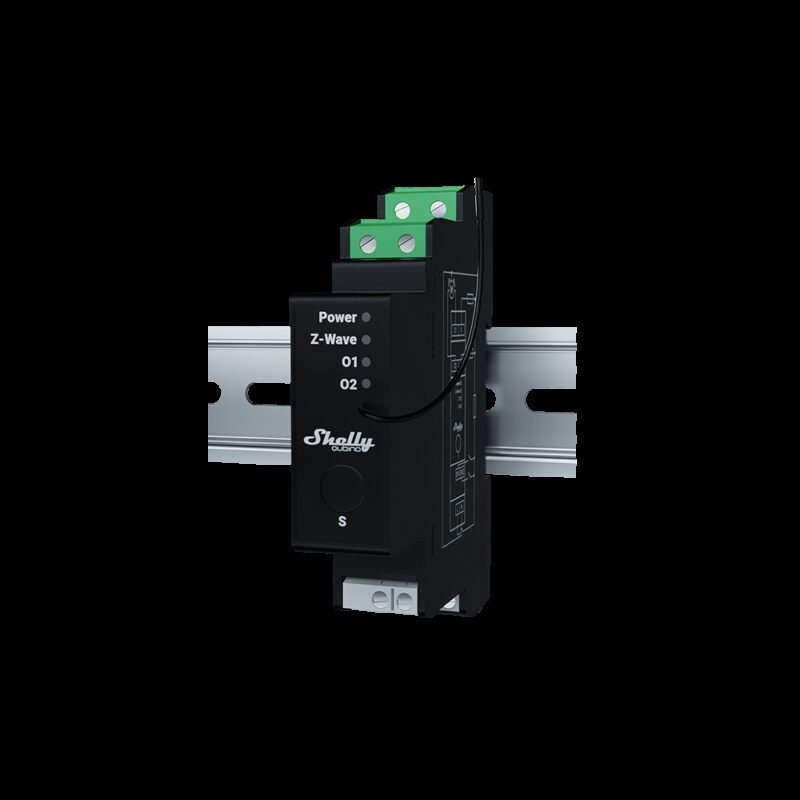

When shade motors are home-run to a central panel (common in new builds, offices and larger homes), the Shelly Wave Pro Shutter US mounts on a DIN rail inside the breaker box instead of behind a switch. It steps up to 16 A per channel with power metering, so it can drive bigger exterior shutters and awnings, and keeps the same 800 Series Z-Wave radio, position control and venetian tilt mode as pick #2. Shelly pitches it for scheduled office blinds and climate-aware shading. Note that Shelly also sells a newer Long Range version on its own store; this Amazon listing is the standard Pro Shutter US and has no Amazon reviews yet, so confirm the exact model on the listing before ordering.

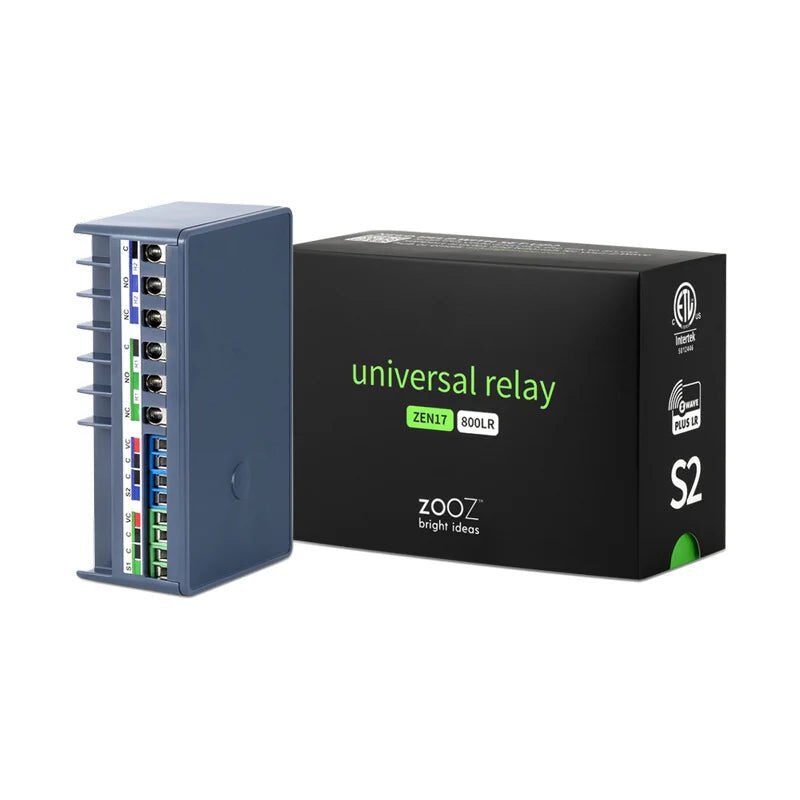

Some motorized awnings, screens and commercial shade systems don’t take a direct motor connection at all; they expose dry-contact up and down inputs on a control box. The Zooz ZEN17 800LR is the most-reviewed Z-Wave device in this guide and Zooz explicitly lists up/down DC motors in screens, motorized blinds and awnings among its uses. It has two independent dry-contact relays (normally open up to 20 A, normally closed up to 10 A) plus two inputs for 12 to 24 V or dry-contact sensors, so one unit can drive the up and down lines of a shade or awning. It is powered by 12 to 24 V AC/DC or USB-C, uses an 800 Series chip with S2, SmartStart and Long Range, and is ETL certified. The trade-off: your hub sees two relays, not a native shade with a position slider, so you’ll build open/close (and timed partial) logic yourself.

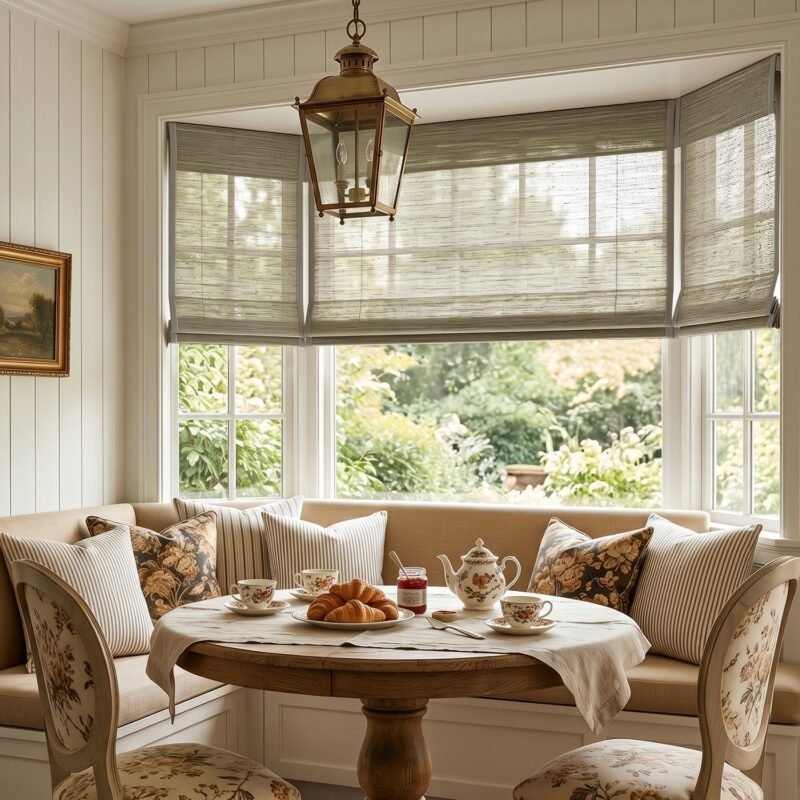

Not everyone wants a technical-looking roller. SmartWings’ woven wood shades bring jute, bamboo and linen textures with a choice of 50%, 70% or 100% blackout liners, and the listing title names Z-Wave alongside Matter, Thread and Zigbee as motor options. They suit farmhouse, coastal and boho rooms where a motorized shade should look like a regular one. Natural fibers vary from batch to batch and the weave lets some light through without a liner, so order a fabric sample first; this specific listing has no Amazon reviews yet.

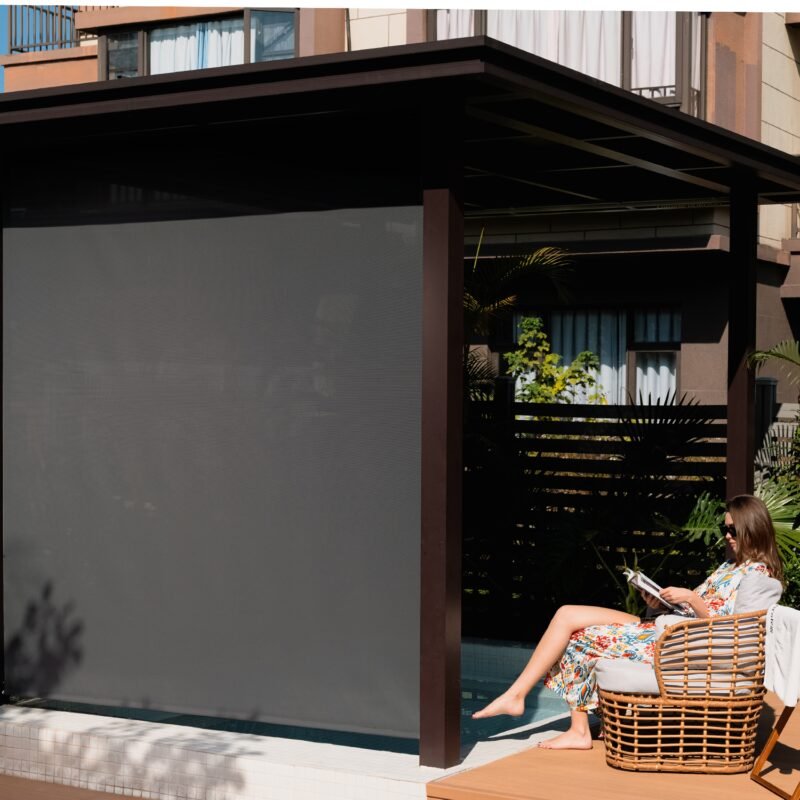

For porches, pergolas and lanais, SmartWings’ outdoor patio shades use a screen fabric that SmartWings says filters about 95% of UV, with a stainless wire guide system that it rates at wind level 5 and a waterproof valance. Outdoor is where Z-Wave earns its keep: it reaches a patio through exterior walls better than 2.4 GHz radios, and with a weather or wind sensor in Home Assistant you can retract the shades automatically before a storm. The solar panel option avoids running power outside. Keep a Z-Wave repeater (any mains-powered Z-Wave device) near the door so the battery motor has a solid link.

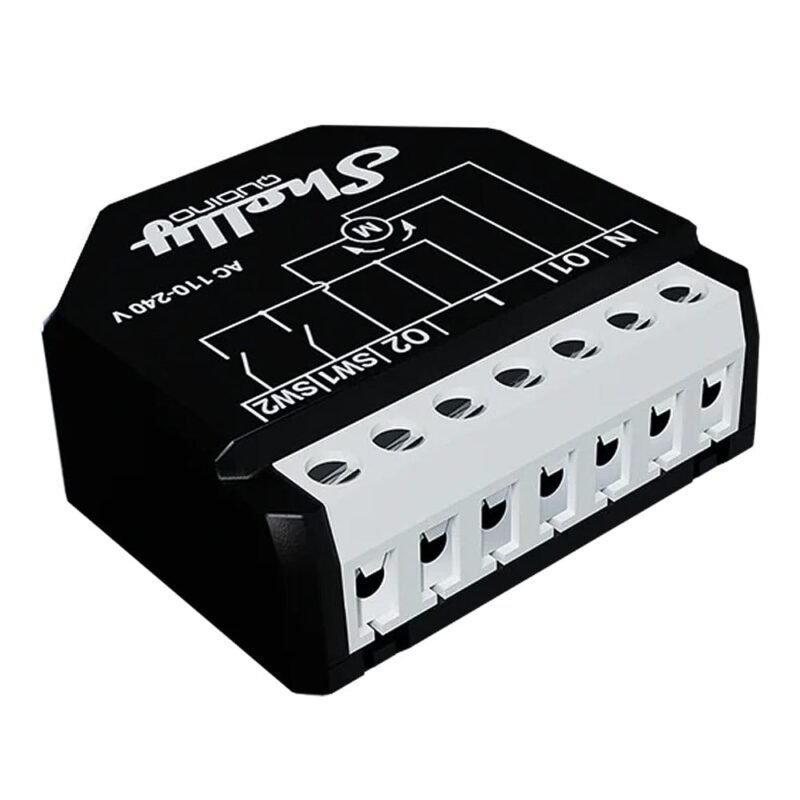

Roller shutters are everywhere in Europe, and the Shelly Qubino Wave Shutter is the European sibling of pick #2, with 115 Amazon ratings, more than any other shutter module here. It fits behind a wall switch, drives bi-directional 230 V AC motors at up to 10 A per channel, reports power use and supports slat tilt for venetian blinds, on an 800 Series radio with S2, SmartStart and OTA updates. Important: the Amazon listing image shows the 868.4 MHz (EU/CEPT) band. It will not pair with a US 908 MHz Z-Wave hub; buy it only if your controller is an EU/UK model.

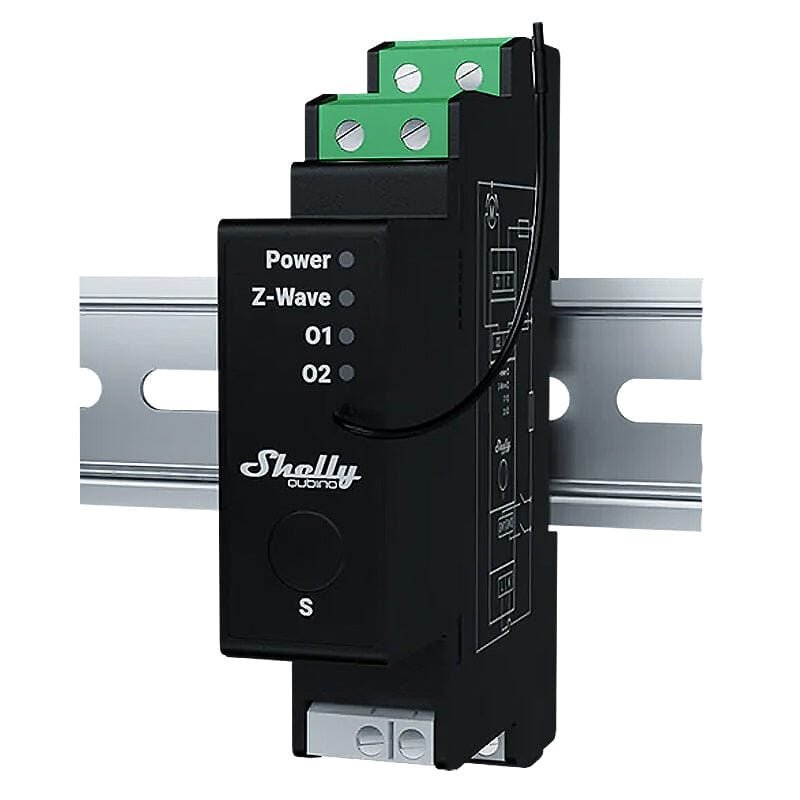

The EU version of pick #7 mounts in the consumer unit on a DIN rail and switches up to 16 A per channel with power metering, ideal for electricians automating a whole house of roller shutters or an office floor of blinds from one panel. The Amazon listing confirms the 800 Series chip on the 868.4 MHz CEPT band with SmartStart. As with pick #11, it is for EU/UK Z-Wave networks only. Stock is limited and there are only a few Amazon ratings, so it’s a niche pick for installers rather than a first purchase.

Starting from scratch, no wiring?

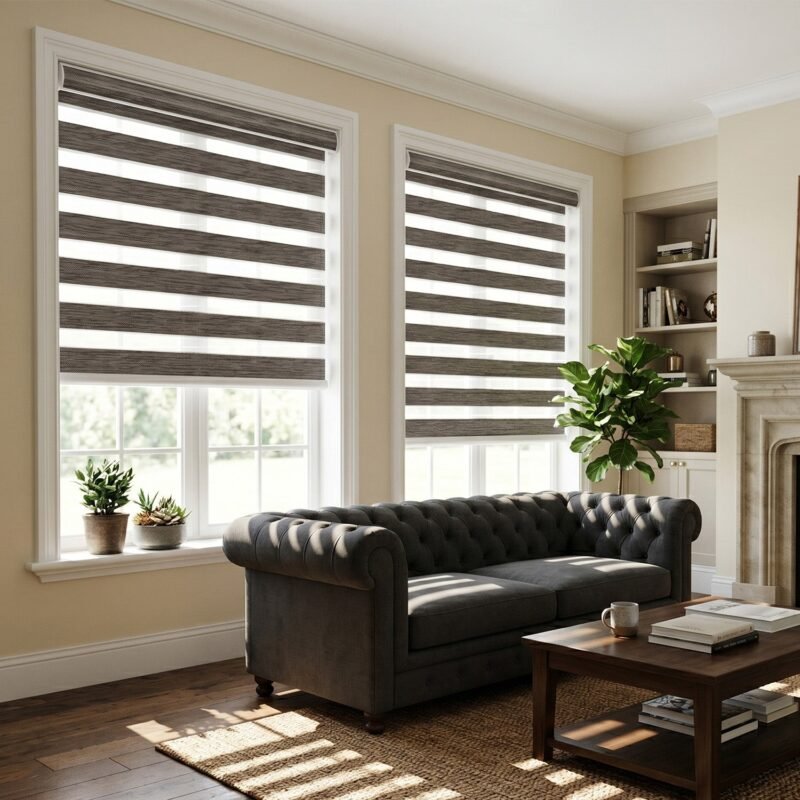

Order SmartWings zebra or roller shades with the Z-Wave motor. They’re battery powered, custom-fit and pair straight to your hub.

Already have wired AC shade motors?

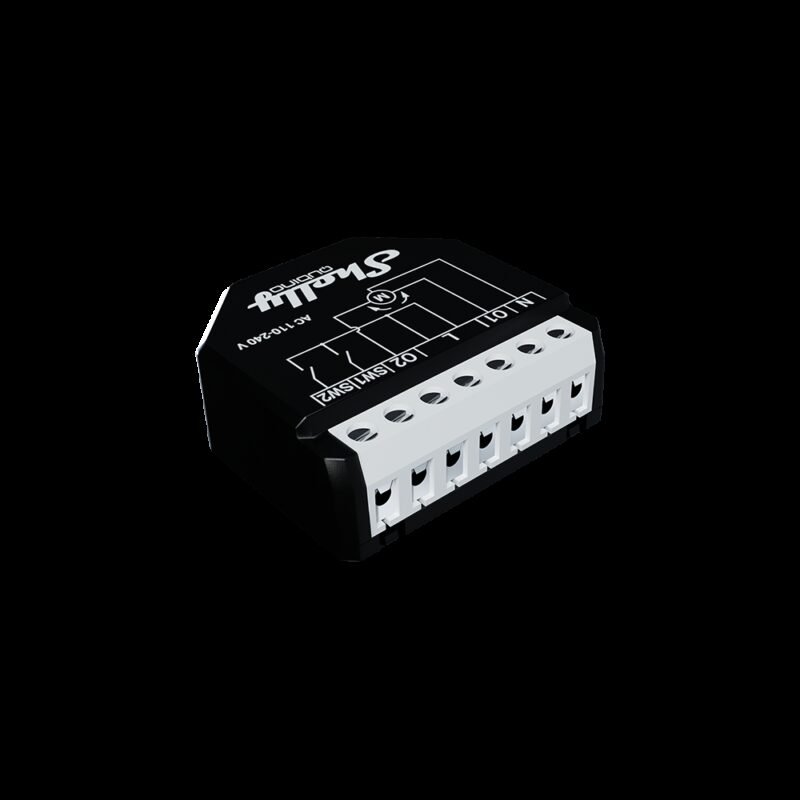

Put a Shelly Wave Shutter US behind each switch, or a Shelly Wave Pro Shutter US in the panel if motors are home-run.

Low-voltage DC motor?

The Zooz ZEN53 handles 6 to 32 VDC polarity-reversing motors up to 1.5 A, with shutter and venetian modes.

Awning or controller with dry contacts?

Wire the up and down inputs to a Zooz ZEN17 800LR and build open and close scenes in your hub.

Bedroom, nursery or theater?

Go with the SmartWings 100% Blackout Vigor roller or the foil-lined blackout cellular shade.

Living in Europe or the UK?

Use the 868 MHz Shelly Qubino Wave Shutter in-wall or the Wave Pro Shutter (EU) on a DIN rail, with an EU hub.

Do Z-Wave shades and blinds need a hub?

Yes. Z-Wave devices have no Wi-Fi, so they join a Z-Wave controller such as Home Assistant with a Z-Wave USB stick, Hubitat, SmartThings, Zooz Z-Box, HomeSeer or Homey, which runs your schedules and automations. A SmartWings shade still works from its own RF remote without a hub, and the Shelly modules keep your wall switch working, but remote control and automation need a controller. If you don’t have one yet, start with our guide to the best Z-Wave hubs and USB sticks.

Should I choose battery or hardwired Z-Wave shades?

Battery shades are the easy retrofit: no electrician, just brackets and a USB-C charge every few months (or a solar panel). Hardwired motors with a Shelly or Zooz controller never need charging, handle larger and heavier shades, and add Z-Wave repeaters to your mesh, but they require wiring at the switch box or panel. For a single window, battery wins; for a new build or a wall of large shades, hardwired is worth planning.

Can I make my existing Somfy, Bali or Graber shades work with Z-Wave?

Often, yes. Bali and Graber shades ordered with the factory Z-Wave motor pair directly with any Z-Wave hub. Somfy RTS shades need a bridge: Somfy’s Z-Wave to RTS Interface (ZRTSI, part 1811265) maps up to 16 RTS channels to Z-Wave nodes, but its Amazon listing is currently unavailable, and RTS is one-way, so your hub won’t know the shade’s real position. Hardwired AC or DC motors with up/down wall switches can usually be automated with the Shelly or Zooz controllers in this guide, provided the motor type and current match.

Will a US Z-Wave shade controller work in Europe or Asia?

No. Z-Wave uses different frequencies by region (908 MHz for the US and Canada, 868 MHz for Europe and the UK, and other bands elsewhere), and devices only pair with a controller on the same band. The US Shelly modules are also built for 120 V. That is why this guide lists the 868 MHz Shelly Qubino Wave Shutter and Wave Pro Shutter separately for EU/UK readers; always match the device, the hub and your mains voltage.

Do Z-Wave shades work with Alexa, Google Home or Apple Home?

Through your hub. SmartThings, Hubitat and Home Assistant can expose Z-Wave shades to Alexa and Google, so “Alexa, close the living room shades” works. For Apple Home and other Matter ecosystems, use a hub that bridges Z-Wave into Matter; our guide to the best Matter bridges for Zigbee and Z-Wave covers the options. If you’d rather skip Z-Wave entirely, see our best Matter smart blinds and shades guide.
