Surface Resistivity

The number that separates a real ESD mat from a rubber sheet. You want static dissipative, roughly 10⁶ to 10⁹ ohms. Too conductive and charge dumps through your part; too insulative and nothing drains at all. If a listing quotes no figure, assume there isn’t one.

Heat Resistance

Vinyl and polyester mats melt under a dropped iron. Two-layer rubber mats shrug off solder splashes and hot-air rework, and silicone mats handle even higher temperatures. If you solder on the surface, buy a high-temperature mat, not a general-purpose one.

The 1 MΩ Resistor

Every legitimate wrist strap has a 1 megohm resistor in the ground cord. It bleeds static safely while limiting current if you ever touch a live conductor. A strap with a bare wire and no resistor is not a safety device, it is a hazard. Check the listing explicitly.

Snap Size & Cord Length

Mats and bands use 4 mm, 7 mm or 10 mm snaps, and they are not interchangeable. Buy a strap whose snap matches your mat, or one that also offers a banana plug and an alligator clip. Cord length decides how far you can lean back without unclipping yourself.

Size & Coverage

A mat only protects what sits on it. A 2 ft × 3 ft mat covers a realistic working area with room for a soldering station and a board; a 12 in pad covers a phone screen and little else. Measure your bench and buy one size larger than you think you need.

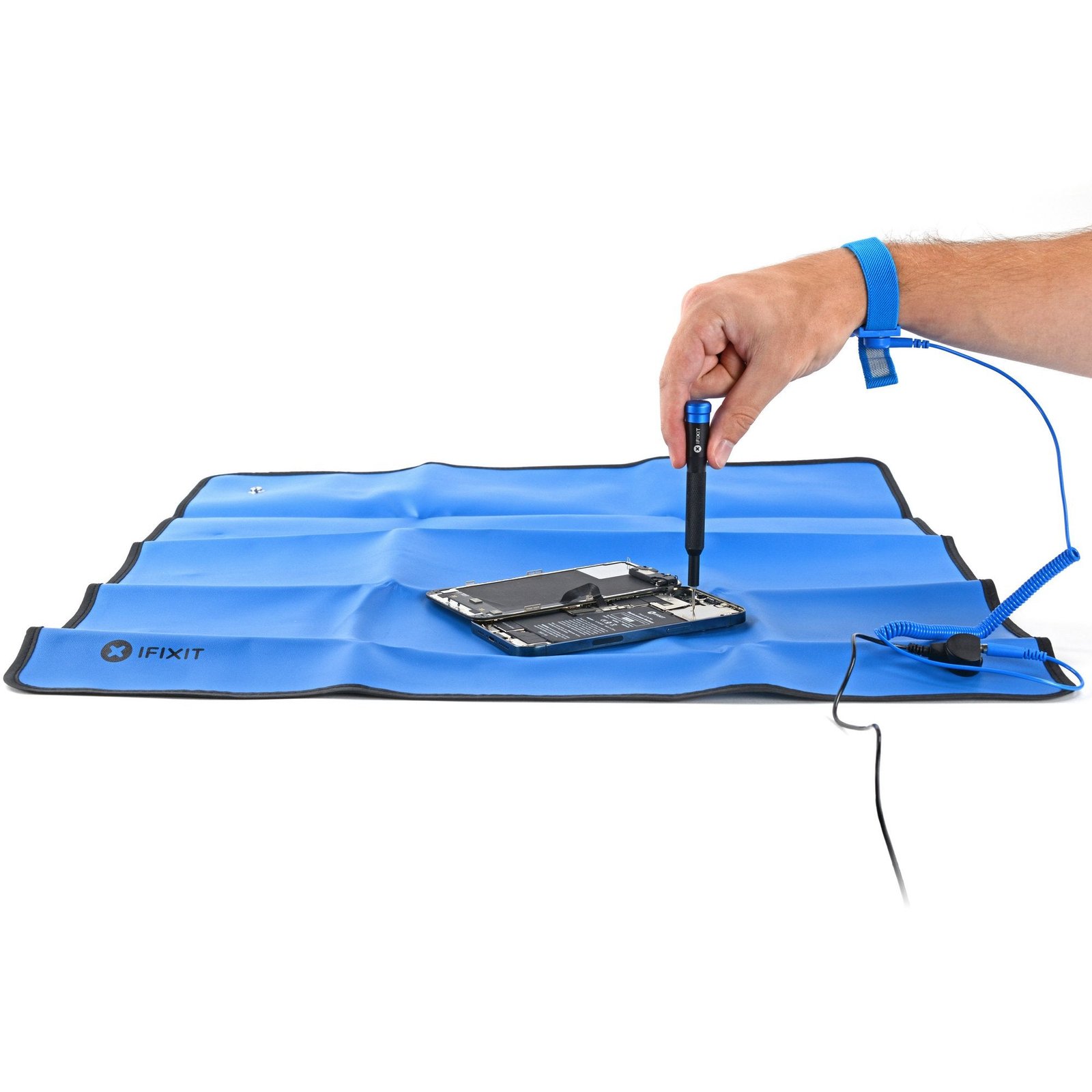

iFixit built this one for technicians who work wherever the device is. The 24 in × 24 in polyester mat rolls up into a bag, then unrolls into a proper dissipative worksurface measured at 10⁷ to 10⁹ ohms, designed against ESD S4.1 and S20.20. It ships with a 10 mm grounding snap, a grounding wire with a clip, and a 6 ft 1 MΩ wrist strap adjustable to XL, so a complete station goes in your backpack. It is the natural companion to phone, laptop and tablet repair work, where you are opening sealed devices on a kitchen table rather than a bench.

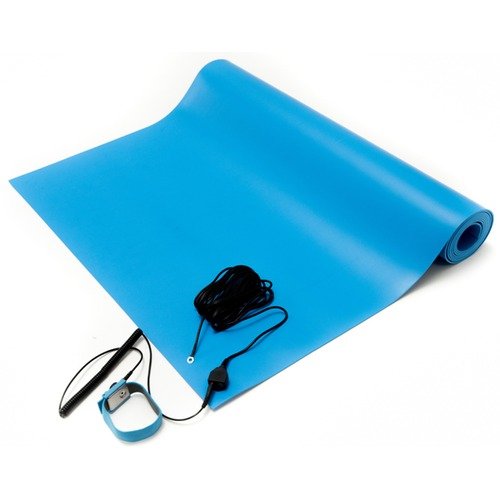

The 1059 series is Bertech’s everyday bench mat: a single-layer homogeneous ESD polymer, slightly thicker at 0.094 inches, with a kid-grain texture that stops small parts sliding around. It is quoted at 10⁹ to 10¹⁰ ohms at 100V, which is the insulative end of the dissipative window, so it drains charge more gently than the high-temperature rubber mat. That is fine for assembly, inspection, PC building and general handling of boards and modules. Like the high-temp kit, it arrives with a fabric wrist strap and a grounding cord, and it is made in the USA with a 900 lbs/in² tensile rating that shrugs off years of bench abuse.

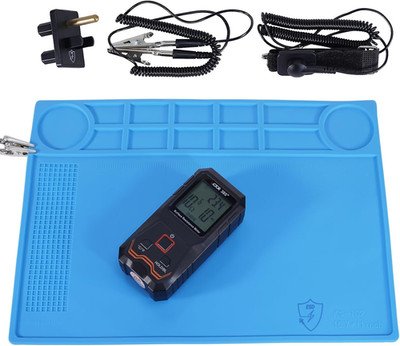

For the price of a couple of spools of solder, the Kaisi ESD-102 kit gets a hobby bench from nothing to something. It is a 15.75 in × 11 in silicone mat rated to 932°F, so hot irons, tweezers and blobs of solder do no damage, and it is moulded with a built-in ruler, roughly 240 screw wells, 10 parts areas and rosin pockets, which is genuinely useful for phone and laptop teardowns. The box includes an anti-static wrist strap, a grounding wire and a grounding plug, so there is a complete path to earth out of the packet. Kaisi quotes surface resistivity around 10⁶ ohms, which sits at the conductive end of the dissipative window: fine for handling unpowered boards, but it is not a substitute for a measured 10⁷–10⁹ worksurface in a compliant lab, and you should never rest a powered board on it.

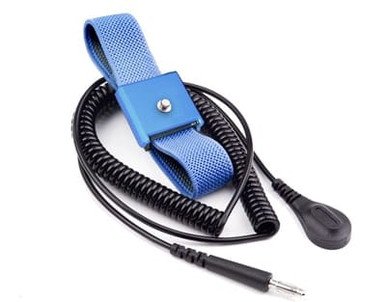

The single most annoying thing about buying a wrist strap online is discovering that its snap does not fit your mat. StaticTek’s WO5 set solves that by shipping every option at once: a 6 ft black coil cord with a 10 mm snap at the band end, plus a banana plug and a 4 mm alligator clip at the ground end, so it connects to a mat’s banana jack, a common-point ground cord or a bare chassis screw without an adapter. The band itself is a soft hypoallergenic blue woven fabric that adjusts up to XL and stays comfortable over a long session. StaticTek is the consumer line from Transforming Technologies, and the same band and cord families are specified against ANSI/ESD S20.20 and ESD S1.1.

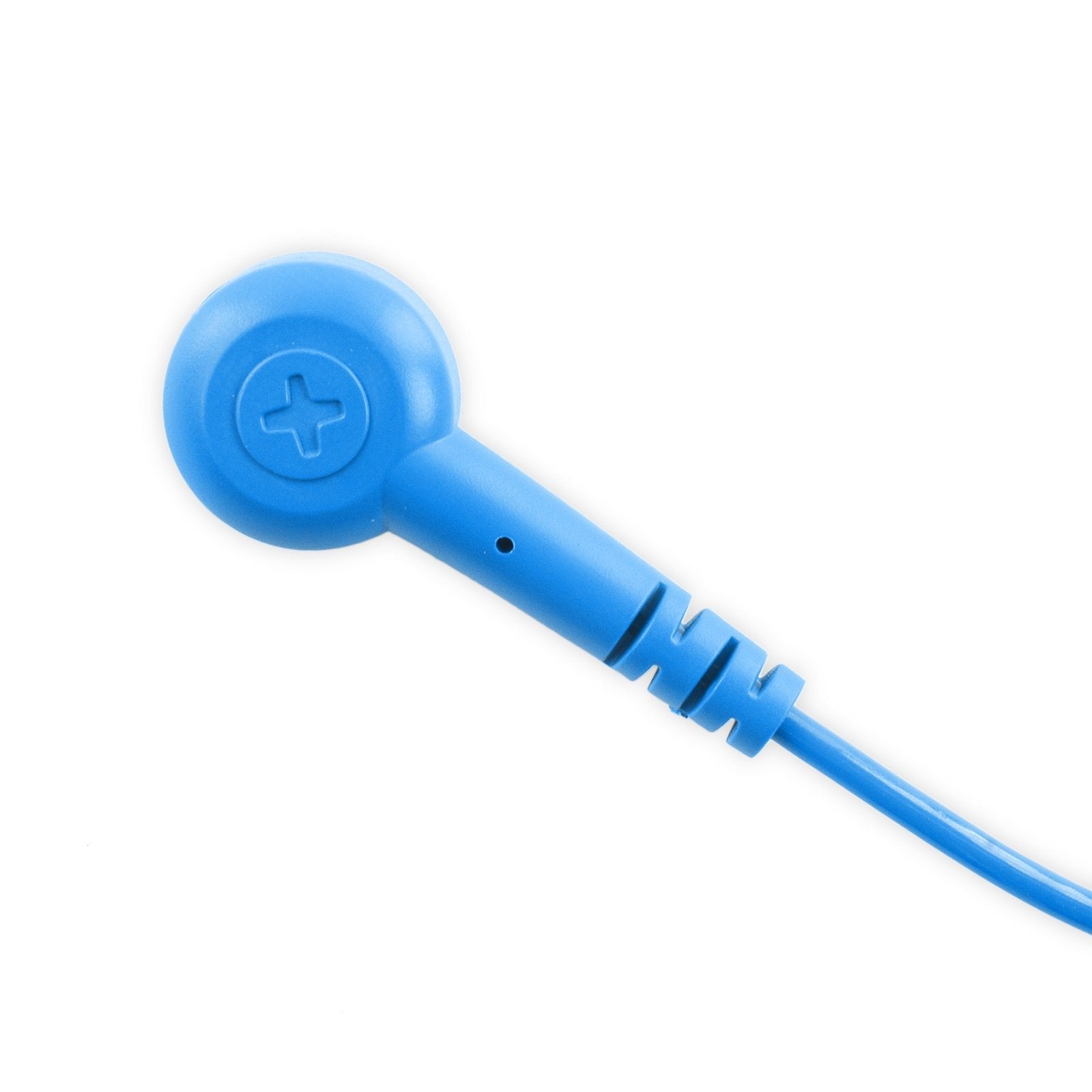

Most cheap wrist straps are sized for production-line use in Asia and simply will not close comfortably on a larger wrist, which is why people give up wearing them. iFixit had this one made specifically wider, a 0.75 in × 8 in unstretched band of polyester and stainless steel weave with an adjustable buckle that reaches XL. The 2 m coiled cord carries the mandatory 1 megohm resistance and ends in an alligator clip. There is nothing clever going on here, it is simply the strap that is most likely to still be on your wrist an hour into a job, and it pairs naturally with iFixit’s portable mat.

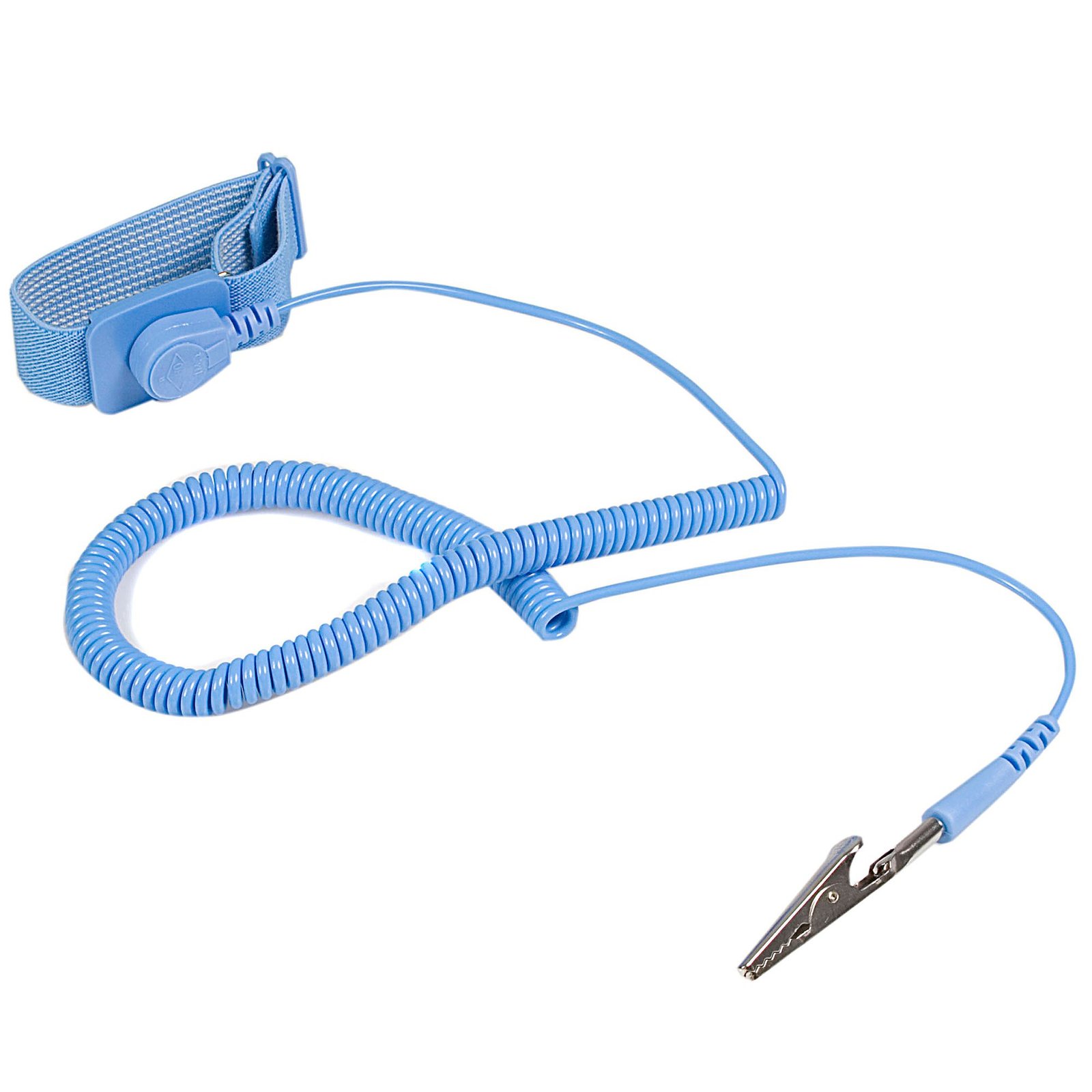

The SWS100 has been StarTech’s answer to “I am building a PC this weekend and I do not own a strap” for two decades, and the 4.5/5 average across a very long review history says it does the job. StarTech specifies a static dissipative band rather than the plain conductive material used in throwaway straps, a 6 ft (1.8 m) grounding cord with an alligator clip for the case chassis, and claims it exceeds IBM and US military static control requirements. It is TAA compliant, which matters if you are buying for a government or enterprise IT department. It is not a bench system, it is the strap you clip to a PC case, and it is priced accordingly.

Soldering and rework bench?

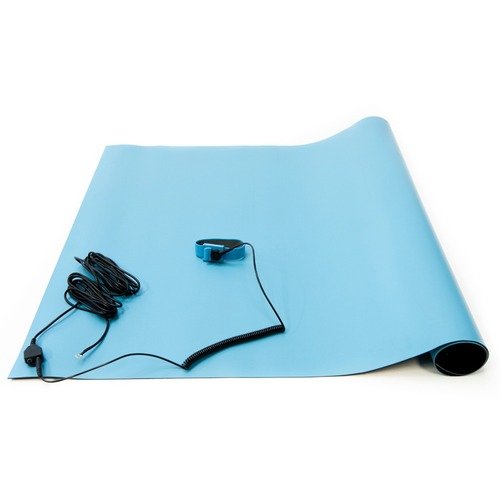

Get the Bertech ESD High Temperature Mat Kit. Two-layer rubber that survives irons and hot air, with the strap and 15 ft ground cord included.

Need documented compliance?

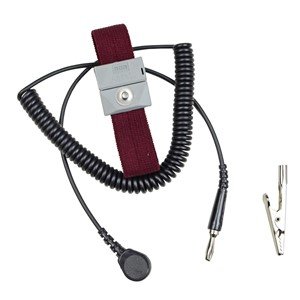

Pair a Bertech mat with the SCS 2214. Published ANSI/ESD S20.20 qualification data and replaceable band and cord.

Repairing devices on the move?

The iFixit Portable Anti-Static Mat rolls into a bag and unrolls into a full 24 in square grounded station.

Starting out on a tight budget?

The Kaisi silicone mat kit gives you mat, strap, wire and grounding plug for the price of a decent tweezer set.

Assembly bench, no iron?

The Bertech ESD General Purpose Mat Kit is thicker, textured and cheaper, and it is ideal for handling and inspection.

Just building a PC?

Clip the StarTech SWS100 to the case chassis. No mat required, and it costs less than one stick of RAM.

Do I really need an ESD mat for Arduino and ESP32 projects?

For plugging a jumper into a dev board, honestly no. Boards like the Arduino Uno and most ESP32 modules have series resistance, protection diodes and a soldermask between you and the sensitive silicon, and thousands of people build projects on a wooden desk without incident. Where it starts to matter is the moment you handle bare parts: loose MOSFETs, MEMS sensors, nRF52 or STM32 chips out of tape, memory modules, or any board with the case off. It matters even more in dry winter air or an air-conditioned room. The failure mode that should worry you is latent damage, where a weakened junction passes your bench test and dies in the field months later. A mat and strap cost less than one replacement prototype run.

Why does a wrist strap need a 1 megohm resistor?

Two reasons, and both matter. First, safety: if your wrist were wired straight to earth and your hand touched a live conductor, you would become a very efficient path to ground. A 1 MΩ resistor limits that current to a level that will not kill you. Second, control: static needs to drain slowly. A dead short would discharge your body in nanoseconds, and that fast, high-current pulse is exactly what damages parts. The megohm resistor turns the discharge into a controlled trickle. Any strap sold without one is not an ESD product, whatever the listing says. Note that the resistor lives in the cord, so replacing a cheap cord with bare wire defeats the whole design.

Where exactly do I connect the grounding cord?

The standard method is the centre screw of a grounded mains outlet cover plate: remove the screw, slip the cord’s ring lug over it, and screw it back. That screw is bonded to the outlet box and therefore to protective earth in correctly wired installations. The alternative is a purpose-made grounding plug that only connects to the earth pin, which is what the Kaisi and iFixit kits supply. Two cautions. If your outlet is ungrounded, or you are in an older building with two-pin sockets, none of this works and you need a dedicated earth connection. And never connect to a gas pipe, a radiator, or the neutral pin. The correct wiring order is mat to common-point ground, wrist strap cord to that same point, then the common point to earth.

Can I solder directly on an anti-static mat?

Only on a mat that says it is rated for it. Vinyl and polyester surfaces, including the iFixit portable mat, will scar or melt under a dropped iron and a melted spot is no longer dissipative. Two-layer rubber mats like the Bertech 2059T are built for exactly this and shrug off solder splash and hot-air rework, and silicone mats such as the Kaisi kit tolerate even higher temperatures. Whatever you use, do not rest the iron tip on the mat, use the stand, and keep a brass wool cleaner nearby. For serious rework, put a dedicated silicone soldering pad on top of a dissipative rubber mat: the silicone takes the heat, the rubber underneath handles the charge.

How do I know my ESD setup is actually working?

You measure it. A surface resistance meter with two 5 lb probes is the proper tool, and it should read somewhere in 10⁶ to 10⁹ ohms point to point on the mat and 10⁶ to 10⁹ ohms from mat to ground. For wrist straps, a simple wrist strap tester checks the whole path through band, skin and cord in a second and is worth the small cost if you use a strap daily. Without instruments, a multimeter on its highest range across two points of the mat at least tells you it is not an insulator. Remember that bands are consumables: conductive fibres break, skin oils build up, and a strap that tested fine last year can silently be open circuit today. Test weekly, wash the band occasionally, and replace it annually.
