Accuracy, Not Resolution

Resolution is the smallest step the display shows (usually 0.0005″ / 0.01 mm). Accuracy is how close that reading is to the truth. Look for a stated ±0.001″ (±0.02 to 0.03 mm) and a repeatability figure from a brand that actually publishes one.

Absolute vs Incremental Encoder

Incremental calipers count movement from wherever you zeroed them, so they can lose zero if the slide moves too fast or the battery dips. Absolute calipers (Mitutoyo ABSOLUTE, iGaging Absolute Origin) remember the true origin even after power-off.

Battery Life

Cheap calipers often keep sipping current while the screen is “off” and drain a coin cell in weeks. Absolute-encoder models and proper auto-off designs last far longer. If you hate dead batteries, a dial caliper needs none at all.

IP Rating

IP54 means splash and dust resistant, which matters if you measure near a CNC, sanding station or resin printer. Unrated calipers can glitch when dust or oil gets under the scale.

Data Output

An SPC, USB or RS232 port lets you send readings to a PC, spreadsheet or even your own Arduino or ESP32 data logger. Great for QC of printed parts or batch inspections, but usually needs a cable sold separately.

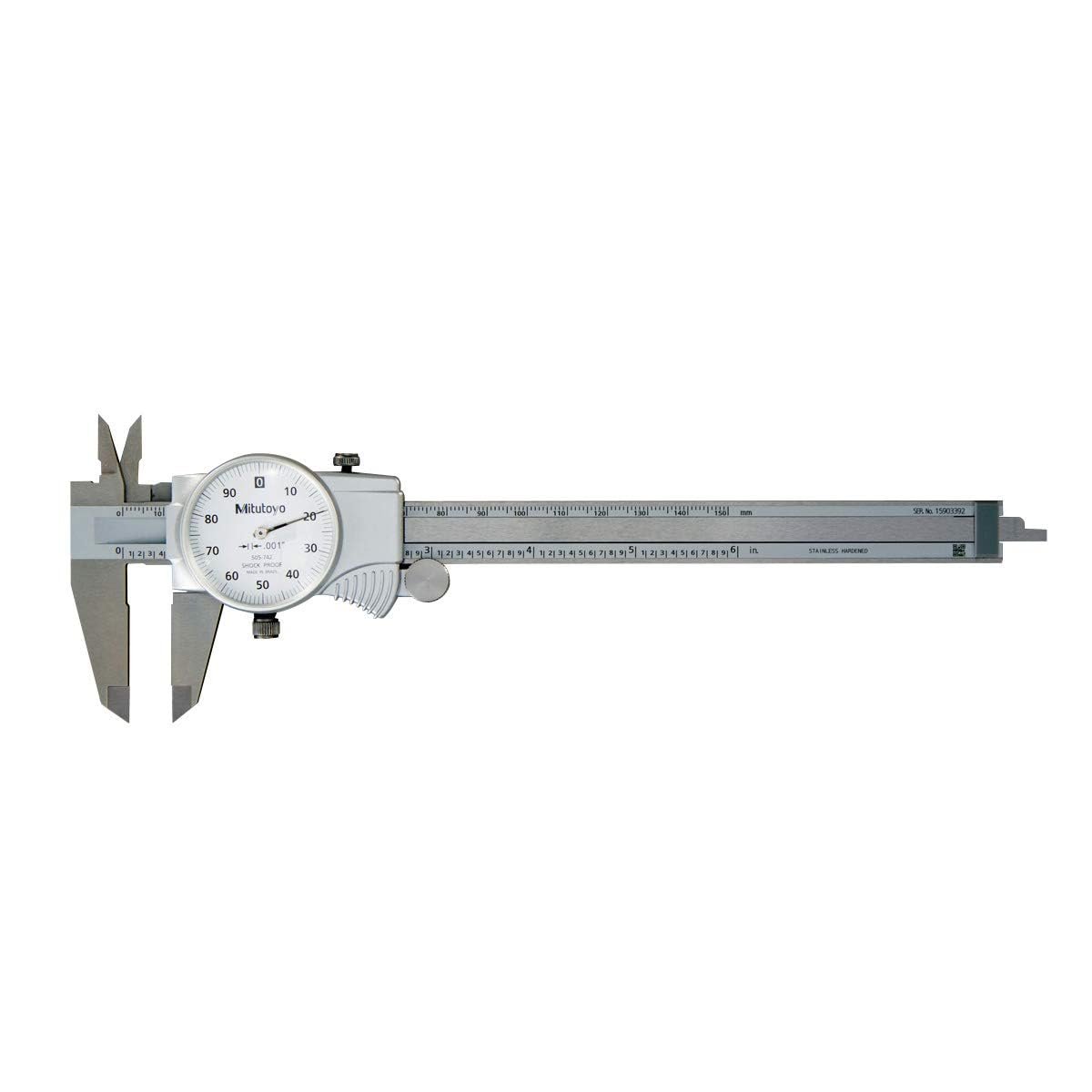

Not everyone wants a screen. The Mitutoyo 505-742J dial caliper measures outside, inside, depth and step with genuine Mitutoyo accuracy, and it never needs a battery. The glare-reducing satin chrome finish, improved dial face and lock screws for both the bezel and jaw make it easy to read and repeat. It’s a great choice if your caliper lives in a drawer for weeks between uses, where coin cells quietly die. The trade-off is no instant inch/mm conversion and a dial that can be knocked out of zero by a hard drop.

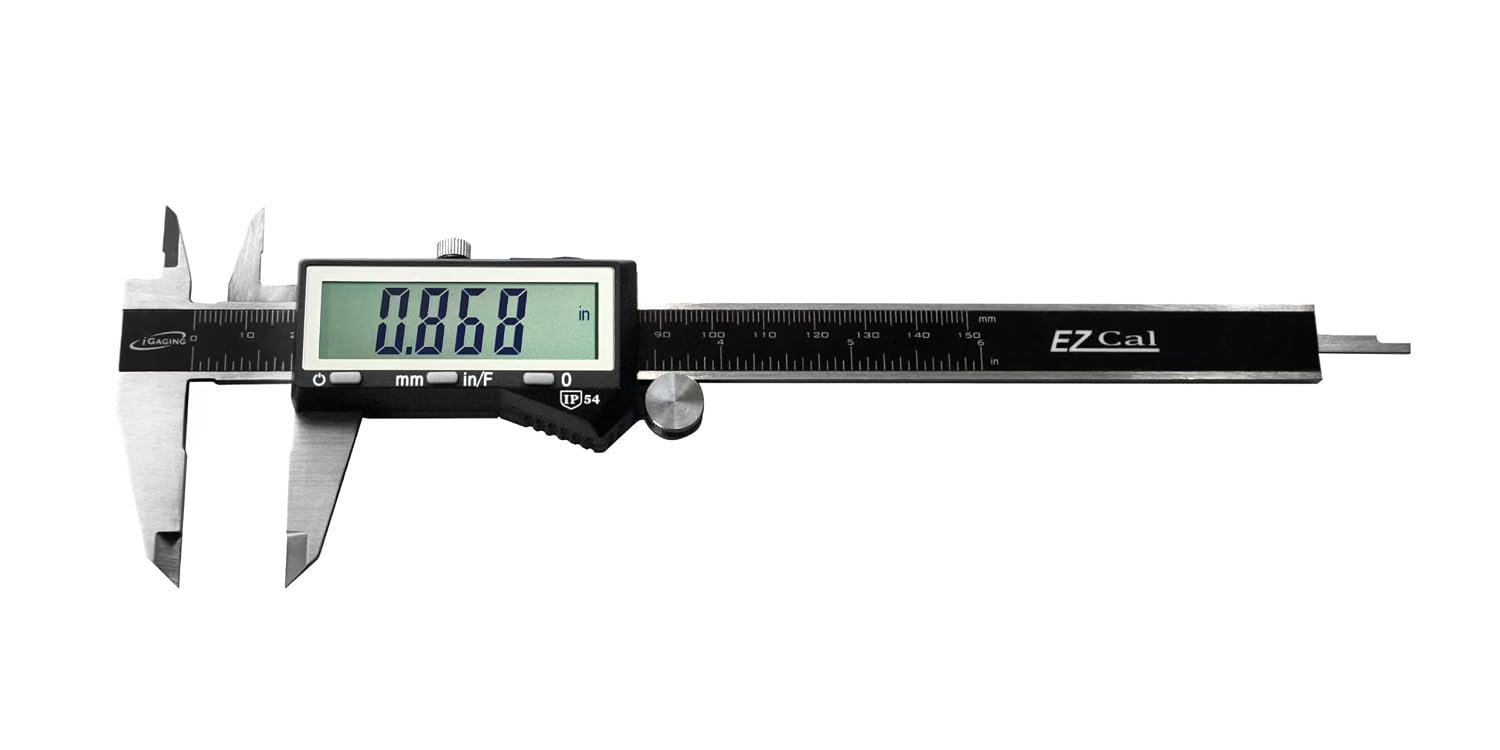

The iGaging IP54 caliper is built around its super-large 2-3/8″ x 7/8″ display, which is a real help when you’re squinting at a part in bad light or measuring at arm’s length. It reads inch, metric and fractions, has a hardened stainless body with a lapped finish, and iGaging actually publishes a 0.0005″ repeatability figure, which many budget brands don’t. It lacks the Absolute Origin encoder and data port of our value pick, but for pure everyday measuring it’s a very popular, dependable workhorse.

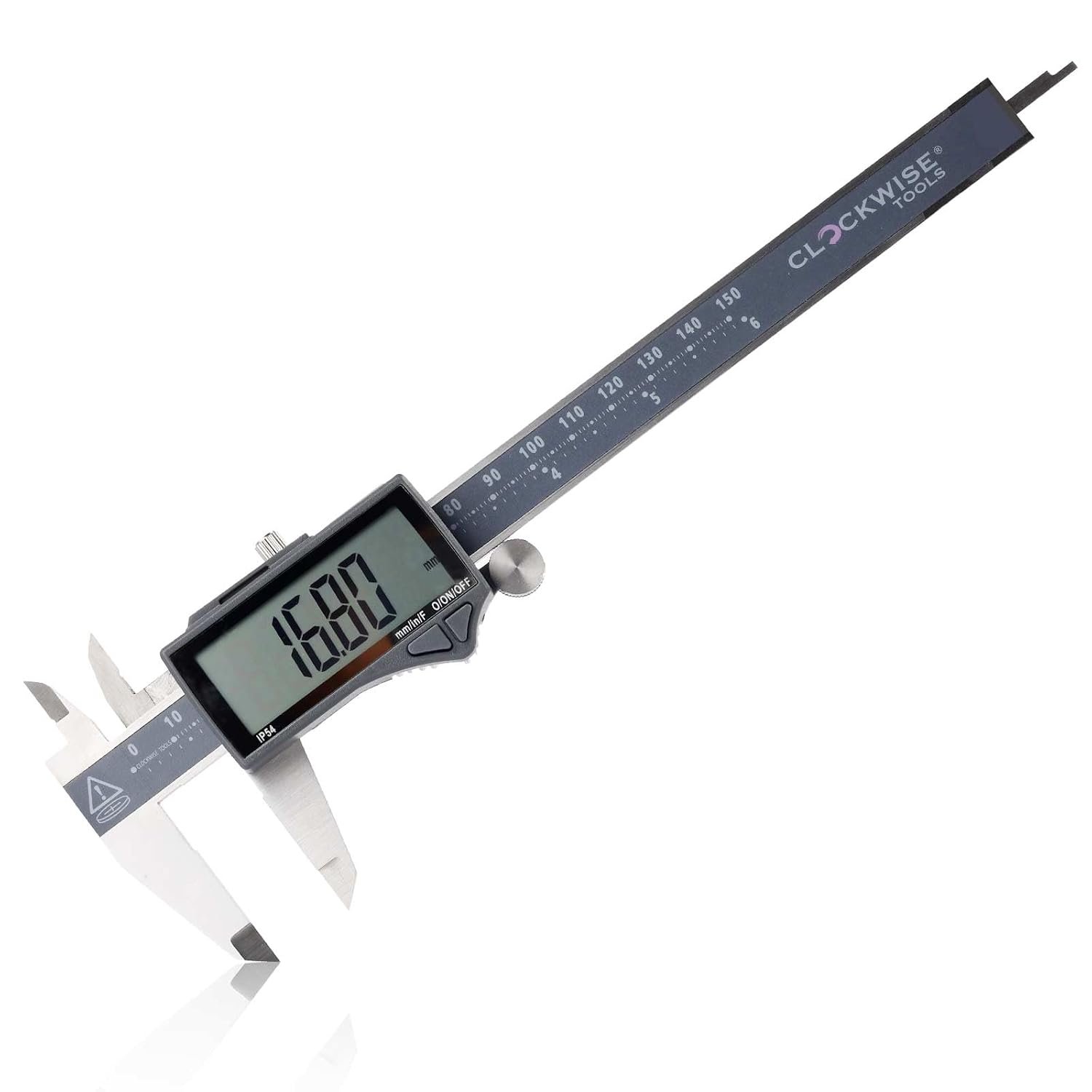

The Clockwise Tools DCLR-0605 punches well above its price with IP54 water and dust resistance, inch/metric/fraction modes and an extra-large 3/4″ x 2″ LCD. Makers who like to tinker will appreciate the RS232 data port: with Clockwise’s DTCR-02 cable (sold separately, and not USB) you can pull readings into a PC. It’s a favorite for 3D printing, woodworking and automotive jobs where a caliper takes some abuse.

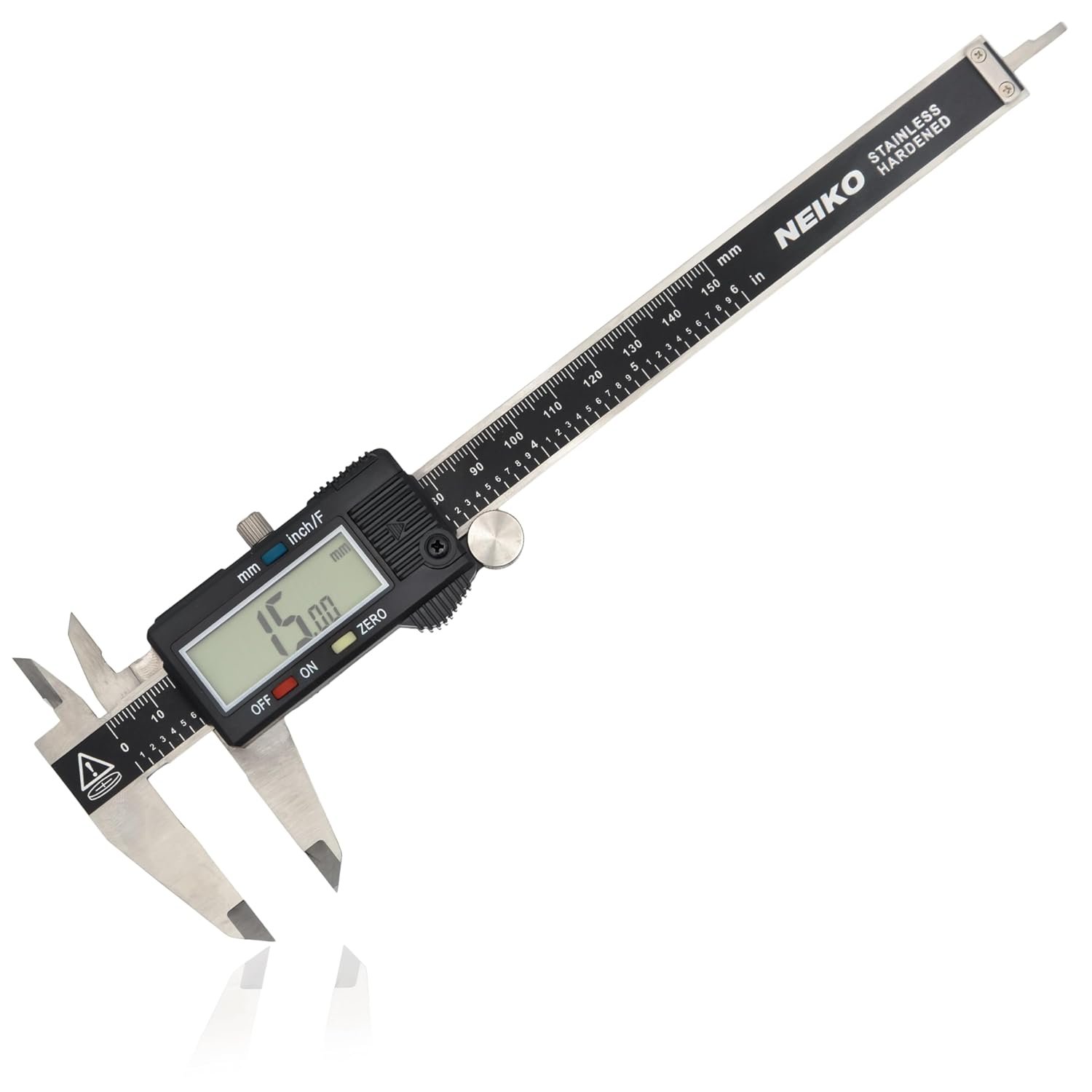

With tens of thousands of Amazon ratings, the NEIKO 01407A is probably the most-bought hobby caliper on the planet, and for good reason. It measures outside, inside, depth and step, switches between inch, fraction and millimeter with one button, and has a large LCD, a thumb roller and a locking screw. It’s perfect for a first caliper, a spare for the 3D printer shelf, or a tool you won’t cry over if it goes missing. Just keep expectations realistic: it’s splash and dust resistant rather than IP-rated, and battery drain and zero drift are more common than on the premium picks.

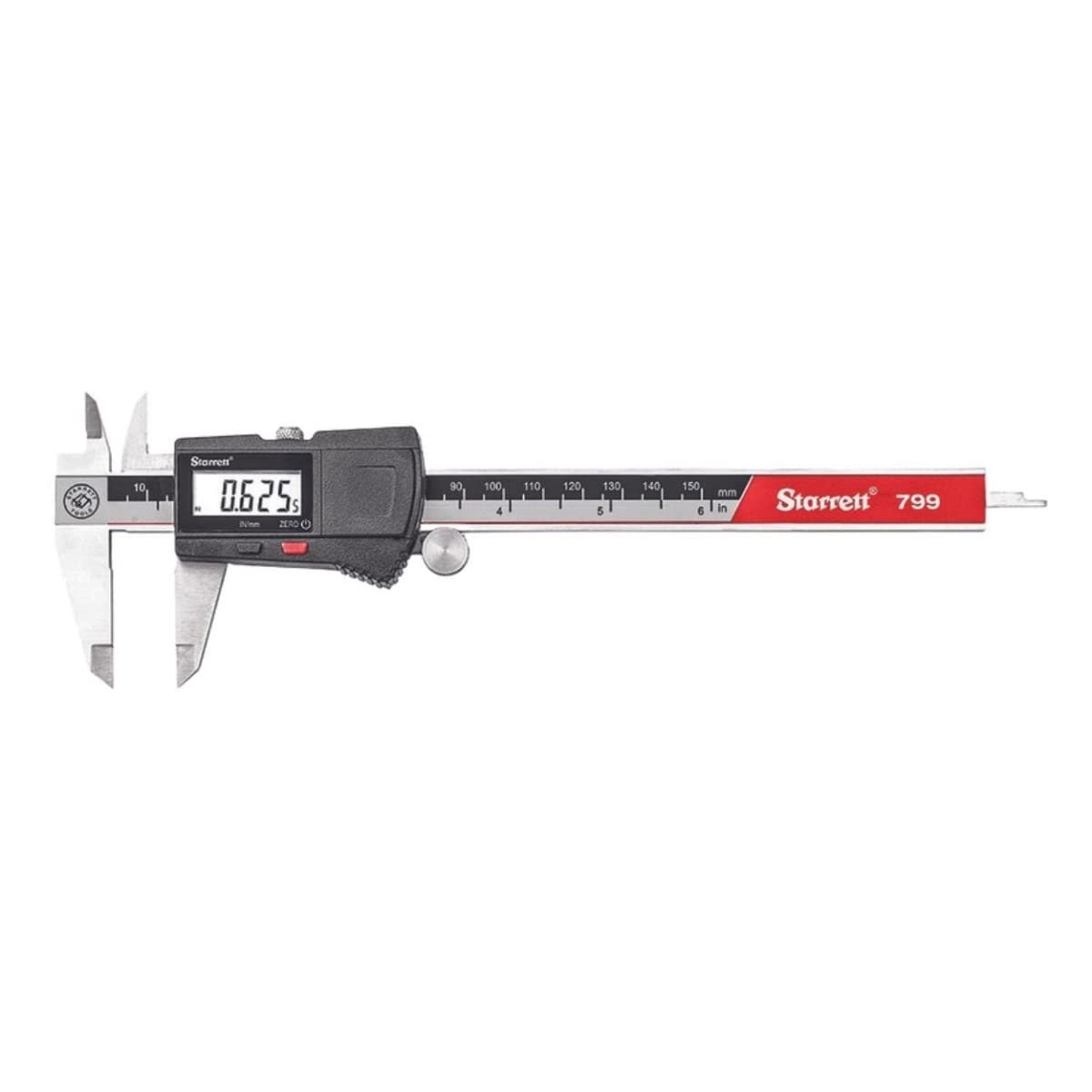

Starrett has been a machinist’s name for well over a century, and its electronic slide caliper is a strong alternative if you prefer a heritage American brand. The hardened stainless measuring surfaces resist wear and corrosion, the high-contrast LCD is easy to read, and it turns off after 30 minutes without losing position: any slide movement or button press wakes it right back up. It’s light and comfortable in the hand and reads ±0.001″ in inch mode.

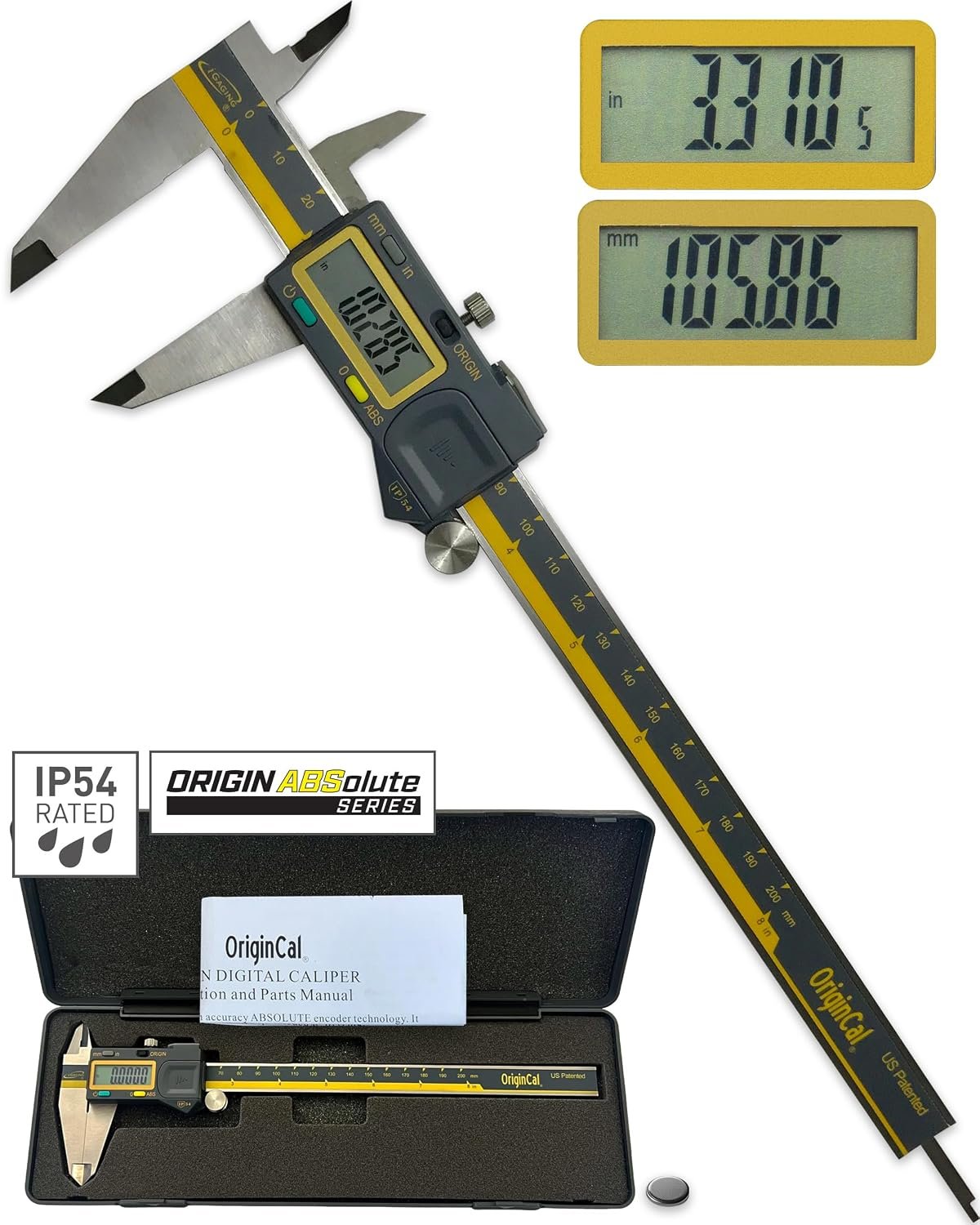

Six inches is plenty for most electronics work, but printer frames, robot chassis, aluminum extrusions and larger enclosures quickly outgrow it. The iGaging Absolute Origin 0-8″ gives you the same absolute zero retention, IP54 protection and SPC/USB output as our value pick with 200 mm of travel. The longer beam is slightly less handy for tiny parts, and the stated accuracy loosens to ±0.0015″, but it’s the most practical upgrade when your projects get bigger.

Want a lifetime, precision tool?

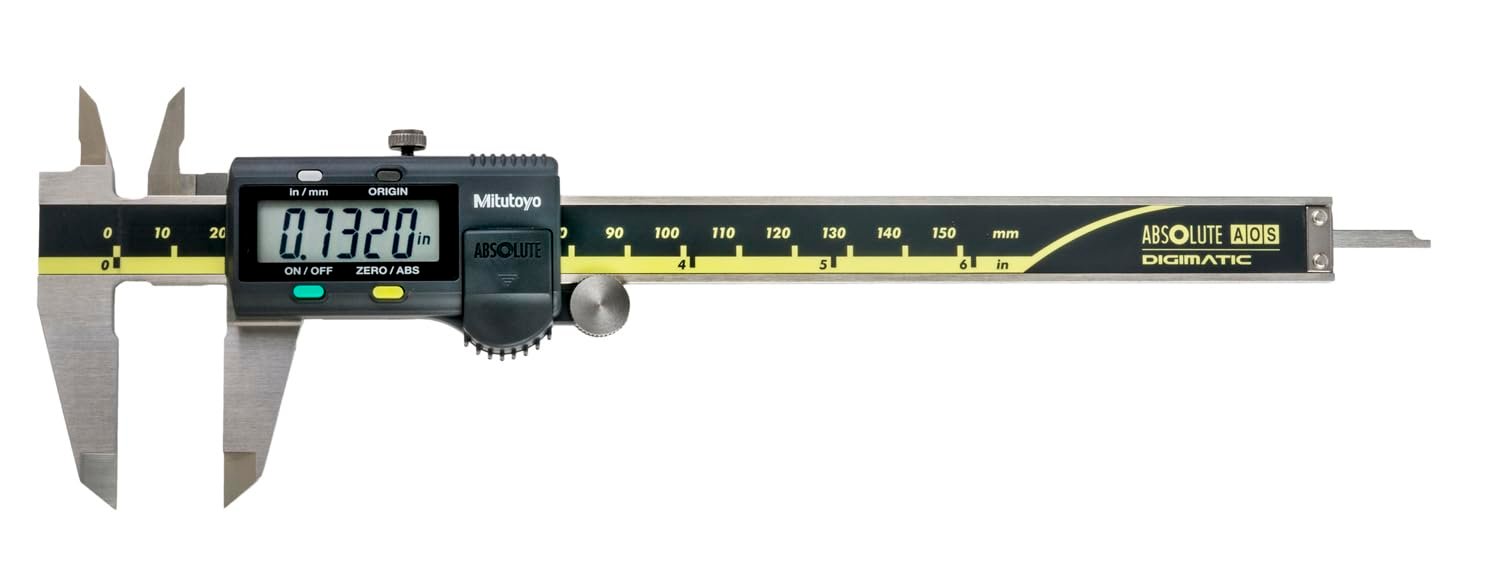

Get the Mitutoyo 500-196-30. The absolute encoder and build quality make it the last caliper you’ll buy.

3D printing and enclosure design?

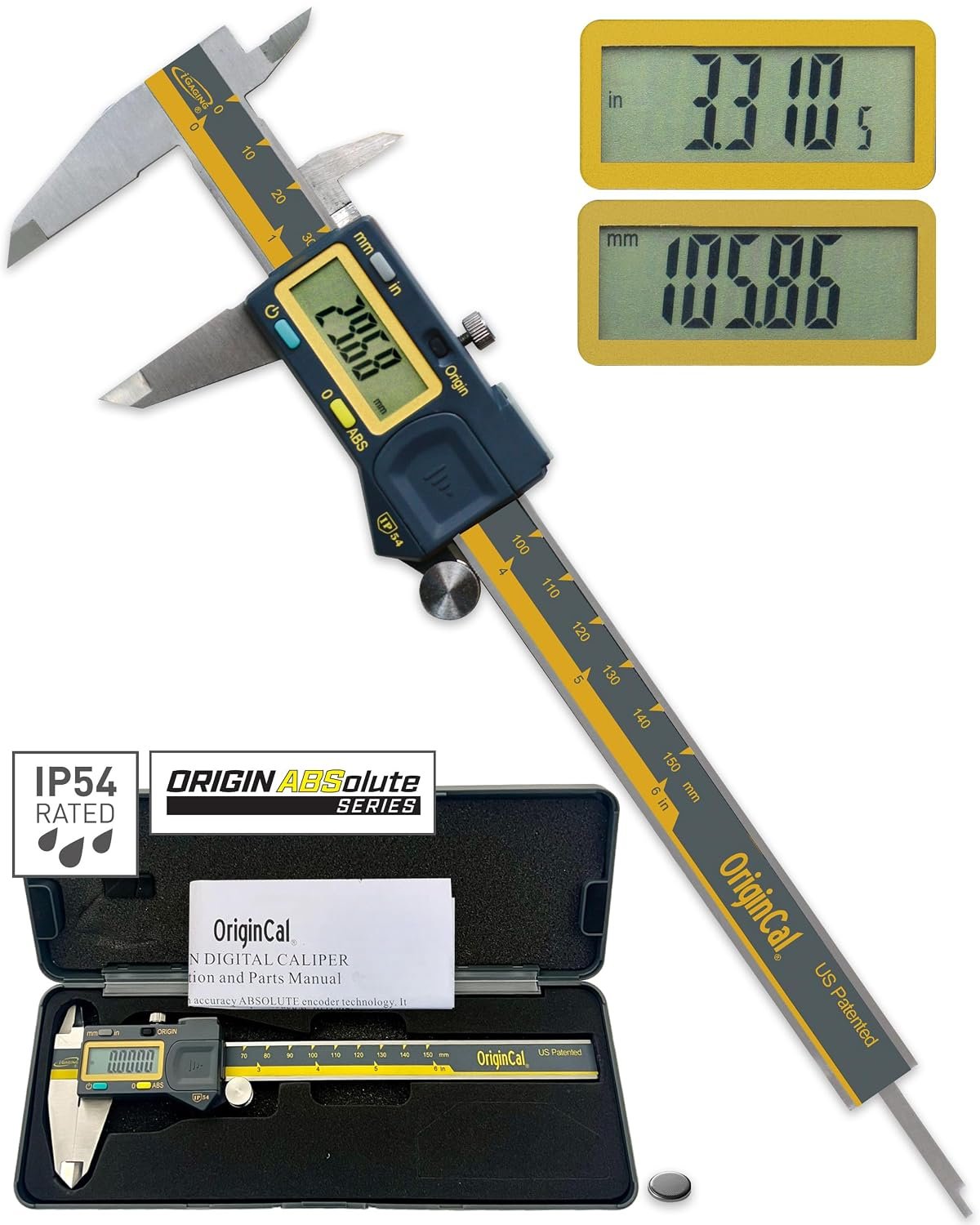

The iGaging Absolute Origin 6″ keeps its zero, shrugs off dust and can log readings over SPC/USB.

Just need a first caliper?

Start with the NEIKO 01407A. Cheap, easy and accurate enough to learn on.

Dusty, oily or messy bench?

The IP54 Clockwise Tools DCLR-0605 is protected on a tight budget, with an RS232 data port.

Hate dead batteries?

A dial caliper like the Mitutoyo 505-742J needs no power at all and lasts decades.

Measuring frames and extrusions?

Step up to the iGaging Absolute Origin 8″ for 200 mm of travel with IP54 and data output.

Is a Mitutoyo caliper really worth it over a budget model?

For many hobbyists a budget caliper is enough, since ±0.05 mm is fine for most 3D prints and enclosures. The Mitutoyo earns its price through what happens over years: the absolute encoder never loses zero, the slide stays smooth and square, battery life is excellent, and readings repeat reliably. If you do machining, press-fits, bearing seats or anything where 0.02 mm matters, or you simply want to stop second-guessing your measurements, it’s worth it. If you only measure occasionally, the iGaging Absolute Origin gets you most of the benefit for much less.

What’s the difference between resolution and accuracy?

Resolution is the smallest increment the display can show, typically 0.0005″ or 0.01 mm. Accuracy is the maximum error between the reading and the true size, which for good 6″ calipers is ±0.001″ (about ±0.02 to 0.03 mm). A caliper can display 0.01 mm steps and still be wrong by 0.03 mm. For tighter work, use a micrometer, and always check your caliper against a known gauge block or the included zero position.

Why does my cheap caliper keep losing zero or eating batteries?

Most budget calipers use an incremental capacitive encoder that is never fully off: the “off” button just blanks the display while the sensor keeps drawing current, so an LR44 or CR2032 can die in weeks. Fast slide movement, low battery voltage or dirt on the scale can also make them skip counts and lose zero. Absolute-encoder calipers like the Mitutoyo ABSOLUTE and iGaging Absolute Origin avoid this, and removing the battery during long storage helps any cheap model.

Can I connect a digital caliper to an Arduino or ESP32?

Yes, and it’s a fun project. Many budget calipers expose a hidden 4-pin port that outputs a synchronous clock and data stream at around 1.5V logic, which you can level-shift and read with an Arduino, ESP32 or Raspberry Pi Pico. Calipers with an official SPC/USB port, like the iGaging Absolute Origin, or an RS232 port, like the Clockwise DCLR-0605, are easier because the manufacturer supplies a cable. It’s ideal for automated QC of printed parts or building a digital readout for a small lathe or mill.

How do I avoid buying a fake Mitutoyo on Amazon?

Counterfeit Mitutoyo calipers are common. Check that the listing says “Visit the Mitutoyo Store” under the title, and be wary of titles like “for Mitu-toyo” or listings from unrelated brand stores that simply use the model number. A genuine 500-196 has a crisp logo, a serial number, and a smooth, tight slide. Prices far below the typical street price are a red flag. Buying through the official Mitutoyo storefront, like the listing we link, is the safest route.
