Stroke Length

How far the rod extends — from 10 mm micro units up to 300 mm+. Buy the shortest stroke that covers your travel; longer strokes cost more and flex under side loads.

Force & Speed

These trade off directly. A high-force actuator moves slowly; a fast one pushes less. Size force to your load plus margin, then accept the speed that comes with it.

Position Feedback

A built-in potentiometer or Hall sensor lets your MCU read the rod’s exact position for closed-loop control. Skip it only if “fully in / fully out” is all you need.

Voltage & Current

Most are 12 V (some 6/24 V). Check the stall current and size your supply 30–50% above it. You’ll drive it with an H-bridge or relay, never a bare GPIO pin.

IP Rating & Build

Outdoors (solar trackers, gates) needs IP54–IP66 sealing and metal gears. Indoor bench and robot builds can save money with lighter, lower-rated units.

When space is truly tight, the Actuonix L12-P is astonishing — a fully self-contained actuator with position feedback that weighs about 28 grams and hides inside a robot finger or model. This 10 mm / 210:1 variant trades speed for precision and holding force, making it perfect for tiny valves, latches, focus mechanisms and miniature animatronics driven directly from an Arduino or the Actuonix LAC board.

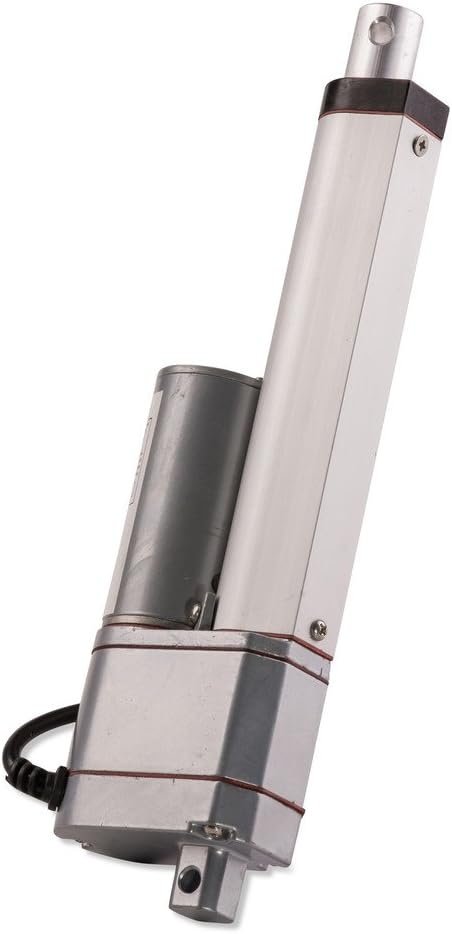

The Firgelli 2-inch feedback actuator hits a sweet spot the Actuonix units skip: real 10 kΩ potentiometer feedback and a useful 35 lb of force, at a mid-range price. That makes closed-loop position control affordable for camera dollies, small robotic joints, model railways and desktop automation. It’s chunkier than a micro actuator but far cheaper for the same feedback capability, and it drives cleanly from any H-bridge.

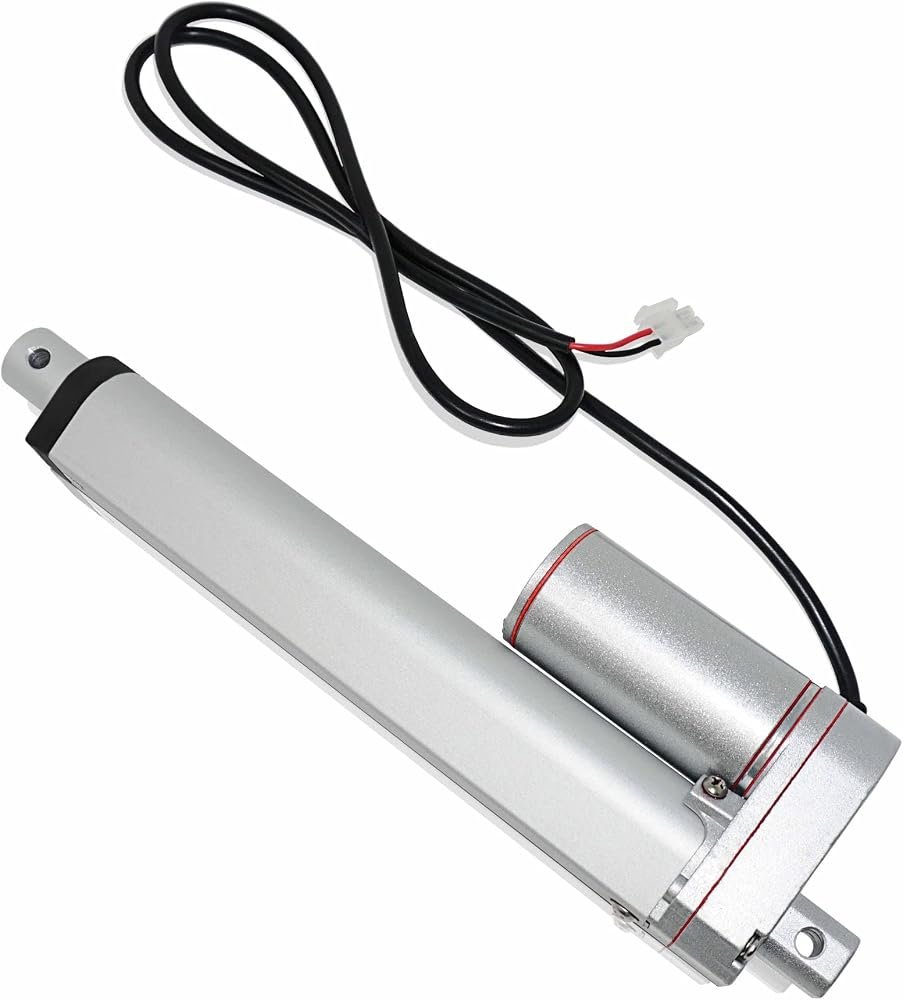

The Progressive Automations PA-14 squeezes a remarkable 150 lb of thrust into a 1-inch-stroke body barely longer than your thumb. When you need real clamping or pushing force but have almost no room — think latches, ejectors, small presses and locking mechanisms — this compact mini is the answer. It’s a plain 2-wire unit with an internal limit switch, so reverse polarity to retract and let it stall at the ends.

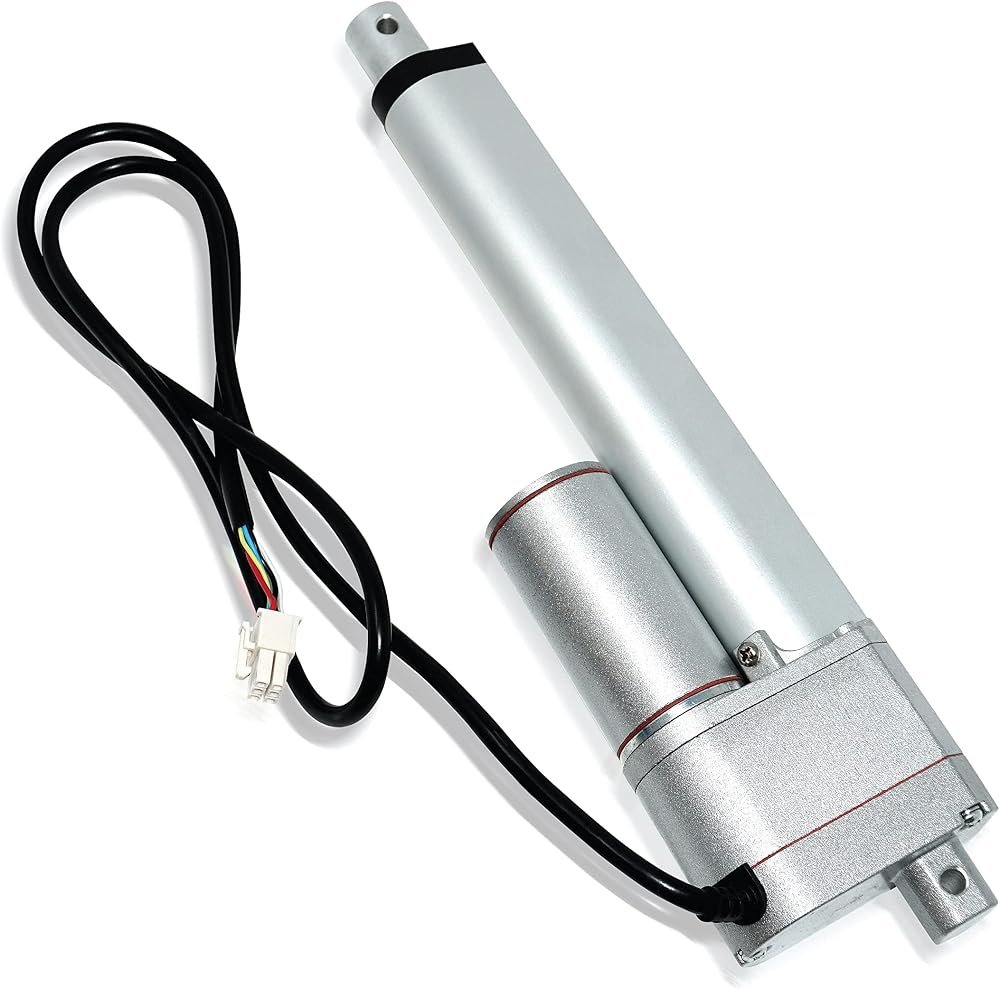

This PA-14P variant pairs a long 10-inch stroke with a built-in potentiometer, so your microcontroller can position it anywhere along its travel — ideal for adjustable desks, tilting panels, long sliders and mid-size robotic arms that need feedback over a big range. At 50 lb it’s tuned more for reach and control than brute force, and its 3-wire feedback line drops straight into an analog input.

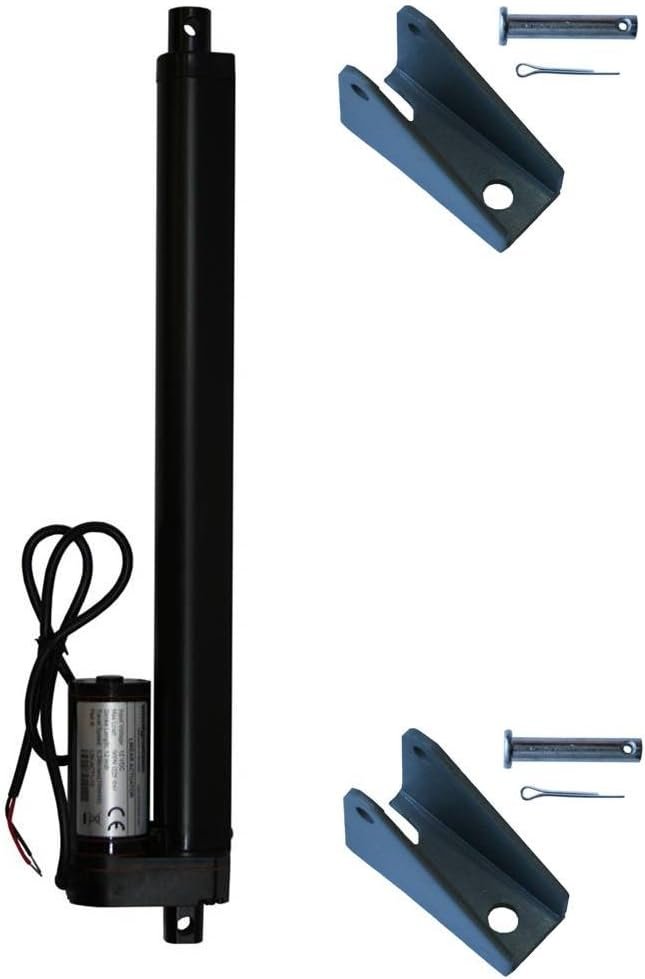

The WindyNation 12-inch is a direct rival to the ECO-WORTHY, with IP65 sealing, pre-lubricated metal gears and 225 lb of thrust — and WindyNation’s ecosystem of matching power supplies, DPDT switches and remote kits makes it especially friendly for a first DIY automation build. If you want to buy the actuator, wiring and controls as one tidy bundle, this is the range to look at.

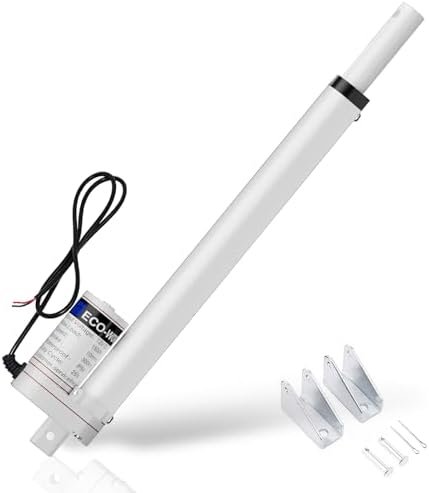

Purpose-built for the outdoors, the ECO-WORTHY solar-tracker actuator combines 330 lb of thrust with a waterproof, dust-sealed body that survives rain, sun and wind. It’s the natural fit for single-axis solar trackers, greenhouse vents, gates and any ESP32/Arduino project that lives outside — driven from an LDR- or RTC-based tracking sketch through a relay module. The extra force headroom keeps it moving even with wind loading on a panel.

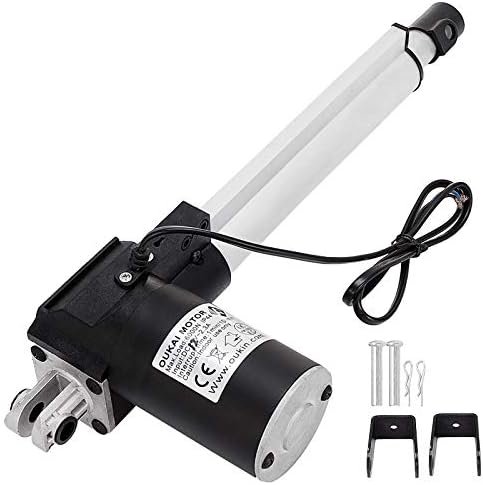

When you need to move something genuinely heavy, the Happybuy 6000 N delivers a massive 1320 lb of thrust from a 6-inch stroke — enough for recliners, adjustable beds, lift tables, heavy lids and trailer ramps. It’s slow by design (high force means low speed), but nothing else here comes close on raw lifting power. Drive it with a heavy-duty relay or high-current H-bridge and a supply that can handle the stall current.

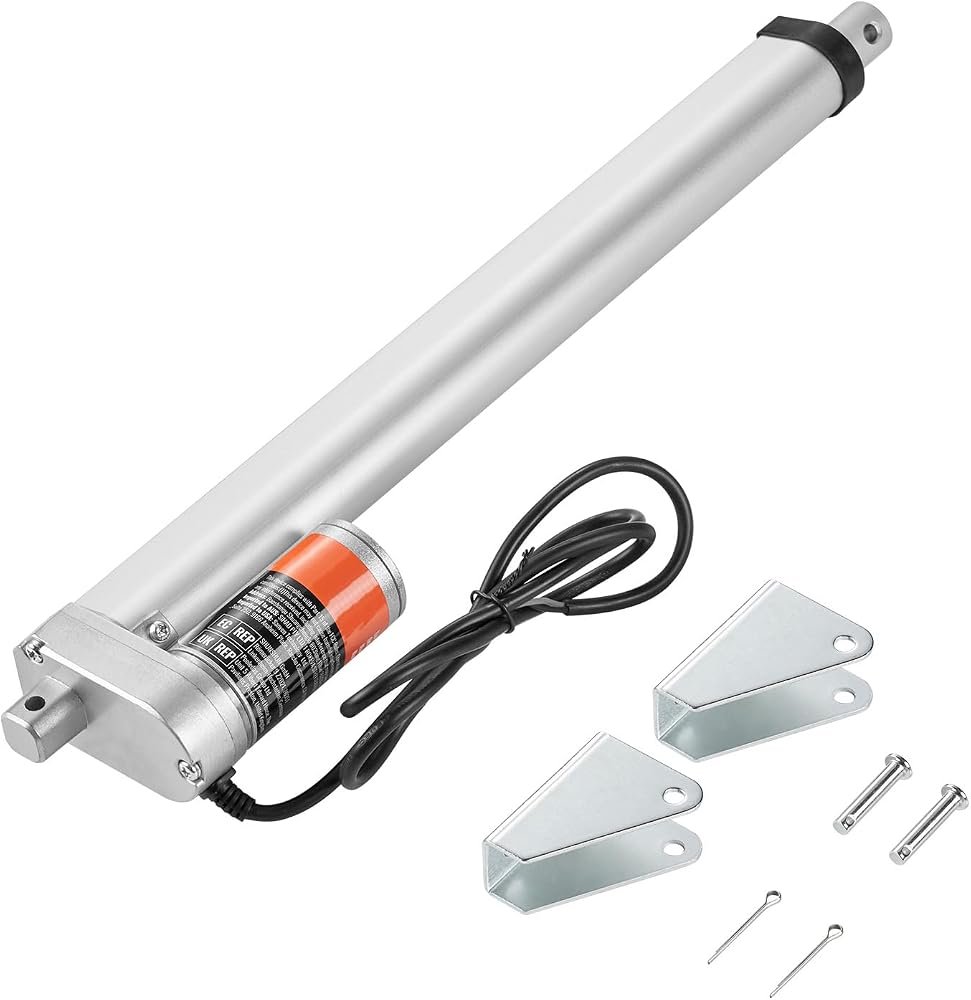

The Happybuy 1500 N 12-inch blends a long 300 mm reach with a solid 330 lb of force and IP54 sealing, making it a versatile heavy-duty option for cabinet doors, hatch lifts, window openers and large automation frames. It sits between the everyday 225 lb rod actuators and the extreme 6000 N lifter — more muscle than the ECO-WORTHY, more reach than the 6-inch Happybuy.

Need precise positioning?

Choose a feedback model — the Actuonix L16-P for small builds or the Firgelli feedback unit on a budget.

Tiny space, tiny load?

The Actuonix L12-P micro fits where nothing else will, with feedback and only ~28 g of weight.

General 12V automation?

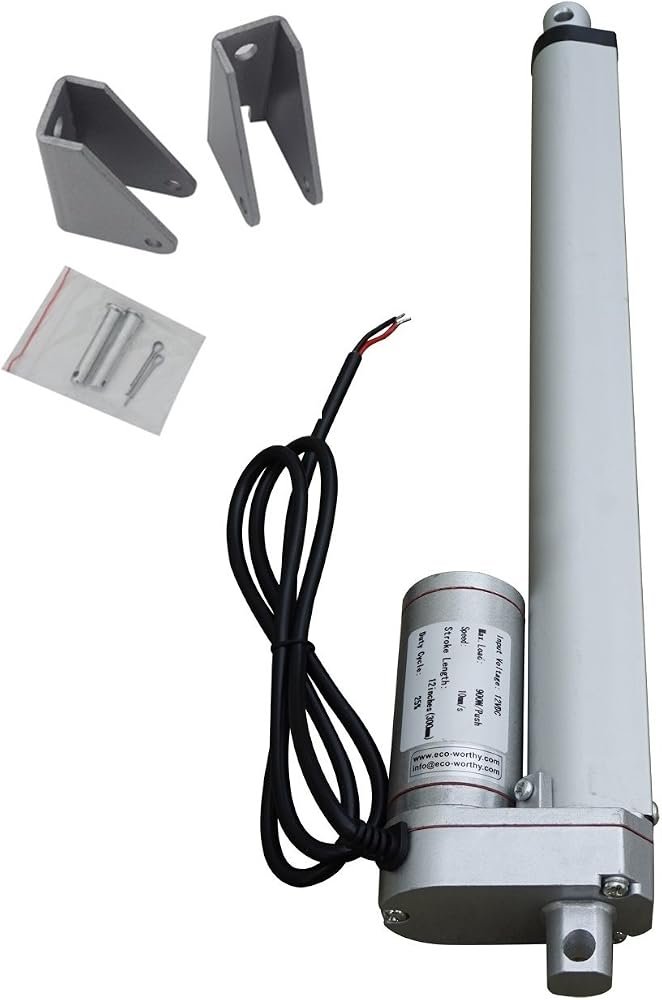

The ECO-WORTHY 12" or WindyNation 12" give 225 lb of reliable push for the least money.

Max force, little room?

The Progressive PA-14 gives 150 lb in a thumb-sized body; the Happybuy 6000N lifts 1320 lb.

Outdoor / solar tracker?

The waterproof ECO-WORTHY solar actuator handles rain and wind with 330 lb of headroom.

Long stroke + strength?

The Happybuy 1500N 12" gives 300 mm of reach and 330 lb for big doors and frames.

How do I control a linear actuator with an Arduino or ESP32?

You can’t drive one directly from a GPIO pin — a microcontroller outputs 5 V at a few milliamps, while an actuator needs 12 V at 1–5 A (more for heavy-duty units). Use a dual-channel relay module for simple full-in/full-out motion, or an H-bridge motor driver (like a BTS7960 or L298N for smaller units) when you want to control speed with PWM. Power the actuator from a separate 12 V supply and share a common ground with your board.

What’s the difference between limit-switch and feedback actuators?

Almost every actuator has internal limit switches that automatically cut power at the ends of travel, so it can only reliably stop “fully in” or “fully out.” A feedback actuator adds a potentiometer or Hall sensor whose voltage tells your microcontroller the rod’s exact position, letting you stop and hold anywhere in the middle with a control loop. If your project only needs two end positions, save money with a limit-switch model; if you need precise mid-travel positioning, buy feedback.

How much force and stroke do I actually need?

Work out the heaviest load the actuator must move, then add roughly 30–50% margin for friction, side loads and startup. For stroke, measure your required travel and pick the next size up — you can always mount it to use only part of the range. Remember that force and speed trade off: if you need both high force and speed, you’ll pay more or need a larger unit.

Can I use a 12V actuator on a solar-powered or battery project?

Yes — 12 V actuators pair naturally with 12 V lead-acid or LiFePO4 battery banks common in solar setups, which is why solar trackers use them. Size your battery and wiring for the actuator’s stall current (not just running current), use an outdoor-rated IP54–IP66 model like the ECO-WORTHY solar unit, and add a fuse. Actuators only draw power while moving, so a tracker that adjusts a few times a day uses very little energy.

Are the cheaper actuators good enough, or should I buy Actuonix?

For general push-pull automation — gates, hatches, lifts, solar trackers — budget rod actuators like ECO-WORTHY, WindyNation and Happybuy are genuinely good and cost a fraction of the price. Premium brands like Actuonix and Progressive Automations earn their price with true position feedback, tighter tolerances, compact packaging and better documentation, which matter for precision robotics and research. Buy budget for brute-force motion; step up to Actuonix or Firgelli when you need accurate, repeatable positioning.
