Native Matter, Not Bridged

Look for a Matter QR code on the device itself. Garage controllers are mains or USB powered, so Matter over Wi-Fi is fine here, and it needs no Thread Border Router. Skip “Matter compatible” kits that only reach Matter through a brand hub.

Opener Compatibility

Simple two-wire wall buttons work with almost any dry-contact relay. Encrypted Security+ 2.0 and 3.0 wall controls often don’t, so either wire the relay into a spare compatible remote or pick the THIRDREALITY kit, which presses your existing remote.

Real Open / Closed Status

A relay only knows it pulsed, not whether the door moved. Insist on a wired reed switch, a tilt sensor or a separate Matter contact sensor so your app shows the true door position and alerts fire correctly.

Power Input for Gates

Gate operators usually offer 12V or 24V accessory power, not a mains outlet. Shelly 1 Gen3 and Gen4 accept 12V DC and 24 to 48V DC, and SONOFF MINI-D accepts AC or DC, so they can live inside the gate’s control box.

Momentary Pulse & Safety

Openers expect a short button press. Set the relay’s auto-off or inching mode to about half a second to one second. Keep photo eyes working, and add a warning light or presence check before any automatic close.

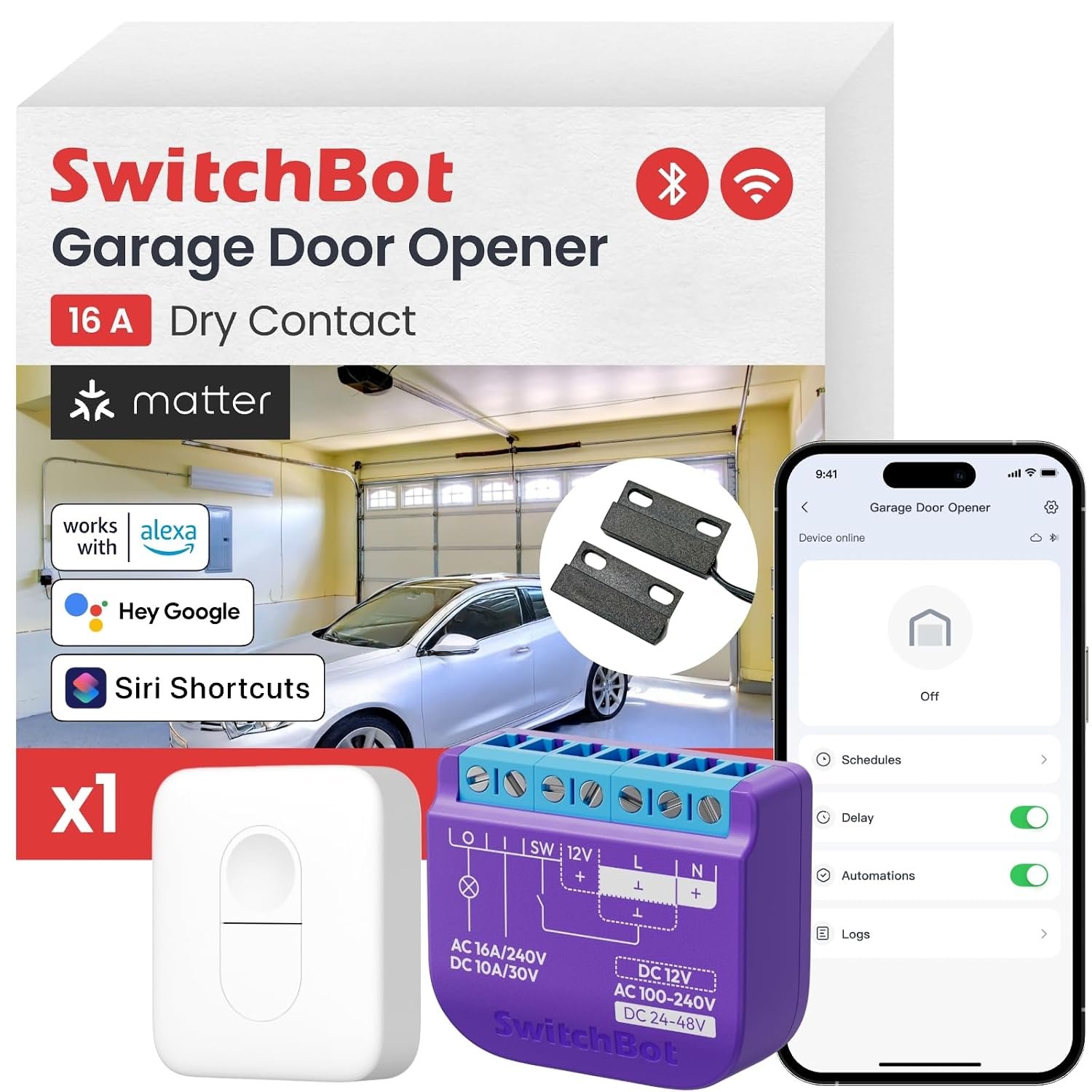

This is the same Matter-certified SwitchBot controller and wired door sensor as pick #1, bundled with a handheld remote. That makes it a better fit for households where not everyone wants to open the garage from a phone or a voice assistant: kids, older relatives, a dog walker, or anyone pulling in without their phone handy. Everything else carries over, including the two-wire install, 200+ supported opener brands, Bluetooth fallback, alerts and auto-close schedules. It shares its review pool with pick #1 (about 78 ratings at 4.1 stars). Buy it only if you actually need the extra remote, otherwise the base kit is the better value.

👉 Check Price on Amazon →

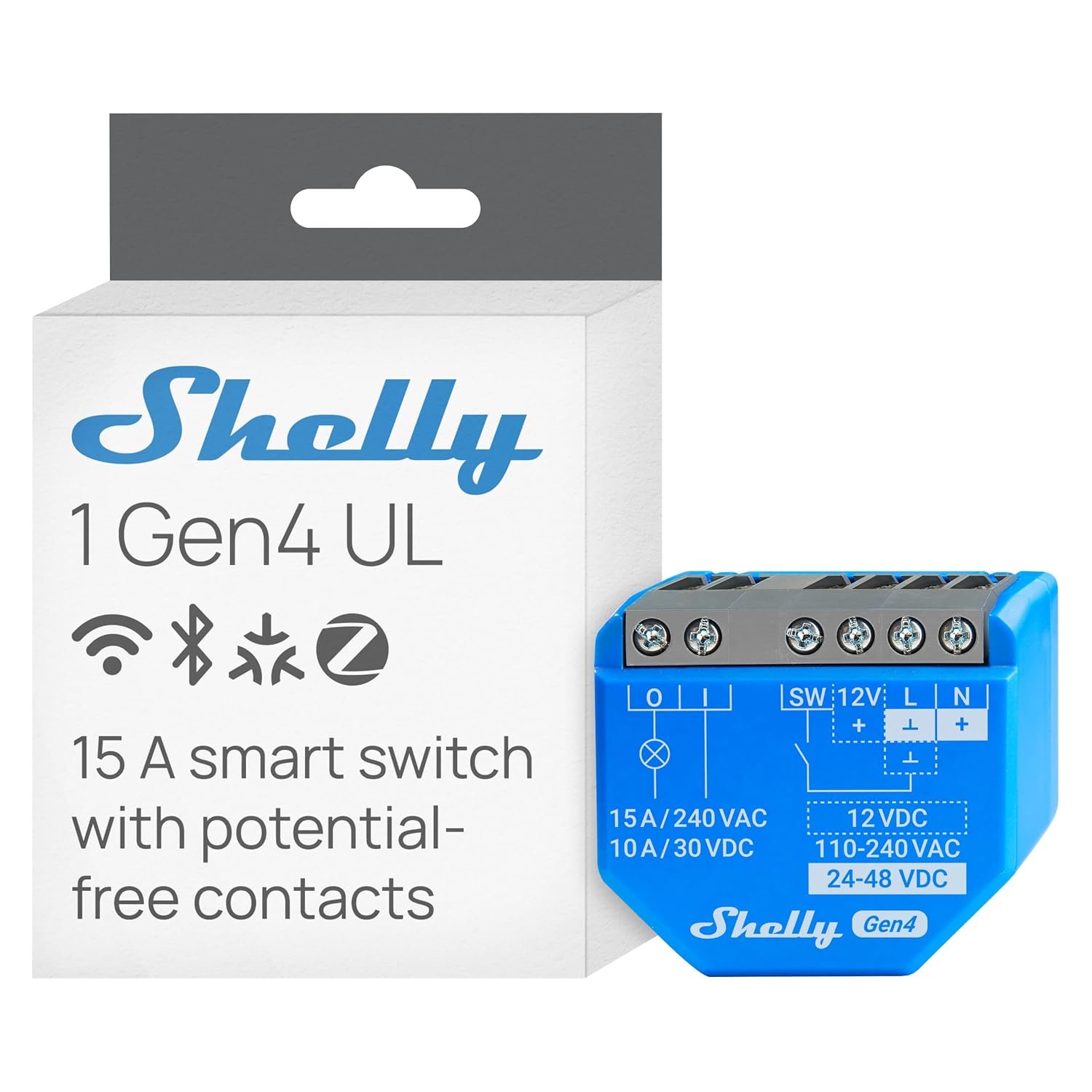

The Shelly 1 Gen4 UL is the relay we would wire into a North American garage. It has true dry contacts, a UL listing for US and Canadian installs, and native Matter over Wi-Fi alongside Zigbee, so it pairs straight into Apple Home, Google Home, Alexa or Home Assistant. It runs from mains or from 12V and 24 to 48V DC, which means it can sit inside a gate operator’s control box as easily as next to a ceiling-mounted opener. Shelly’s local web UI lets you set an auto-off timer for a clean momentary pulse, and the SW input can read a wired reed switch so you get door status from the same module. The UL listing itself is new, with only about 11 ratings so far, though the Gen4 platform has well over a thousand.

👉 Check Price on Amazon →

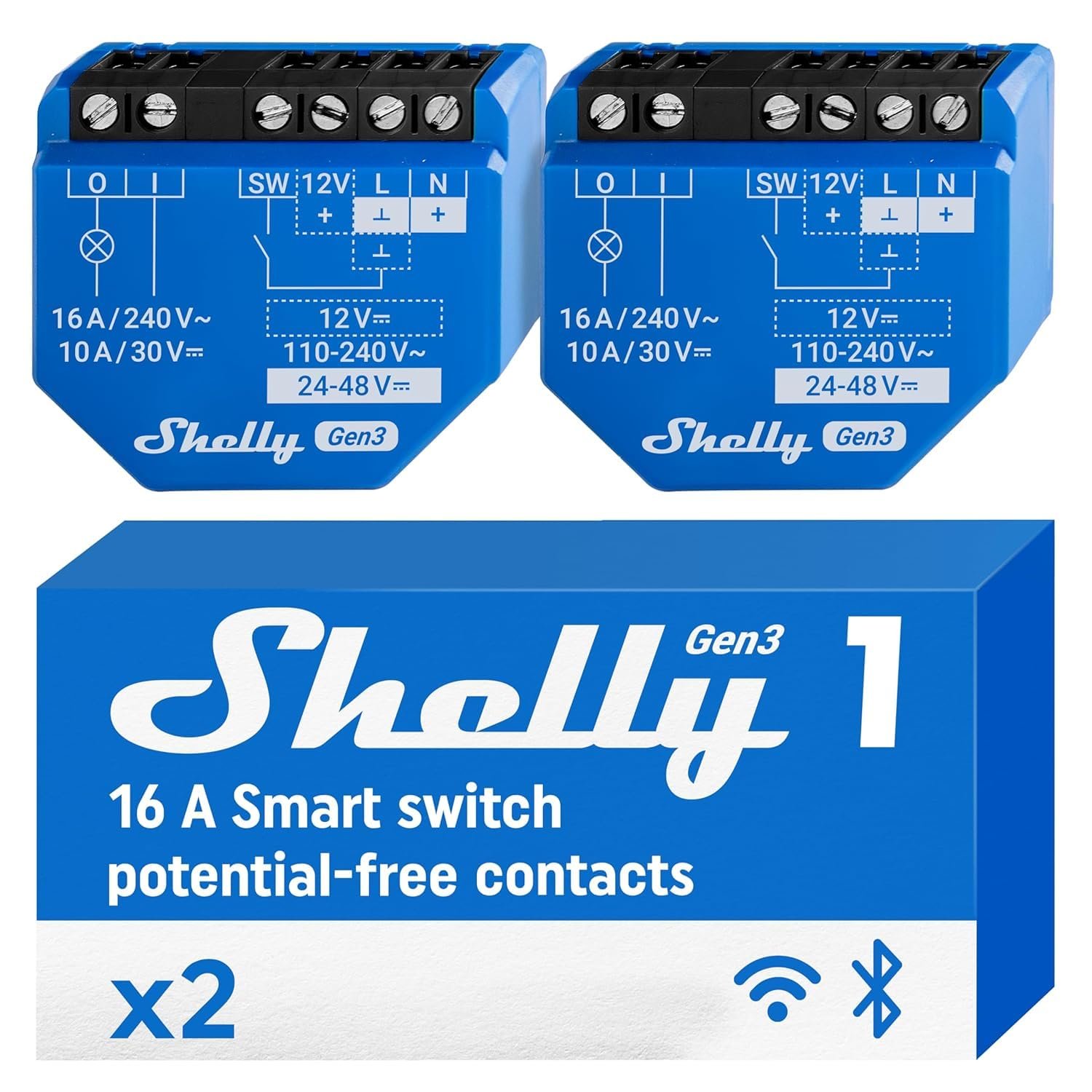

Gate operators from brands like Mighty Mule, LiftMaster and Nice almost always expose a push-button or “open” dry-contact input and a low-voltage accessory supply on the control board. The Shelly 1 Gen3 is a proven way to hook that up to Matter: it is designed to run from 12V DC or 24 to 48V DC, it switches through isolated dry contacts, and it joins Apple Home, Google Home, Alexa and Home Assistant natively over Matter over Wi-Fi. Its listing even calls out garage door control directly. With roughly 1,200 ratings at 4.6 stars it has the deepest review history of any relay here. The one thing to plan for is Wi-Fi range at the end of a driveway, so test signal strength at the gate before you mount it in a metal enclosure.

👉 Check Price on Amazon →

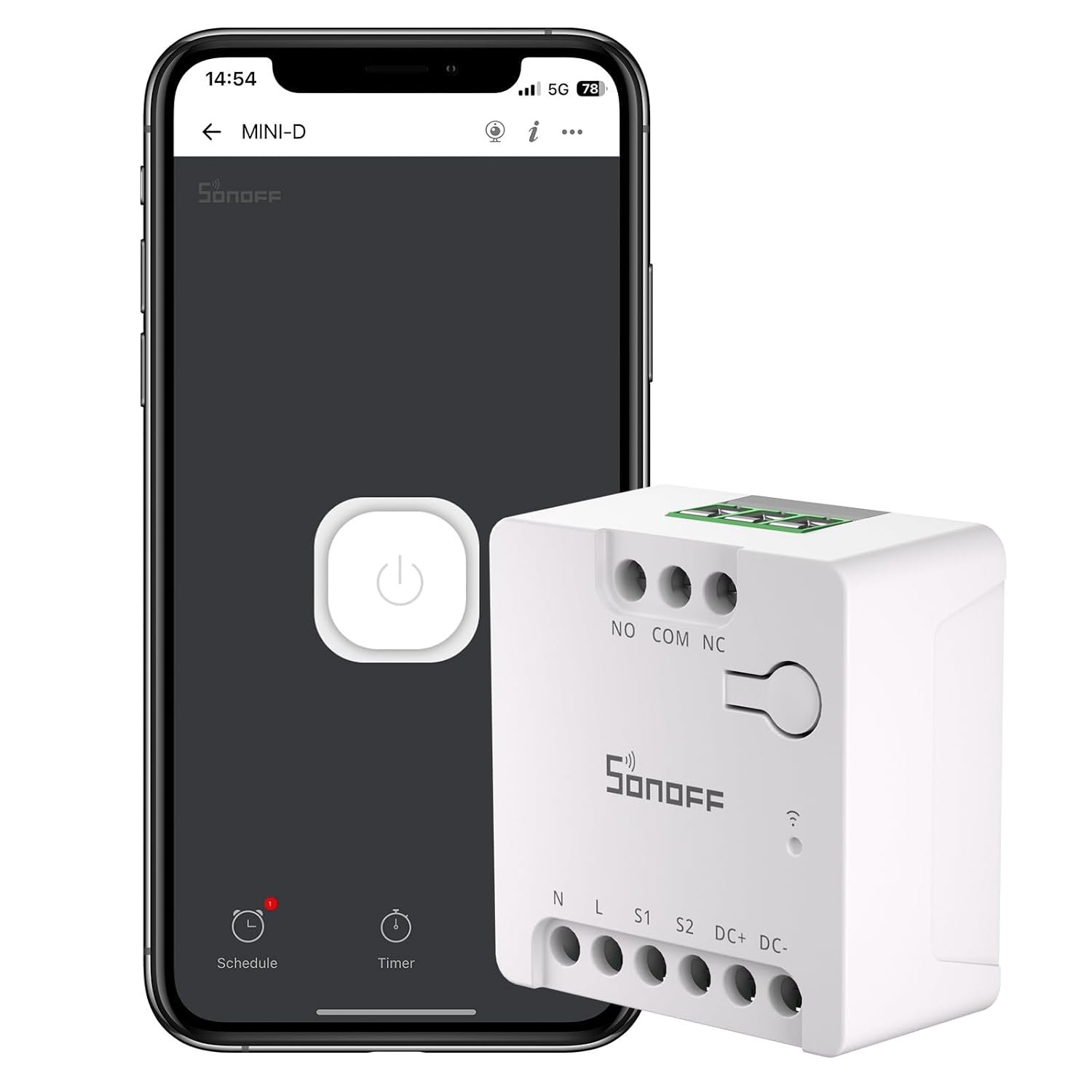

SONOFF built the MINI-D specifically for low-voltage control jobs, and its listing names garage doors, boilers and access control as target uses. The output is a true dry contact with both Normally Open and Normally Closed terminals, which is handy for gate boards that want a normally-closed “stop” loop as well as an open input. It accepts AC or DC input, supports SONOFF’s inching (momentary) mode, and pairs natively over Matter over Wi-Fi, with the eWeLink app as an option. At roughly 1,000 ratings averaging 4.7 stars, it is the best-rated relay in this guide and the least expensive. Note that its contacts are for signals and small DC loads (up to about 8 W), not for switching AC circuits directly.

👉 Check Price on Amazon →

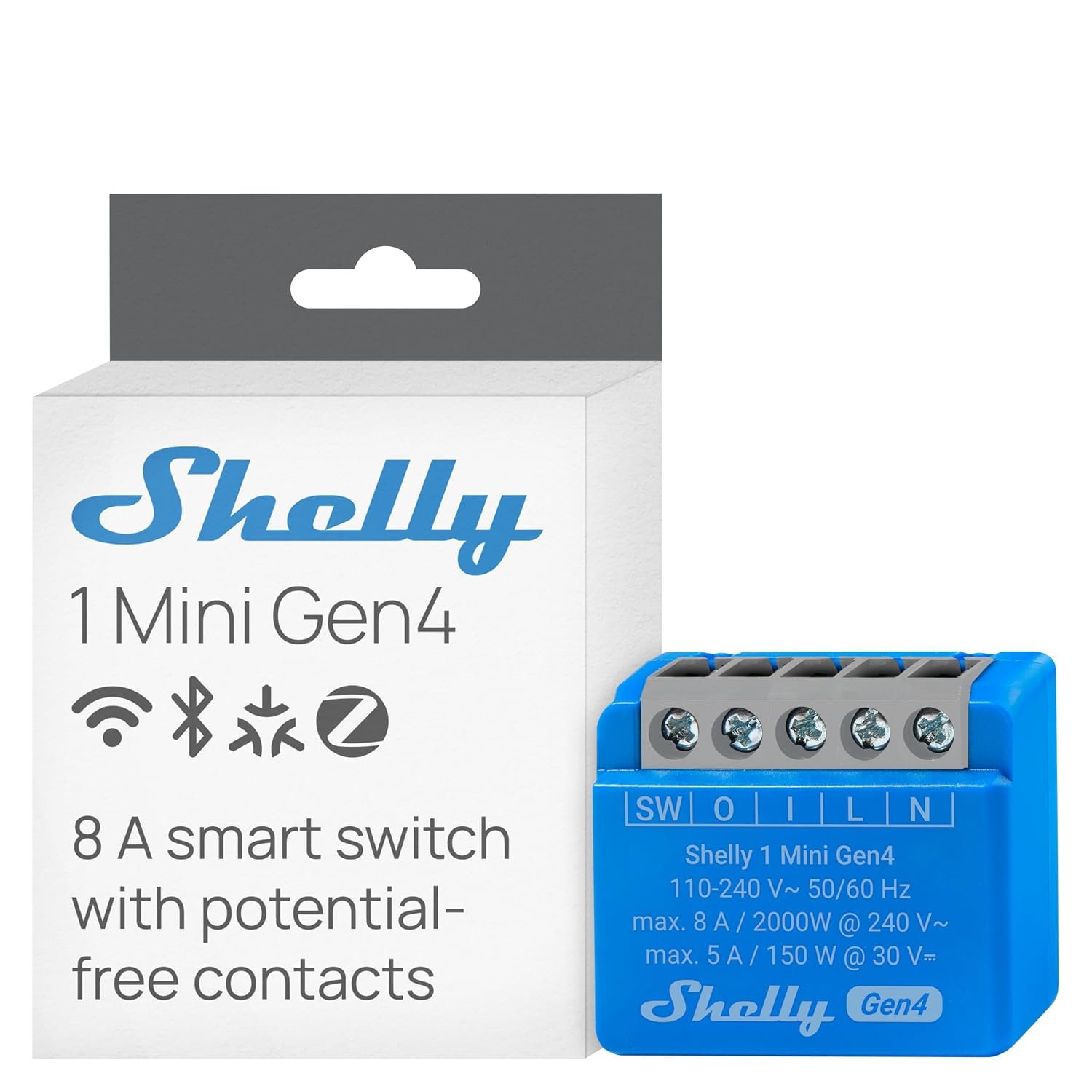

When you want the controller hidden rather than hanging off the ceiling, the Shelly 1 Mini Gen4 is small enough to tuck inside the opener’s light cover or a shallow junction box. Shelly’s listing describes it as having dry contacts and specifically calls out garage door control, and it brings the same Gen4 platform as pick #4: native Matter over Wi-Fi, Zigbee, a faster processor and a local web UI with auto-off timers. It carries about 822 ratings averaging 4.5 stars. The trade-off for the size is power: the listing gives no DC input range, so treat it as a mains-powered module for garages rather than a 12V or 24V gate controller.

👉 Check Price on Amazon →

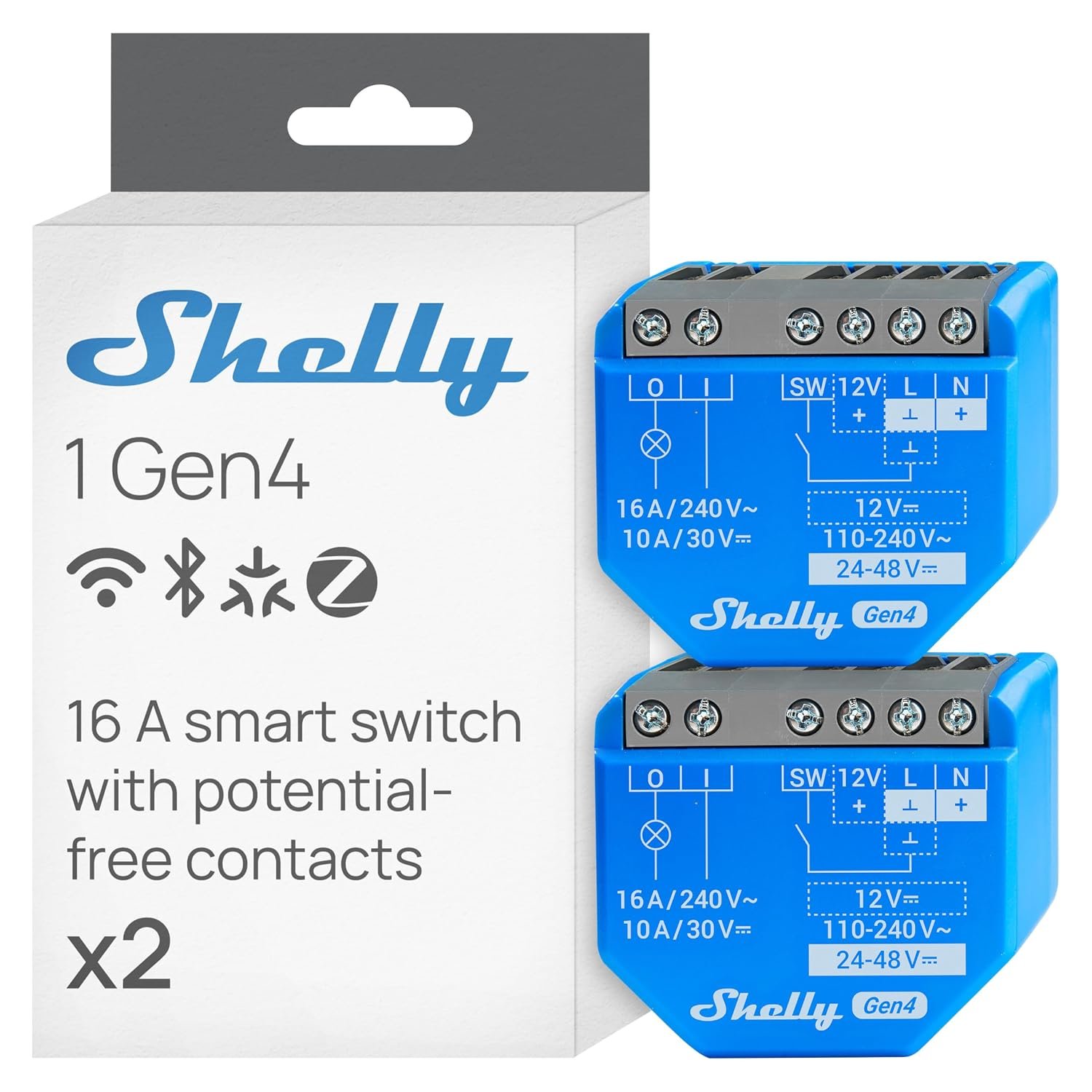

Two garage doors, or a garage plus a driveway gate, is a common setup, and this two-pack of Shelly 1 Gen4 relays covers both for less than buying singles. Each relay has dry contacts, runs from mains or from 12V and 24 to 48V DC, and pairs natively over Matter over Wi-Fi with Zigbee as a bonus radio. Put one on the garage opener’s button terminals and the other inside the gate control box, then group them in a single “arrive home” scene. This is the standard Gen4 rather than the UL version in pick #4, so North American buyers who need a UL-listed device should buy two of pick #4 instead. It has about 1,222 ratings averaging 4.4 stars.

👉 Check Price on Amazon →

Want a complete kit that just works?

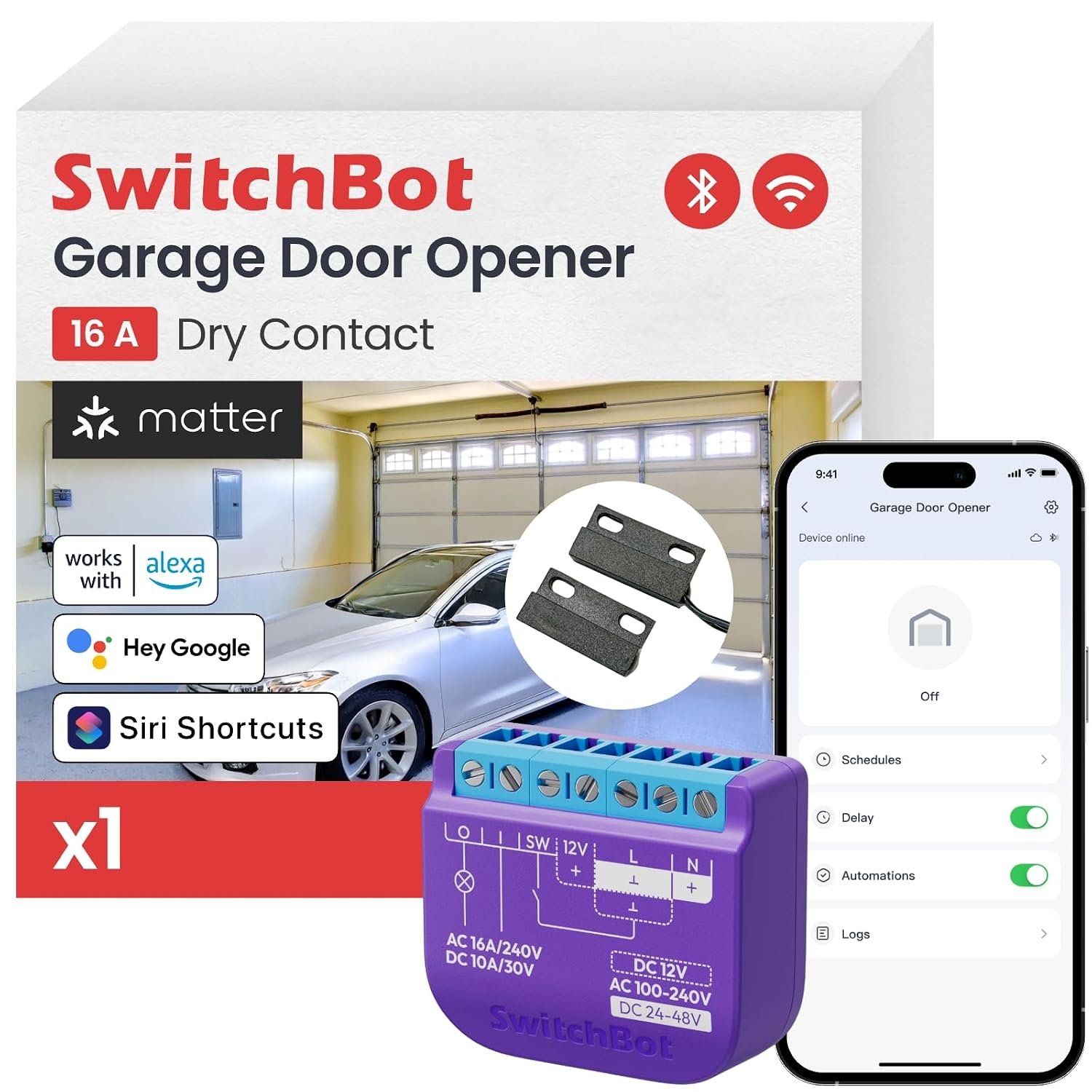

Buy the SwitchBot Wi-Fi Garage Door Opener, or the remote bundle if family members want a button.

Opener ignores third-party relays?

The THIRDREALITY kit presses your existing remote, so encrypted openers aren’t a problem.

Automating a driveway gate?

Use the Shelly 1 Gen3 or Shelly 1 Gen4 UL on the gate’s 12V or 24V supply, plus a reed switch on the gate for status.

Lowest-cost DIY route?

A SONOFF MINI-D in inching mode covers one door or gate for very little.

Two doors, or garage plus gate?

The Shelly 1 Gen4 2-pack handles both from one box.

Want it hidden inside the opener?

The Shelly 1 Mini Gen4 is small enough to tuck under the opener’s light cover.

Do Matter garage door openers need a hub?

Not a brand hub, but you always need a Matter controller, usually something you already own: an Apple TV or HomePod, a Google Nest hub or speaker, an Echo, a SmartThings hub or Home Assistant. Every opener and relay in this guide uses Matter over Wi-Fi, so it needs no Thread Border Router.

Why are there no Matter over Thread garage door openers?

Thread shines for battery devices, but a garage controller sits next to a powered opener, so makers default to cheaper and more familiar Wi-Fi radios. Wi-Fi also gives them a direct path for app features such as notifications and remote access. If you want Thread in the mix, pair a Wi-Fi relay with a battery-powered Matter over Thread contact sensor for door status, which is where Thread’s low power matters most.

Will it show up as a garage door in Apple Home or Google Home?

Usually not yet. Most current products expose a switch (or a momentary relay) plus a contact sensor, because the original Matter releases had no garage door device type. Newer Matter versions add dedicated closure devices, but controller and product support is still rolling out. Home Assistant can combine a relay and a sensor into a proper garage cover entity today, and Apple Home and Google Home can link them with automations.

Will a Matter relay work with my Chamberlain or LiftMaster opener?

Older openers with a simple two-wire doorbell-style wall button work with any dry-contact relay. Many newer Chamberlain and LiftMaster units use an encrypted Security+ 2.0 or 3.0 wall control, and shorting their terminals does nothing. The common fixes are wiring the relay across the button of a spare compatible remote, using the manufacturer’s dry-contact adapter where one exists, or choosing the THIRDREALITY kit, which presses an existing remote for you.

How do I wire a Matter relay to a gate opener safely?

Power the relay from the gate board’s 12V or 24V accessory output (check the board’s current limit), then connect the relay’s dry contacts across the board’s “push button”, “open” or “cycle” input. Set the relay to a short auto-off pulse of about half a second to one second so it behaves like a button press. Leave the gate’s obstruction sensors and safety edges untouched, and add a reed switch or contact sensor on the gate so you can confirm it actually closed. If the board is mains powered or you’re unsure of the terminals, ask an installer.
