Powered vs Bus-Powered

A powered hub has its own adapter and feeds peripherals directly — essential for SSDs, HDDs and heavy setups on a Pi. Bus-powered hubs draw from the Pi and suit light loads: keyboards, mice, flash drives.

USB 3.0 vs 2.0

The Pi 4 and Pi 5 have blue USB 3.0 ports good for 5 Gbps — great for SSD boot. A USB 3.0 hub is worth it there; on a Pi 3 or Zero (USB 2.0 only) any hub tops out at 480 Mbps.

Back-Power Isolation

Some powered hubs push voltage back down the data line into the Pi, bypassing its fuse. Look for hubs that block back-feeding, or add a data-only cable, to keep boot behaviour predictable.

Port Count & Switches

Four ports suit most builds; 7–10 ports help servers, camera rigs and lab benches. Per-port power switches let you reset a stuck device or cut idle draw without unplugging.

Form Factor & Cable

A stackable HAT keeps a Pi Zero tidy; a slim splitter travels well; a desktop brick anchors a workstation. Watch cable length — too short tugs the Pi around your bench.

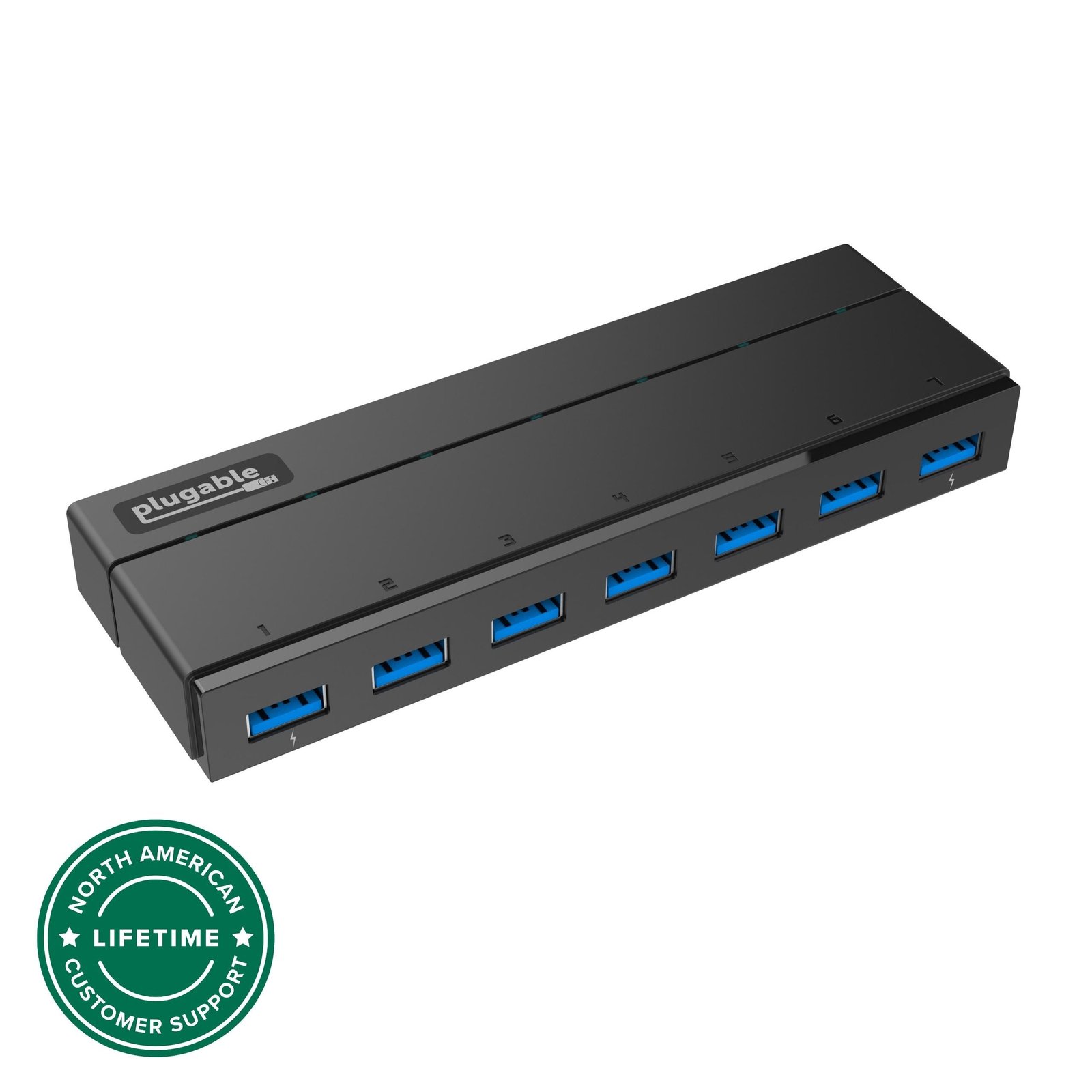

The Plugable USB3-HUB7C is a proper powered desktop hub built around a modern VIA VL817 chipset and a 36 W (12 V/3 A) adapter, with two edge ports delivering up to 1.5 A of BC 1.2 charging. That external power is exactly what a Pi wants when you’re spinning up bus-powered SSDs and hard drives. One honest caveat: Plugable itself notes mixed results pairing this hub with older USB-2.0-era Raspberry Pis, so it’s at its best on a Pi 4 or Pi 5 where the USB 3.0 ports and power headroom shine. Lifetime North-American support is a nice bonus.

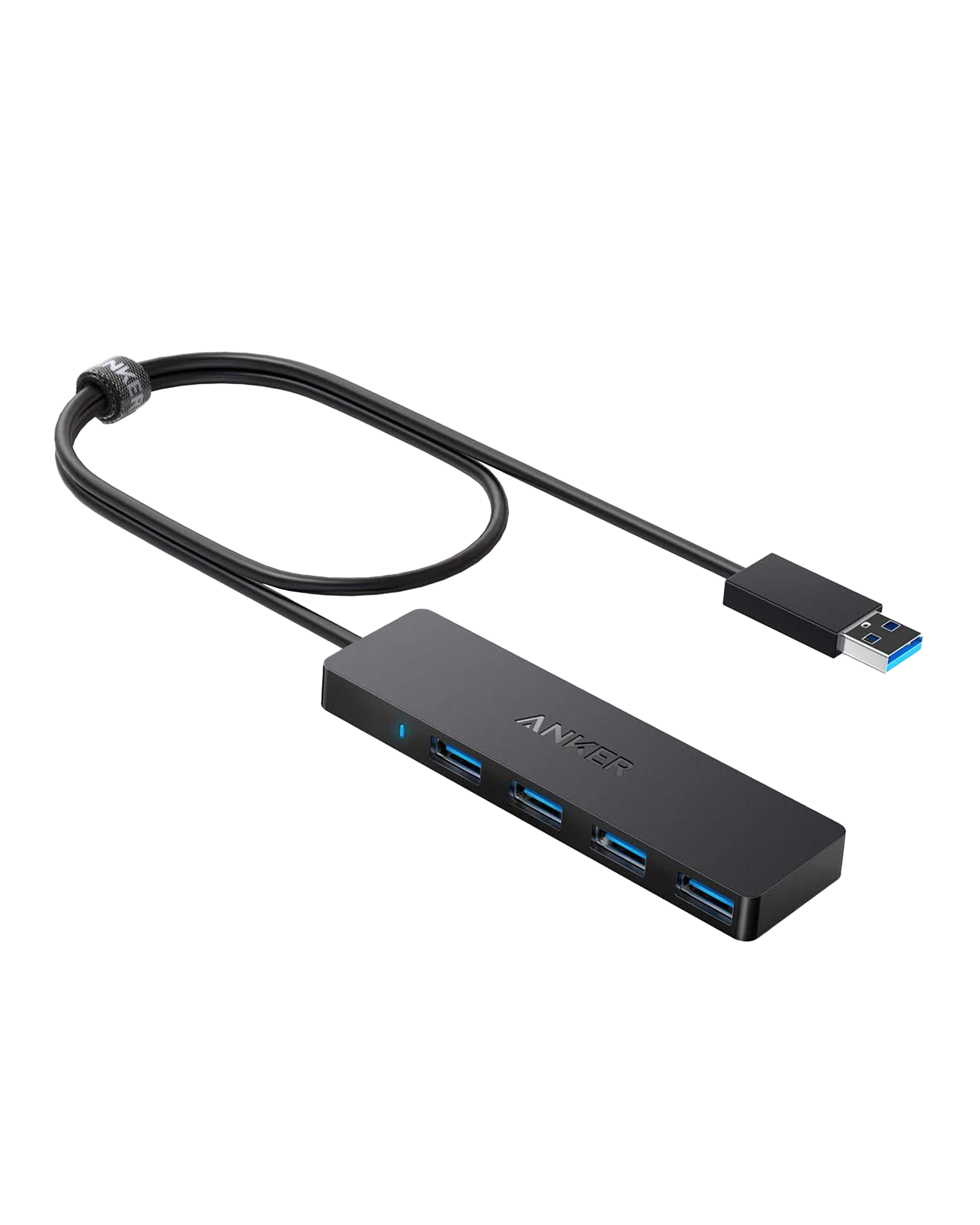

If you just need to hang a keyboard, mouse and a couple of flash drives off a Pi, the Anker A7516 is the classic pick. It’s an aluminium-trimmed, feather-light bus-powered hub with a well-judged 2 ft cable and Anker’s usual build quality and support. It doesn’t charge devices and shouldn’t be asked to run a bus-powered SSD (keep total draw under ~900 mA), but for everyday desktop expansion on a Pi 4/5 it’s tidy, dependable and cheap. A staple on the desks of Pi tinkerers for a reason.

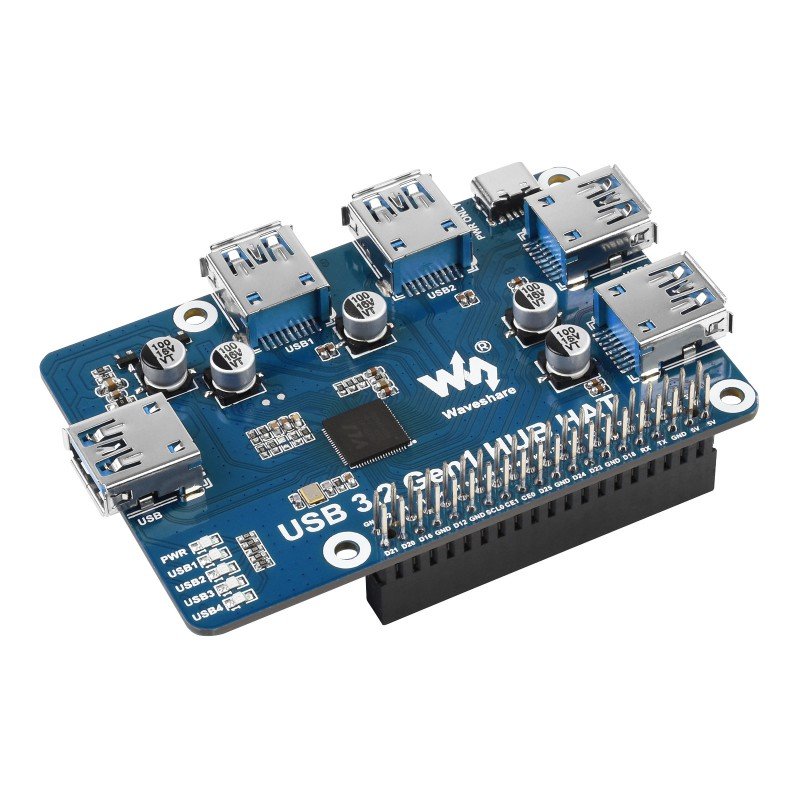

For a clean, embedded build there’s nothing like a purpose-made HAT. The Waveshare USB 3.2 Gen1 HUB HAT adds four USB 3.0 ports that bolt directly onto the Pi’s header — no dangling cable — and it’s driver-free plug-and-play. Crucially it has an onboard USB-C 5 V input so you can feed the ports externally instead of leaning on the Pi. It’s ideal for compact Pi 4/5 projects, robots, kiosks and anything that needs to look tidy in an enclosure. It is a bare board, so it suits makers who are comfortable stacking HATs rather than plug-and-go desktop users.

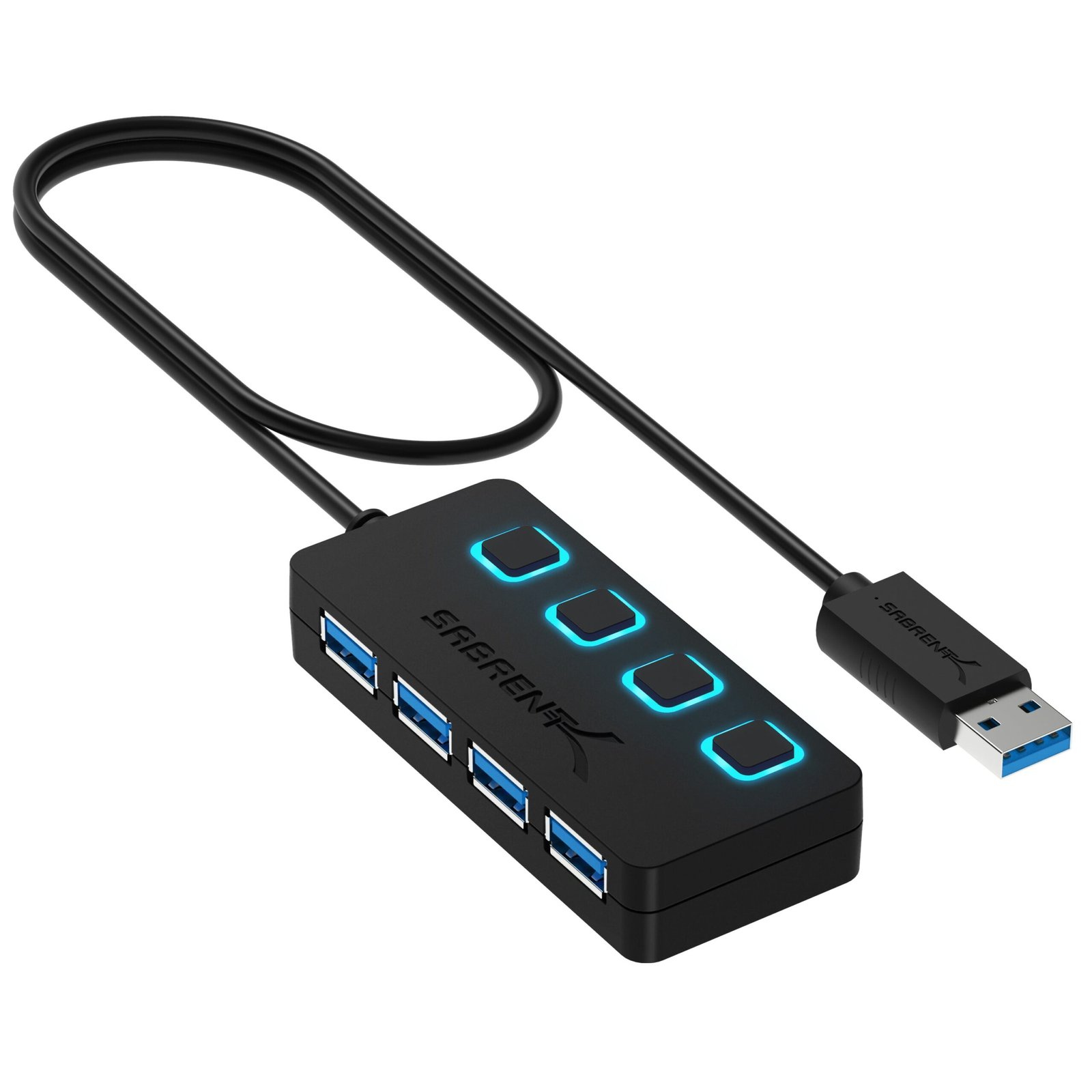

The Sabrent HB-UM43 is the value champion: a slim bus-powered 4-port USB 3.0 hub that still gives you individual LED power switches — a feature you rarely see at this price. With thousands of reviews behind it, it’s a safe, cheap way to add ports to a Pi for light peripherals, and the per-port switches make it handy for toggling a stubborn dongle or SDR without unplugging. It has no adapter, so keep it to keyboards, mice, flash drives and low-draw gadgets rather than SSDs. If you want the same maker’s powered version, step up to the HB-UMP3 above.

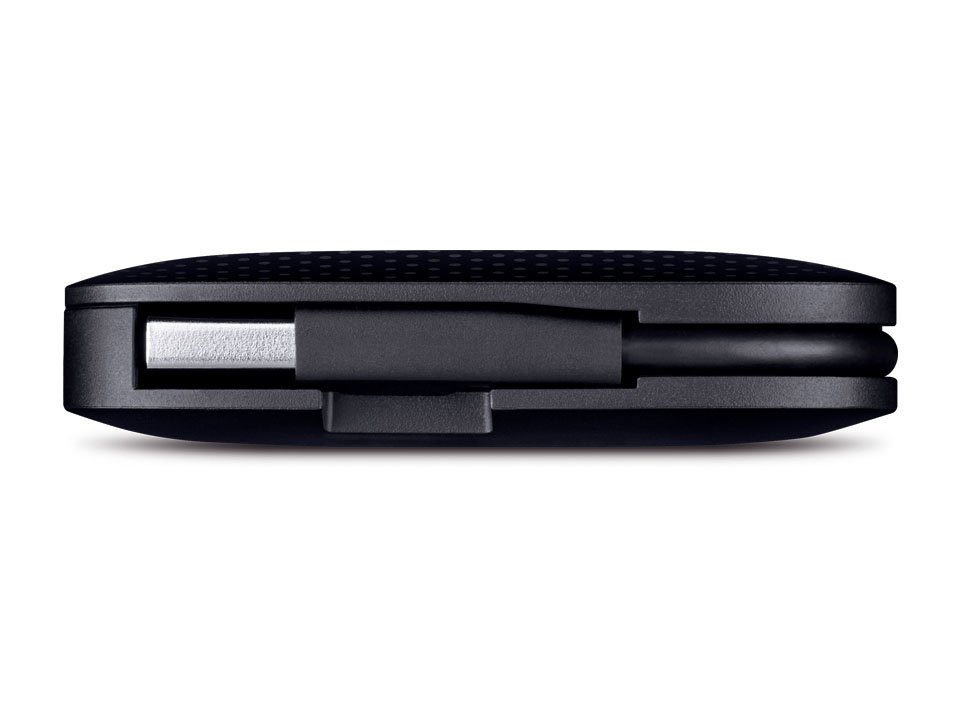

The TP-Link UH400 is the one to throw in a bag with a portable Pi kit. Its foldable built-in cable tucks into the sturdy ABS body so there’s nothing to tangle or snag, and a slot hides the metal connector so it won’t scratch your gear. It’s a straightforward bus-powered 4-port USB 3.0 hub with LED indicators, from a name brand you already trust for networking. There’s no external power and no charging, so it’s a light-duty companion — perfect for on-the-go Pi demos, classroom kits and travel setups rather than a drive-heavy home server.

UGREEN’s ultra-slim 4-port hub is the value sweet spot — barely 0.4 inches thick, well-built and cheap, turning one of the Pi’s ports into four. It’s bus-powered with a short 0.5 ft cable, which keeps it neat next to the board but means it’s happiest with mice, keyboards, flash drives and dongles rather than drives. UGREEN’s reputation for solid, no-drama accessories carries over here: plug it in, it’s recognised instantly on Raspberry Pi OS, and it gets out of the way. A great “just add ports” pick when you don’t need external power.

Sometimes you just want a cheap, powered hub from a brand that’ll be in stock next year. The Amazon Basics 4-Port (HU3641V1) ships with a 5 V/2.5 A adapter, so it can feed peripherals from the wall instead of the Pi — the key thing that separates it from bus-powered budget hubs. There are no per-port switches and the styling is plain, but it does the powered-hub job for a Pi 4/5 at a keen price. A sensible, boring, reliable choice when you want external power without paying for extras you won’t use.

Running a Pi cluster, a camera array or a lab bench full of microcontrollers? The Amazon Basics 10-Port throws sheer connectivity at the problem: ten USB 3.0 ports fed by an external AC adapter so the whole array doesn’t hang off the Pi’s power rail. It’s not fancy and it’s physically large, but for maximum devices per hub it’s hard to beat on price. Spread genuinely heavy loads (multiple SSDs) sensibly rather than assuming ten drives at once — but as a big, powered expander for a Pi 4/5 hub-and-spoke setup, it earns its place.

Running an SSD or hard drive?

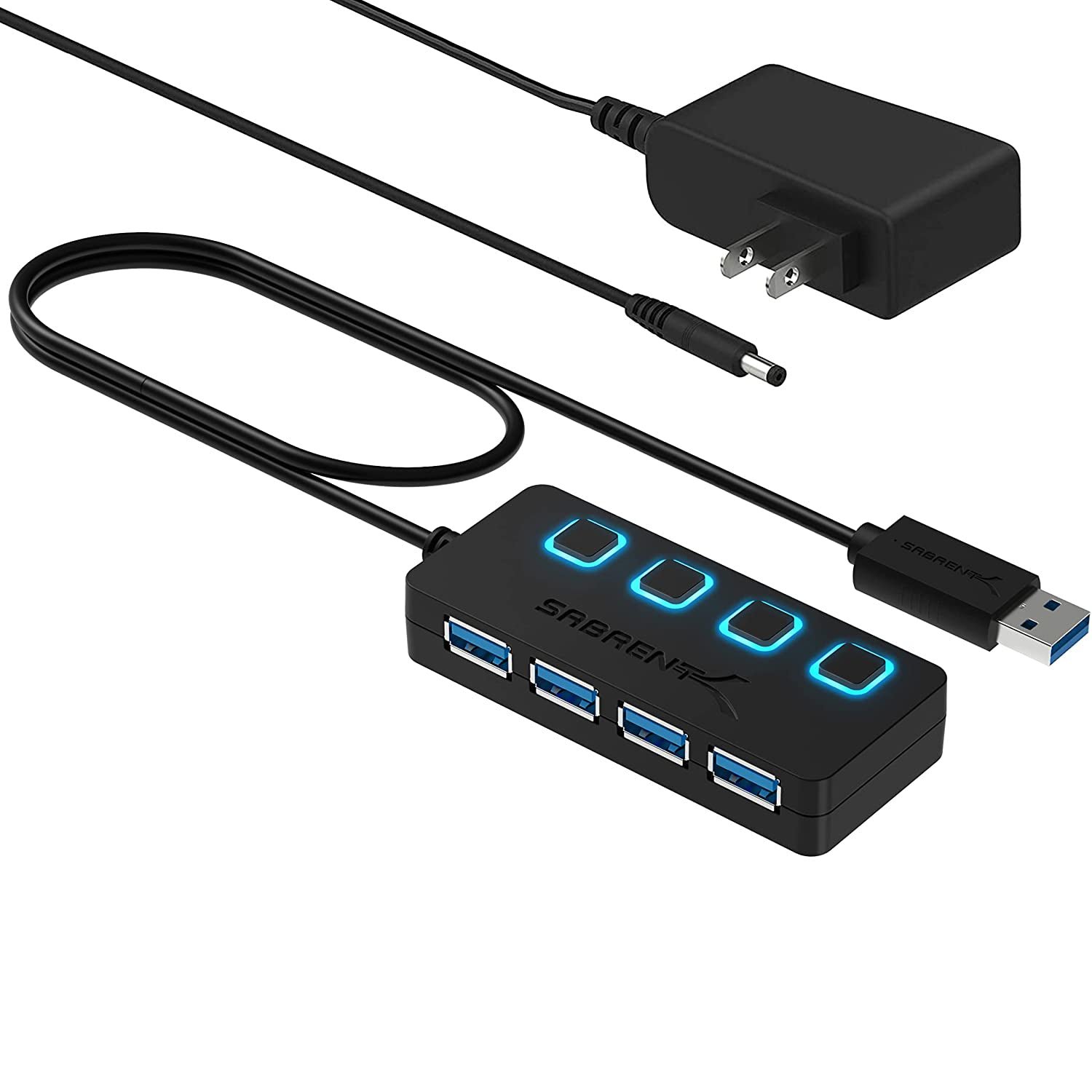

Get a powered hub — the Sabrent HB-UMP3 or Plugable USB3-HUB7C. External power keeps your Pi from browning out under drive spin-up.

Building a Pi workstation/server?

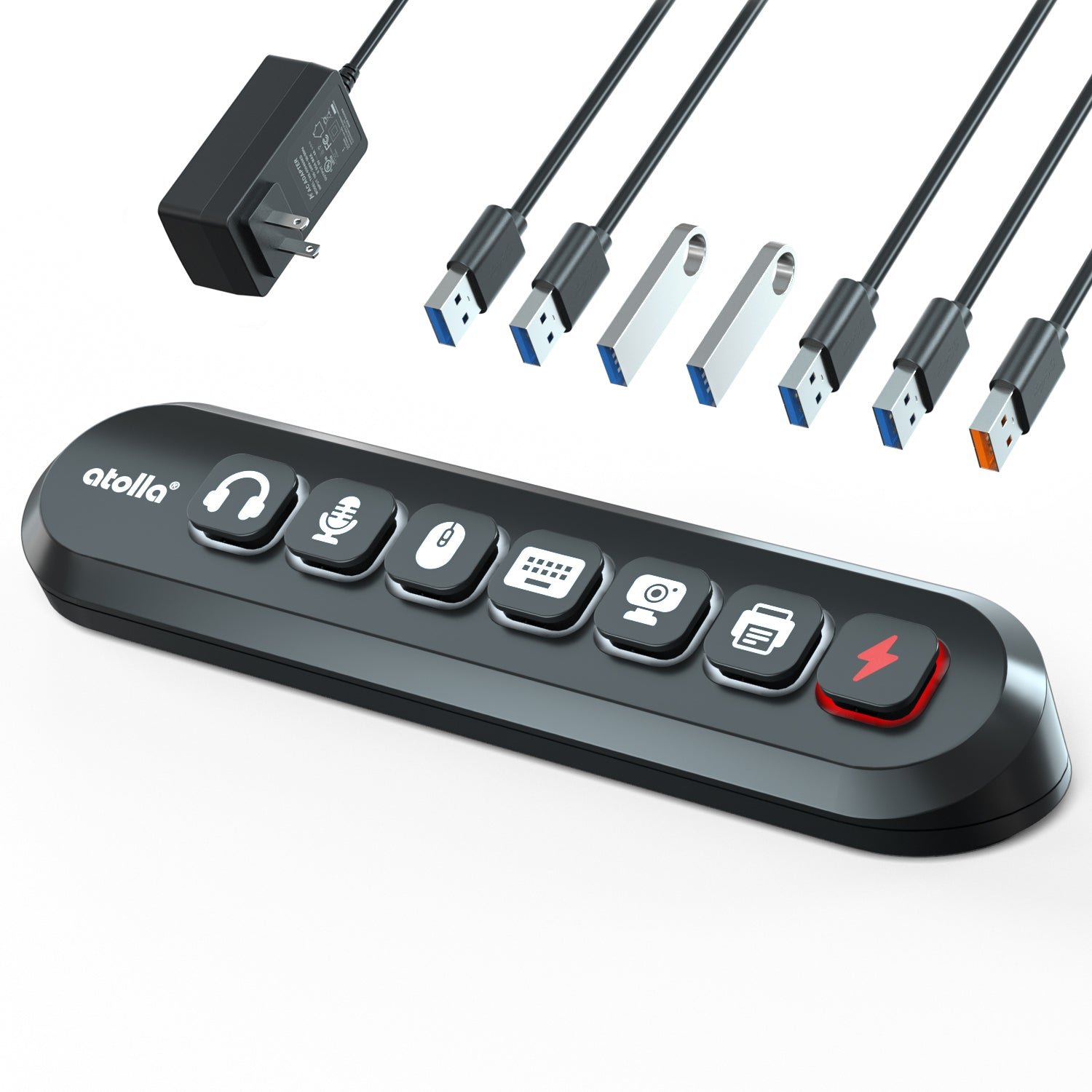

The Atolla KR307 7-Port gives ports, power headroom and lit per-port switches to manage a busy desk.

Just need more ports, lightly?

Grab the Anker A7516, UGREEN Slim or budget Sabrent HB-UM43 for keyboards, mice and flash drives.

Want a tidy embedded build?

The Waveshare USB HUB HAT stacks onto the header with no cables — ideal for robots, kiosks and enclosures.

Travelling with your Pi?

The TP-Link UH400 folds its cable away — nothing to tangle in a bag with a portable Pi kit.

Feeding a cluster or lab bench?

The Amazon Basics 10-Port powered hub connects a whole array of devices from one adapter.

Do I need a powered USB hub for my Raspberry Pi?

It depends on what you’re plugging in. For a keyboard, mouse and a few flash drives, a bus-powered hub is fine. But the Pi shares a limited USB power budget (the Pi 4 caps total downstream current around 1.2 A), so the moment you add an SSD, a mechanical hard drive, a powered mic or many devices at once, you should use a powered (self-powered) hub with its own adapter. It feeds your peripherals directly and stops the under-voltage warnings and random disconnects that plague overloaded setups.

Will a USB 3.0 hub work on the Raspberry Pi 4 and Pi 5?

Yes. The Pi 4 and Pi 5 each have two blue USB 3.0 ports that support up to 5 Gbps, so a USB 3.0 hub plugged into a blue port gives you fast expansion — great for SSD boot drives. All the hubs here are backward-compatible, so on a Pi 3, Pi Zero or the Pi’s black USB 2.0 ports they’ll still work, just at USB 2.0 (480 Mbps) speeds. For the fastest storage, plug your hub (and drive) into a blue USB 3.0 port.

What is USB “back-powering” and should I worry about it?

Back-powering (or back-feeding) is when a powered hub sends voltage up the data cable into the Pi’s USB port. On some Pi models this can partially power the board through a path that bypasses its input fuse, leading to odd boot behaviour or making it hard to fully power-cycle the Pi. Good-quality hubs block this. If you hit strange symptoms, a data-only USB cable (power lines removed) between the hub and the Pi is a reliable fix, and it’s why many people prefer a hub they can also switch off at the port.

Can I boot my Raspberry Pi from an SSD connected to a hub?

Usually yes on a Pi 4/5, but it’s best to connect the boot SSD to a powered hub (or directly to a blue USB 3.0 port with a good adapter). SSDs draw a surge of current at spin-up that can trip an unpowered setup mid-boot. A powered hub like the Sabrent HB-UMP3 or Plugable HUB7C supplies that current from its own adapter, giving a far more reliable USB-boot experience. Make sure your Pi’s firmware is up to date and USB boot is enabled.

How many ports do I actually need, and does a hub slow things down?

Four ports cover most Pi projects; step up to 7–10 for servers, camera rigs, clusters or a lab bench. Remember a hub multiplies connections, not bandwidth — every device shares the single upstream link to the Pi. That’s rarely an issue for keyboards, mice and dongles, but if you run several fast SSDs at once through one hub, they’ll share that 5 Gbps pipe. For maximum throughput on two drives, split them across the Pi’s two separate USB 3.0 controllers rather than one hub.
